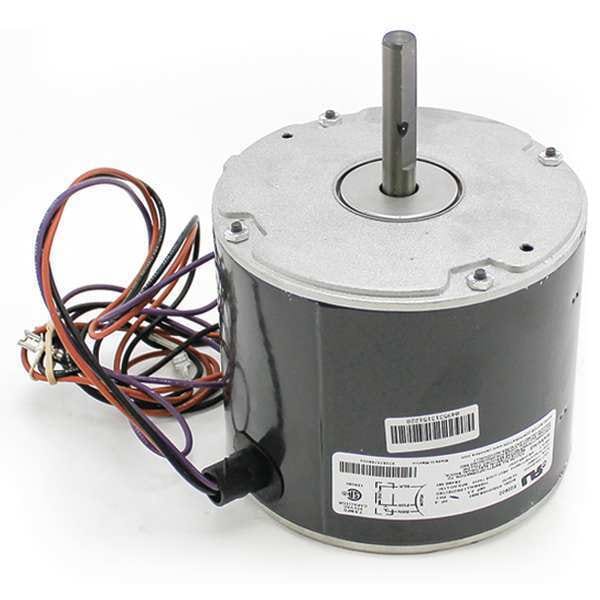

Trane Condenser Fan Motor, 2/5 hp MOT10340 - main

Condenser Fan Motor, 2/5 hp

  • Mfr # MOT10340

  • Zoro # G2492126

product price:  $404.99
/ea
Free Shipping & Returns

Key Features

Voltage
200-230V AC
Shaft Dia.
1/2 in
HP
1/3 hp
Ins. Class
B; F
Motor Shaft Rotation
CW/CCW
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
MOT10340
Zoro #
G2492126
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
4 in
Overall Length
8 1/8 in
Shaft Diameter
1/2 in
Frame Size
48Y

Details

Item
Motor, 2/5 HP, 208-230V, 60/50 Hz, 1115/950 rpm
Voltage
200-230V AC
HP
1/3 hp
Ins. Class
B; F
Motor Shaft Rotation
CW/CCW
No. of Speeds
2
Motor Bearings
Sleeve
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
Permanent Split Capacitor
Phase
Single
Full Load Amps
2.5 A
Voltage Compatibility
200V AC, 230V AC
Frame
48
Motor Service Factor
1
Nameplate RPM
1120
RPM Range
1,101-1,200
Motor Mounting Position
Vertical Shaft Down
Weight
13.5 lb
Usable @ 200V
Usable at 200V
Max. Ambient Temp.
149 Degrees F
Insulation Class
F
Number of Speeds
2
Compatible Brand
Trane
Capacitor Required
Capacitor Not Included
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Mounting Position
Vertical Shaft Down
Full Load Current @ 60 Hz
2.5 A
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
65 Degrees C
Bearing Type
Sleeve

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 2/5 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 2, Voltage 208-230/200V AC, Full Load Amps 2.5 A, 48Y Frame, Usable @ 200V Usable at 200V, Motor Service Factor 1, Ins. Class F, Max. Ambient Temp. 65 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Vertical Shaft Down
