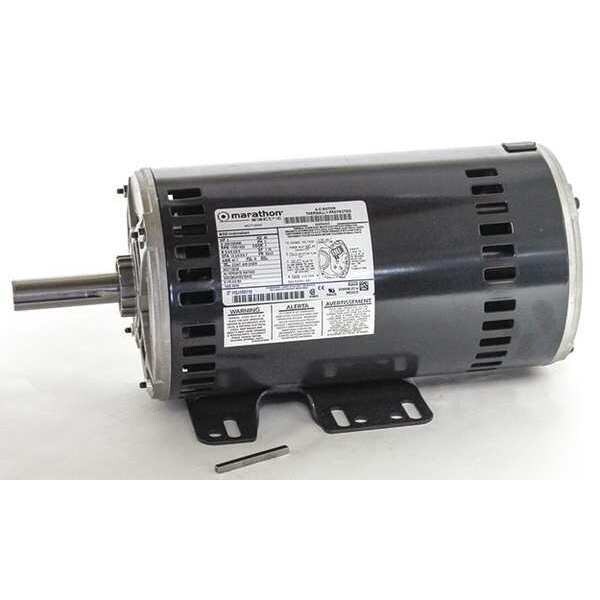

Condenser Fan Motor, 3 hp

  • Mfr # MOT12034
  • Zoro # G2492080
product price:
$
2,454.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC, 460V AC
Ins. Class
B
Motor Design
Three-Phase
Phase
Three
Full Load Amps
9.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT12034
Zoro #
G2492080
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
15 13/16 in
Shaft Dia.
7/8 in
Shaft Diameter
7/8 in
Shaft Length
2 3/4 in
Frame Size
56HZ
Wire Rope Length
15 13/16 in
Length
15 13/16 in

Details

Item
Motor, 3 HP, 208-230/460V, 1725 rpm
Voltage
208V AC to 230V AC, 460V AC
Ins. Class
B
Motor Design
Three-Phase
Phase
Three
Full Load Amps
9.4 A
Motor Bearings
Ball
HP
3 hp
Motor Enclosure Design
Open Drip Proof
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Service Factor
1.15
Nameplate RPM
1,725/1,425
Frame
56HZ
Full Load Amps @ 50Hz
9.4 A
Max. Ambient Temp.
104 Degrees F
HP @ 50Hz
3 hp
Nominal Efficiency
83.6 %
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 208V
Usable at 208V
Voltage @ 50Hz
208-230
Service Factor @ 50Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
208-230V AC
Nameplate Service Factor @ 50 Hz
1.15
Full Load Current @ 60 Hz
9.4-9.2/4.6 A
Nameplate Horsepower @ 50 Hz
3 hp
Product Type
Condenser Fan Motor
Mounting Position
Horizontal
Compatible Brand
Trane
Duty
Continuous
Full Load Current @ 50 Hz
9.4 A
Capacitor Required
Capacitor Not Required
Bearing Type
Ball

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,725/1,425 RPM, Voltage 208-230/460V AC, Full Load Amps 9.4-9.2/4.6 A, 56HZ Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Position Horizontal
