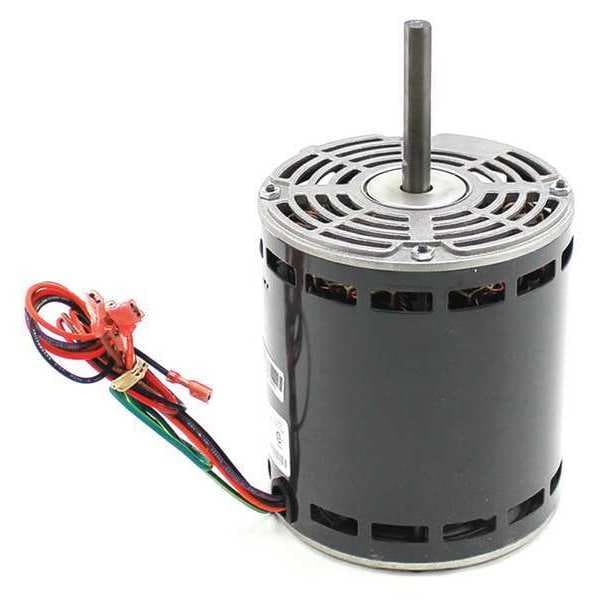

Trane Fan and Blower Motor, 1 hp MOT10358 - main

Fan and Blower Motor, 1 hp

  • Mfr # MOT10358

  • Zoro # G2492117

product price:  $718.99
/ea
Free Shipping & Returns

Key Features

Voltage
460V AC
Overall Length
9 5/16 in
Shaft Dia.
1/2 in
Motor Enclosure Design
Open Drip Proof
Frame
48
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
MOT10358
Zoro #
G2492117
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
9 5/16 in
Shaft Dia.
1/2 in
Shaft Length
3 in
Frame Size
48Y
Shaft Diameter
1/2 in

Details

Item
Motor, 1 HP, 460/380-415V, 2 Speed, CW
Voltage
460V AC
Motor Enclosure Design
Open Drip Proof
Frame
48
Voltage Compatibility
460V AC
Full Load Amps
3.2 A
Motor Service Factor
1
Motor Shaft Rotation
CCWSE
RPM Range
1,001-1,100
Motor Mounting Type
Belly Band
Nameplate RPM
1075
Ins. Class
B
HP
1 hp
Motor Bearings
Ball
Phase
Single
No. of Speeds
2
Motor Design
Permanent Split Capacitor
Max. Ambient Temp.
113 Degrees F
Weight
14.2 lb
Number of Speeds
2
Product Type
Fan and Blower Motor
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
3.2 A
Motor Enclosure Type
Open Drip Proof
Capacitor Required
Capacitor Not Included
Insulation Class
B
Compatible Brand
Trane
Ambient Temperature - Maximum
45 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 460V AC, Full Load Amps 3.2 A, 48Y Frame, Motor Service Factor 1, Ins. Class B, Max. Ambient Temp. 45 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Belly Band
