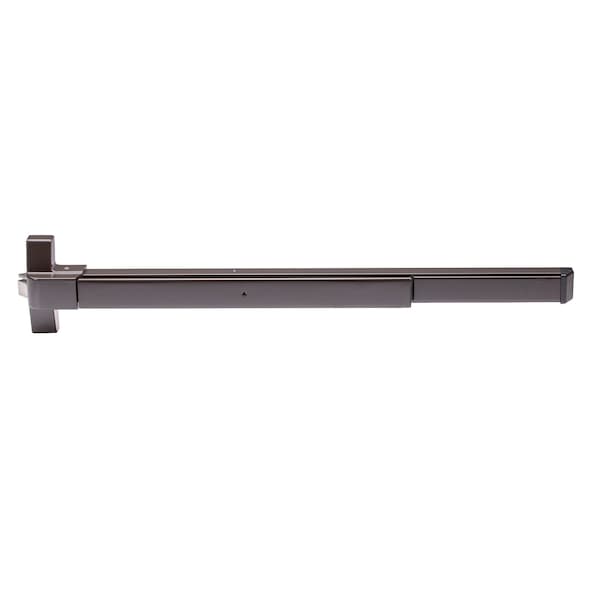

VR531 Series Duronodic Grade 1 Commercial 36 in. Surface Vertical Rod Panic Exit Device

The Trans-Atlantic VR531 series "Vertical Rod" exit device is suitable for commercial and industrial applications where heavy duty usage is anticipated such as office buildings, retail spaces and hotels. Moreover, it fits with doors up to 36 in. wide and 84 in. in height where a 12 in. extension is available for purchase for taller doors. It blends the utility of a vertical rod application with the appearance of a modern style panic device. It comes with a top and a bottom latch. However, the exterior lever is sold separately. These series meet the performance standards of Grade 1 and ADA compliant exit devices. Item is available in Aluminum, Duronodic and Stainless Steel finishes.

• •Heavy duty vertical rod for commercial and industrial application
• •Compatible with wood and hollow metal doors from 26in. to 36in. wide
• •Meets the standards of Grade 1 and ANSI A156.3 - Non fire rated
• •Provides the appearance of a modern style panic device
• •Set up for dogging & includes dogging hex key
• •Made from solid steel for more durability
• •Comes non-handed / reversible
• •Supplied with mounting hardware
• •Comes with standard strike and shim
• •Comes with a plastic end cap
• •Comes with spring loaded latches
• •Can be cut down to 26 in. in length
• •Easy to install
• •Door thickness: 1-3/4 to 2 in.
• •Door width: 26 to 36 in.
• •Door height: 84 in. (7 Ft)
• •Projection: 2-1/4 in.
• •12 in. extension rod available for taller doors
• •Duronodic finish
• •UL listed SA32524
• •ADA compliant
• •1 Year mechanical and finish warranty
