Shop TRANSAIR

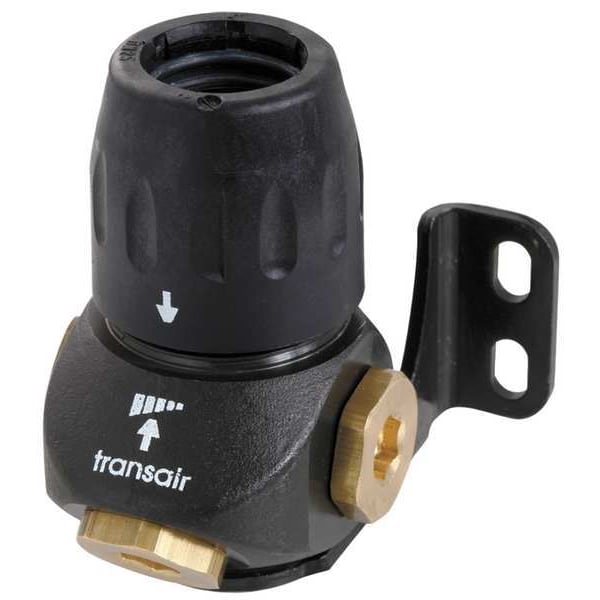

3 Port Wall Bracket, Brass, Black

  • Mfr # 6696 25 22GR

  • Zoro # G3966798

product price:  $118.99
/ea
Free Shipping & Returns

Key Features

Specific Fitting Shape
Wall Bracket
Max. Pressure
232 psi
Industry Type
Automotive Assembly; Food & Beverage; Packaging; Industrial Plants; Aerospace
Pipe Size (Fittings)
1/2"
Fitting Size (NPT)
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6696 25 22GR
Zoro #
G3966798
UPC #
-
Country of Origin
France

Dimensions

Pipe Size (Fittings)
1/2"
Fitting Size (NPT)
1/2 in
Dia./Thread Size
1/2" x 1/4"
Tube Outside Dia.
177.8mm
Fitting Side C Pipe Size
1/2 in
Fitting Side A Pipe Size
1 in
Fitting Side B Pipe Size
1/2 in
Fitting Side D Pipe Size
1/2 in
Fitting Side 4 Pipe Size
1/2 in
Fitting Side 3 Pipe Size
1/2 in
Fitting Side 1 Pipe Size
1 in
Fitting Side 2 Pipe Size
1/2 in
Fitting Thread Size
1/2"

Details

Item
3 Port Wall Bracket
Specific Fitting Shape
Wall Bracket
Max. Pressure
232 psi
Industry Type
Automotive Assembly; Food & Beverage; Packaging; Industrial Plants; Aerospace
For Tubing O.D. 1
25 mm
Type
Transair
Specific Pipe Fitting Shape
Bracket
Compliance
TUV
Pipe Fitting Connection Type
NPT
Basic Pipe Fitting Shape
Bracket
Material
Brass
Special Features
Quick Connection Technology; Modular and Reusable; No Corrosion; Full-Bore Design; Lower Installation Costs; Optimum Flow Rate; Leak-free Guarantee; Immediate Pressurization; Lightweight
System of Measurement
Imperial
Color
Black
Pipe Fitting Material
Brass
Temp. Range
-4 to 140 Degrees F
Basic Pipe Fitting Material
Metal
For Use With
Air, Vacuum and Inert Gas Piping Systems
Standards
ASME B31.1 - 31.9, CE, EN 573.3, EN 755.2, EN 755.8, ISO 8573 (Air Quality), ISO 9001, TUV
Basic Material
Brass
Max. Temp.
140 Degrees F
Application
Vacuum
Maximum Operating Temperature
185 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Fitting Side B Connection Type
FNPT
Fitting Side D Connection Type
FNPT
Fitting Side C Connection Type
FNPT
Vacuum Rating
0.03 in Hg
Fitting Material
Brass, Nylon
Maximum Operating Pressure
232 psi
Minimum Operating Temperature
4 Degrees F
Fitting Shape
Straight
Fitting Side 4 Connection Type
FNPT
Resistance Properties
Corrosion-Resistant
Operating Temperature - Maximum
185 Degrees F
Series
Transair(R)
Operating Temperature - Minimum
-4 Degrees F
Fitting Features
Drain
Fitting Side 2 Connection Type
FNPT
Fitting Side 3 Connection Type
FNPT
Operating Pressure - Maximum
232 psi
Fitting Side 1 Connection Type
Pipe
For Media Type
Air, Gases

Description

3 Port Wall Bracket, Application Vacuum, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type FNPT, Fitting Side C Connection Type FNPT, Fitting Side D Connection Type FNPT, Fitting Side A Pipe Size 1 in, Fitting Side B Pipe Size 1/2 in, Fitting Side C Pipe Size 1/2 in, Fitting Side D Pipe Size 1/2 in, Fitting Material Brass, Nylon, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 185 Degrees F, Specific Fitting Shape Wall Bracket

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
