  11. End Cap, Polyamide, Black

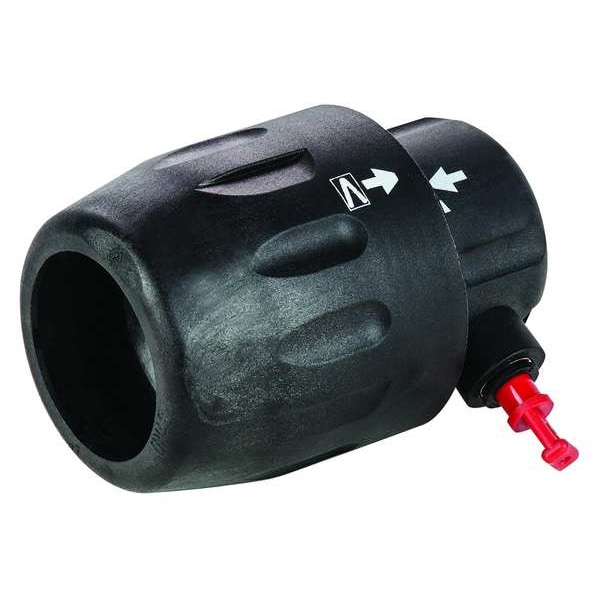

Transair End Cap, Polyamide, Black 6625 25 00 - main

End Cap, Polyamide, Black

  • Mfr # 6625 25 00

  • Zoro # G0563175

product price: $39.19
/ea

Key Features

Specific Fitting Shape
Vented End Cap
Fitting Connection Type
Push-to-Connect
Color
Black
For Tubing O.D. 1
25 mm
Standards
ASME B31.1-31.9, CE, EN 573.3, EN 755.2, EN 755.8, ISO 8573, ISO 9001, TUV Certified
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6625 25 00
Zoro #
G0563175
UPC #
-
Country of Origin
France

Dimensions

Fitting Tube Size Outer Diameter
1 in
Overall Length
1 27/32 in

Details

Item
Push-Fit Fitting Cap
Specific Fitting Shape
Vented End Cap
Fitting Connection Type
Push-to-Connect
Color
Black
For Tubing O.D. 1
25 mm
Standards
ASME B31.1-31.9, CE, EN 573.3, EN 755.2, EN 755.8, ISO 8573, ISO 9001, TUV Certified
Type
End Cap
Material
Polyamide
Application
Industrial
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Material
Polyamide
Minimum Operating Temperature
4 Degrees F
Maximum Operating Pressure
232 psi
Maximum Operating Temperature
185 Degrees F
System of Measurement
Imperial
Fitting Shape
Cap
Operating Temperature - Minimum
4 Degrees F
Operating Temperature - Maximum
185 Degrees F
Fitting Features
Vent
For Media Type
Compressed Air, Gases
Operating Pressure - Maximum
232 psi

Description

Push-Fit Cap, Application Industrial, Fitting Connection Type Push-to-Connect, Fitting Material Polyamide, Fitting Tube Size Outer Diameter 1 in, Material Grade Not Applicable, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 185 Degrees F, Overall Length 1 27/32 in, Specific Fitting Shape Vented End Cap, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Color Black

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
