Shop TRANSAIR

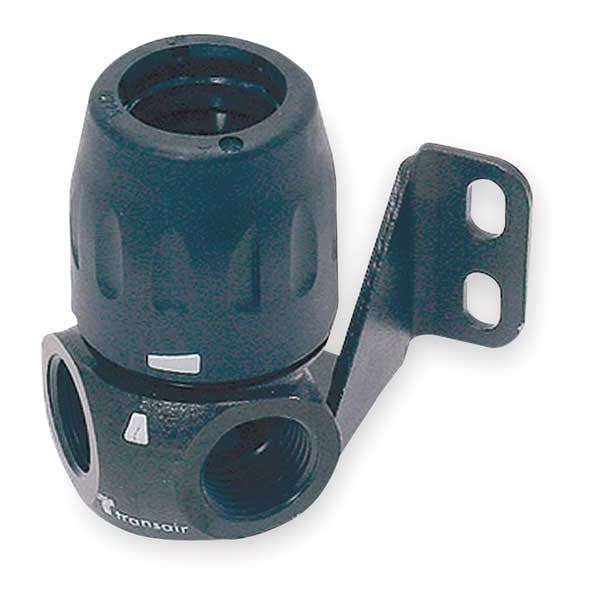

Tubing Fitting, 7/8" Tube Size, Brass, Black

  • Mfr # 6684 25 22

  • Zoro # G2840004

product price:  $91.29
/ea

Key Features

Specific Fitting Shape
2 Port Wall Bracket
Tube Size
7/8"
Max. Pressure
232 psi
System of Measurement
Imperial/Metric
Basic Pipe Fitting Shape
Connector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6684 25 22
Zoro #
G2840004
UPC #
-
Country of Origin
France

Dimensions

Tube Size
7/8"
Fitting Size (NPT)
1/2 in
Dia./Thread Size
1/2"
Tube Outside Dia.
7/8"
Pipe Size (Fittings)
1/2"
Fitting Side A Pipe Size
1 in
Overall Length
2 1/4 in
Fitting Side C Pipe Size
1/2 in
Fitting Side B Pipe Size
1/2 in
Fitting Side A Tube Outer Diameter
25 mm
Fitting Side 3 Pipe Size
1/2 in
Fitting Side 4 Pipe Size
1/2 in
Fitting Side 1 Tube Outer Diameter
1 in
Fitting Side 2 Pipe Size
1/2 in
Wire Rope Length
2 1/4 in

Details

Item
Push-Fit Wye Fitting
Specific Fitting Shape
2 Port Wall Bracket
Max. Pressure
232 psi
System of Measurement
Imperial/Metric
Basic Pipe Fitting Shape
Connector
Color
Black
Industry Type
Automotive Assembly; Food & Beverage; Packaging; Industrial Plants; Aerospace
Basic Pipe Fitting Material
Metal
Green Environmental Attribute
100% Total Recycled Content
Max. Temp.
140 Degrees F
For Use With
Use with Compressed Air, Vacuum, Inert Gas
Basic Material
Brass
Standards
ASME B31.1-31.9, CE, EN 573.3, EN 755.2, EN 755.8, ISO 8573, ISO 9001, TUV Certified
Compliance
UL and CE
Special Features
Quick Connection Technology; Modular and Reusable; No Corrosion; Full-Bore Design; Lower Installation Costs; Optimum Flow Rate; Leak-free Guarantee; Immediate Pressurization; Lightweight; Easy to Install and Modify; Most Versatile Compressed Air Pipe System; Silicone Free; Made of Non-Flammable Materials
Specific Pipe Fitting Shape
Connector
Pipe Fitting Connection Type
NPT
Type
Two Port Wall Bracket
For Tubing O.D. 1
25 mm
Material
Plated Brass
Temp. Range
-4 Degrees to 140 Degrees F
Application
Industrial
Fitting Side A Connection Type
Push-to-Connect
Maximum Operating Pressure
232 psi
Maximum Operating Temperature
185 Degrees F
Vacuum Rating
0.03 inHg
Fitting Material
Brass
Fitting Side B Connection Type
NPT
Fitting Side C Connection Type
NPT
Minimum Operating Temperature
4 Degrees F
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Shape
Wye
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
4 Degrees F
Fitting Side 3 Connection Type
NPT
Fitting Side 4 Connection Type
FNPT
Operating Pressure - Maximum
232 psi
Fitting Side 2 Connection Type
NPT
Operating Temperature - Maximum
185 Degrees F
For Media Type
Compressed Air, Gases
Fitting Features
Drain

Description

Push-Fit Wye Fitting, Application Industrial, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type NPT, Fitting Side C Connection Type NPT, Material Grade Not Applicable, Fitting Side A Pipe Size 1 in, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Side B Pipe Size 1/2 in, Fitting Side C Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 25 mm, Fitting Material Brass, Maximum Operating Pressure 232 psi
