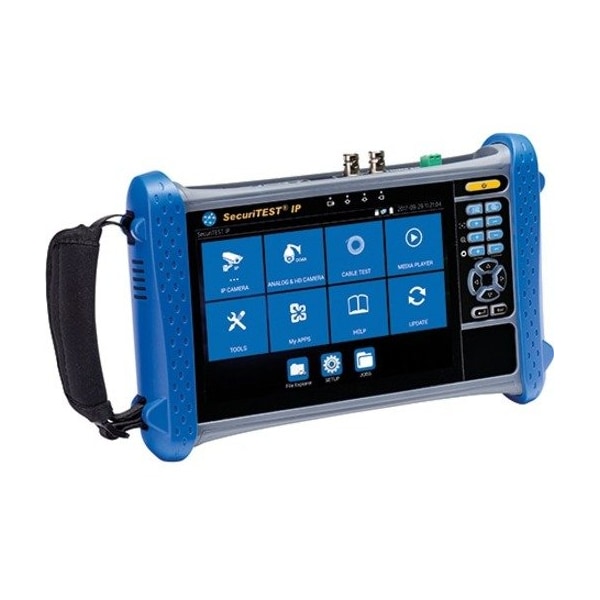

Trend Networks CCTV system tester R171000 - main

CCTV system tester

  • Mfr # R171000

  • Zoro # G701209051

product price: $960.99
/ea
Free Shipping & Returns

Key Features

Height
6 3/10 in
Color
Black, Blue
Width
9 9/10 in
Length
6 3/10 in
Function
Cable Testing, Camera Programming
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R171000
Zoro #
G701209051
UPC #
783250788477
Country of Origin
China

Dimensions

Height
6 3/10 in
Width
9 9/10 in
Length
6 3/10 in
Depth
1 9/10 in
Display Size
7 in

Details

Item
HD CCTV Tester
Color
Black, Blue
Function
Cable Testing, Camera Programming
Connector Type
2.5mm Barrel, BNC, Ethernet, F Type Mini USB, Mini USB, RJ11/12, RJ45, RS485
For Use With
CCTV Cables, Coax Cable, PoE, PTZ Control Test, Surveillance Systems
Includes
0.5 m Male Audio Jack, 0.5 m RS485 Cable, 3 m CAT5e UTP Patch Cable, 3 m Coax Cable with BNC, 8Gb Micro SD Card, Adapters, Cable Tracer, Carrying Case, DC12V 3.5(f) to 2.5(f) Power Cable, Guide, microSD Reader, Neck Strap, RS485 Female Green Plugs
Characteristics
5-in-1 Multi-Purpose Security Tester with Report Function, Ruggedized
Displays
Color
Display Type
7 inch touchscreen 1920x 1200 resolution
Body Material
Heavy Duty Plastic
Power Source
Lithium-Ion Battery
Power Supply
7.4V DC @ 5000 mAh
Camera Inputs
1
Product Type
CCTV Tester
Battery Chemistry
Lithium Ion
Maximum Operating Humidity
90 %
Includes Batteries
Yes
Maximum Operating Temperature
122 Degrees F
Input Type
RS485
Display Screen Type
LCD Touchscreen
Minimum Operating Temperature
14 Degrees F
Testing Functions
Cable Certification, Cable Length Display, Cable Speed Qualification, Ethernet Service Detection, Line Polarity Indication, Opens/Shorts Detection, PoE/PoE+ Detection, PTZ Control Test, Video Transmission
Includes Software
Yes
Resolution
4K
Output Type
HDMI
Digital Memory Capacity
8 GB
Compatible Camera Systems
AHD, CVI, TVI, NTSC/PAL

Description

HD CCTV Tester, Testing Functions Cable Certification, Cable Length Display, Cable Speed Qualification, Ethernet Service Detection, Line Polarity Indication, Opens/Shorts Detection, PoE/PoE+ Detection, PTZ Control Test, Video Transmission, Display Size 7 in, For Use With CCTV Cables, Coax Cable, PoE, PTZ Control Test, Surveillance Systems, Input Type RS485, Display Screen Type LCD Touchscreen, Battery Chemistry Lithium Ion, Color Black, Blue, Compatible Camera Systems AHD, CVI, TVI, NTSC/PAL
