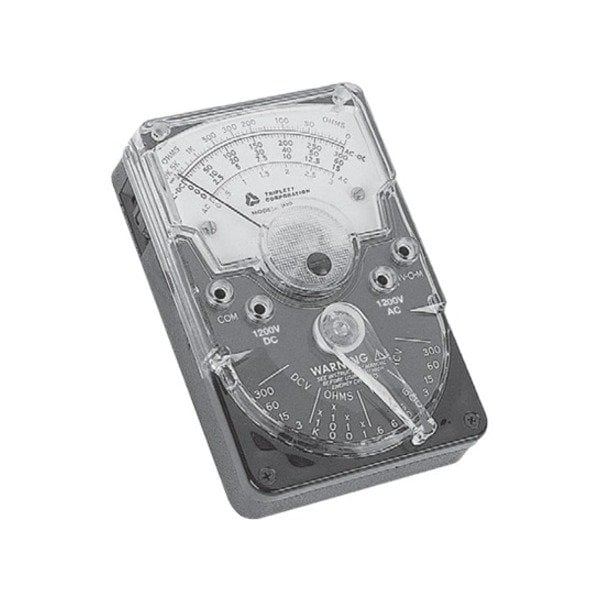

Analog Multimeter, 1,200 V, 20 megaohm

  • Mfr # 3018

  • Zoro # G8264566

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Max. AC Volts
1,200 V
Movement
Pivot and Jewel
Overload Protector
Yes
Battery Type
1.5V N, 12V A23
Accuracy
+/-4% Scale Full Value
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3018
Zoro #
G8264566
UPC #
614395000110
Country of Origin
Taiwan, Province of China
Item
Analog Multimeter
Max. AC Volts
1,200 V
Movement
Pivot and Jewel
Overload Protector
Yes
Battery Type
1.5V N, 12V A23
Accuracy
+/-4% Scale Full Value
Max. DC Amps
600 mA
Max. Ohms
20 megohm
Mirrored Scale
No
Max. DC Volts
1,200 V
Includes
12V A23, Alligator Clips, Test Leads
Audible Continuity
No
AC Frequency Response
60 Hz
Sensitivity
20K ohm/V DC, 5K ohm/V AC
Special Features
18 Ranges and Functions, Drop Resistant High Impact Case, Fused Resistance Ranges
Resistance Measurement Accuracy
+/-3.00%
Minimum DC Current Measurement
0.6 mA
Minimum Operating Temperature
-40 Degrees F
Minimum Resistance Measurement
20 kiloohm
Maximum Operating Temperature
185 Degrees F
Minimum DC Voltage Measurement
3 V
Minimum AC Voltage Measurement
3 V
Batteries Included
Yes
Maximum Resistance Measurement
20 megaohm
Maximum AC Voltage Measurement
1,200 V
Maximum Storage Temperature
185 Degrees F
Standards
CE
Maximum DC Current Measurement
600 mA
Basic AC Voltage Accuracy
+/-4.00%
Calibration Certificate Included
No
Battery Voltage
1.5 V DC
Parameters Measured
AC Voltage, DC Current, DC Voltage, Resistance
Basic DC Current Accuracy
+/-3.00%
Basic DC Voltage Accuracy
+/-3.00%
Maximum DC Voltage Measurement
1,200 V
AC Frequency Response - Maximum
60 Hz
Voltage Units
V
Current Units
mA

Description

Analog Multimeter, Resistance Measurement Accuracy +/-3.00 Percent, Basic DC Current Accuracy +/-3.00 Percent, AC Frequency Response 60 Hz, Parameters Measured AC Voltage, DC Current, DC Voltage, Resistance, Basic AC Voltage Accuracy +/-4.00 Percent, Basic DC Voltage Accuracy +/-3.00 Percent, Minimum AC Voltage Measurement 3 V, Maximum AC Voltage Measurement 1,200 V, Minimum DC Voltage Measurement 3 V, Maximum DC Voltage Measurement 1,200 V, Maximum AC Current Measurement Not Applicable
