Shop TRIPLETT

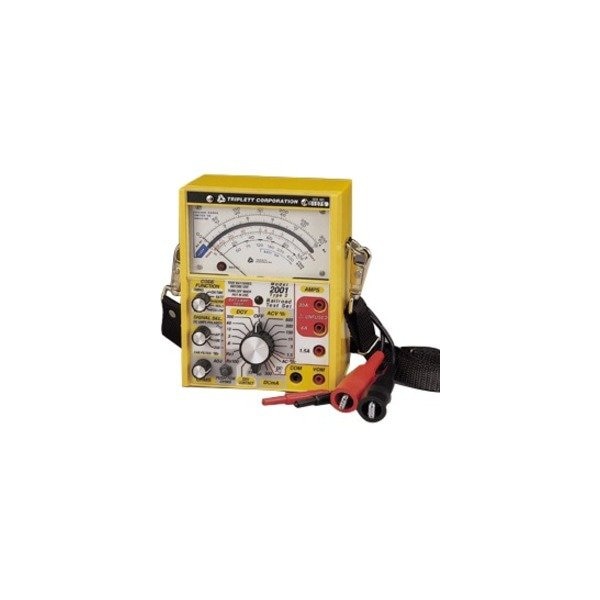

Analog Multimeter, 600 V, 30 A, 100 ohm

  • Mfr # 2011

  • Zoro # G8107057

product price:
$
2,098.99
/ea
Free Shipping & Returns

Key Features

Max. AC Volts
600 V
Includes
Padded Water Repellent Carrying Case, Shoulder Strap, Test Leads
Battery Type
9V, D
Max. DC Volts
300 V
Accuracy
+/-3% Scale Length
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2011
Zoro #
G8107057
UPC #
614395001148
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
3.2 in
Overall Height
6.5 in
Battery Size
D
Manufacturers Warranty Length
1 yr

Details

Item
Analog Multimeter
Max. AC Volts
600 V
Includes
Padded Water Repellent Carrying Case, Shoulder Strap, Test Leads
Battery Type
9V, D
Max. DC Volts
300 V
Accuracy
+/-3% Scale Length
Mirrored Scale
Yes
Sensitivity
1K ohm/V AC
Overload Protector
Yes
Max. Ohms
1000 ohm
AC Frequency Response
25 to 400 Hz
Max. DC Amps
30 A
Movement
100 Degree Deflection, Critically Damped, High Strength Magnet, Mirrored Scale, Taut Band
Max. AC Amps
30 A
Special Features
Auto Polarity in DC Functions, Base Unit with No Cab Filters, Auto and Selectable DC Amps Polarity, Direct Measurement of Code Parameters, Ohmmeter Voltage Mode Detects Foreign AC or DC Voltages, Peak Measurements Require No Adjustment, Relay Contact on Time (Dry Contact) Requires No Adjustment
Audible Continuity
No
Calibration Certificate Included
No
Minimum Operating Temperature
-40 Degrees F
Basic AC Current Accuracy
+/-1.50%
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Batteries Included
Yes
Basic AC Voltage Accuracy
+/-3.00%
Maximum AC Current Measurement
30 A
Minimum AC Voltage Measurement
1.5 V
Minimum DC Voltage Measurement
0.6 V
Resistance Measurement Accuracy
+/-2.00%
Maximum Resistance Measurement
100 ohm
Minimum DC Current Measurement
1.5 A
Minimum Storage Temperature
-40 Degrees F
Maximum Operating Temperature
185 Degrees F
Battery Voltage
9 V
Basic DC Voltage Accuracy
+/-1.50%
Maximum DC Current Measurement
30 A
Basic DC Current Accuracy
+/-1.50%
Maximum AC Voltage Measurement
600 V
Maximum Storage Temperature
185 Degrees F
Maximum DC Voltage Measurement
300 V
Minimum AC Current Measurement
0 A
Minimum Resistance Measurement
0 ohm
Current Units
A, mA
Voltage Units
V
AC Frequency Response - Minimum
25 Hz
AC Frequency Response - Maximum
400 Hz

Description

Analog Multimeter, Basic AC Current Accuracy +/-1.50 Percent, Resistance Measurement Accuracy +/-2.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, AC Frequency Response 25 to 400 Hz, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Basic AC Voltage Accuracy +/-3.00 Percent, Basic DC Voltage Accuracy +/-1.50 Percent, Minimum AC Voltage Measurement 1.5 V, Maximum AC Voltage Measurement 600 V, Minimum DC Voltage Measurement 0.6 V
