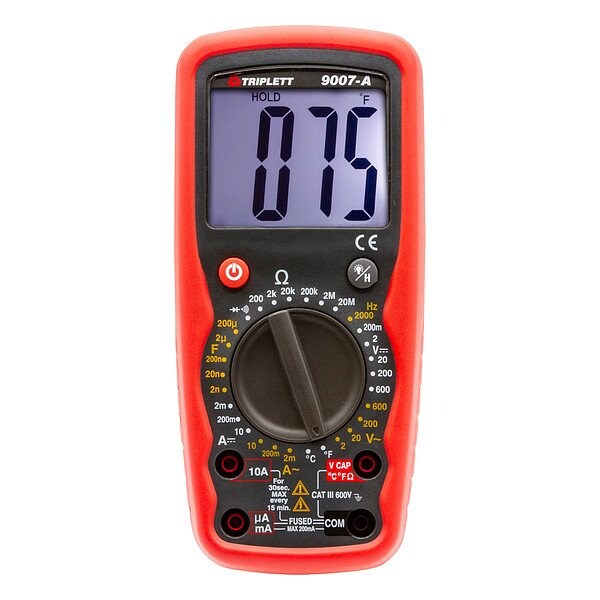

DigitalMultimeter, AvgCalc, 10A, 600VAC/DC

Mfr # 9007A
Zoro # G822438231

113.99

Free Shipping & Returns

Key Features

Instrument Counts

2,000

Manufacturers Warranty Length

3 yr

Minimum Operating Temperature

32 Degrees F

Duty Cycle

Duty Cycle Test Included

Temperature Types Measured

Temperature K

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 9007A
Zoro #: G822438231
UPC #: 614395001728
Country of Origin: China

Dimensions

Manufacturers Warranty Length: 3 yr
Depth: 2.1 in
Battery Size: 9V
Overall Height: 7.1 in
Overall Width: 3.2 in

Details

Instrument Counts: 2,000
Minimum Operating Temperature: 32 Degrees F
Duty Cycle: Duty Cycle Test Included
Temperature Types Measured: Temperature K
Resistance Measurement Accuracy: +/-2.0%
Minimum AC Current Measurement: 2 uA
Includes Auto Sensing: No Auto Sensing Included
Auto Power Off: Yes
CAT Safety Rating: CAT III 600V
Display Type: Backlit LCD
Maximum Resistance Measurement: 20 megaohm
Battery Voltage: 9 V
Maximum AC Voltage Measurement: 600 V
Fuse Access: Yes
AC Response Calculation: Average
Capacitance Measurement Accuracy: +/-5%
Capacitance Measurement Resolution: 1 pF
AC Voltage Measurement Resolution: 0.1 mV
Voltage Units: V
Minimum Frequency Measurement: 1 Hz
Battery Access: Yes
Maximum DC Voltage Measurement: 600 V
Batteries Included: Yes
IP Rating: Not Rated
Weight: 12.7 oz
Resistance Measurement Resolution: 0.1 ohm
Data Hold: Yes
Minimum AC Voltage Measurement: 200 mV
Minimum DC Current Measurement: 2 uA
Auto Ranging: No
Minimum Storage Temperature: -20 Degrees F
DC Current Measurement Resolution: 1 uA
Maximum AC Current Measurement: 10 A
Minimum Capacitance Measurement: 2 nF
Special Features: 31 Measurement Ranges, 3 1/2 Digit Resolution with Large 1.4 in Backlit Display, CAT III 600V, Data Hold, Auto Power Off, and Low Battery Indicator, Temperature, Frequency and Capacitance Measurement
Maximum Capacitance Measurement: 200 uF
AC Current Measurement Resolution: 1 uA
Maximum DC Current Measurement: 10 A
Item: Digital Multimeter
Standards: CE
Includes: Battery, Alligator Clips, Test Leads, Type K Temperature Probe
DC Voltage Measurement Resolution: 0.1 mV
Current Units: A
Maximum Frequency Measurement: 2,000 Hz
Calibration Certificate Included: No Certification Included
Minimum Resistance Measurement: 200 ohm
Diode Test: Yes
Minimum DC Voltage Measurement: 200 mV
Parameters Measured: AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance, Temperature
Maximum Storage Temperature: 60 Degrees F

Description

Digital Multimeter, Audible Continuity Not Applicable, Basic AC Voltage Accuracy Not Applicable, Basic DC Voltage Accuracy Not Applicable, Data Hold Yes, Basic DC Current Accuracy Not Applicable, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000
