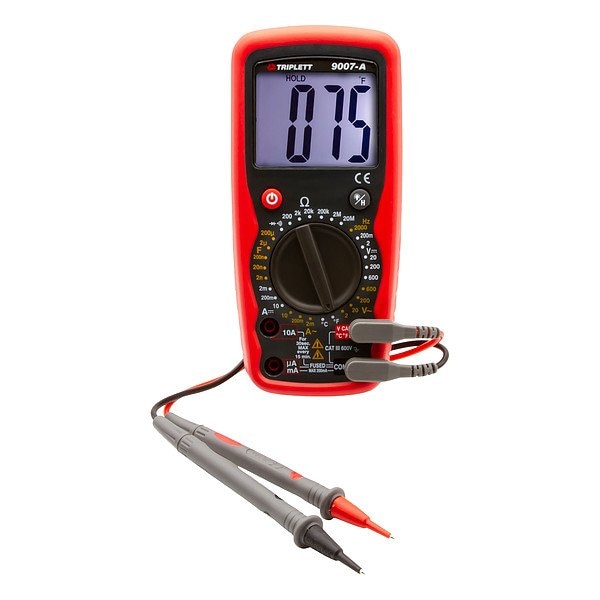

DigitalMultimeter, AvgCalc, 10A, 600VAC/DC

  • Mfr # 9007A-NIST

  • Zoro # G522440855

product price:
$
218.99
/ea
Free Shipping & Returns

Key Features

Overall Height
7.1 in
Battery Size
9V
Maximum Storage Temperature
60 Degrees F
Minimum AC Current Measurement
2 uA
AC Current Measurement Resolution
1 uA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9007A-NIST
Zoro #
G522440855
UPC #
614395002749
Country of Origin
China

Dimensions

Overall Height
7.1 in
Battery Size
9V
Depth
2.1 in
Overall Width
3.2 in
Manufacturers Warranty Length
3 yr

Details

Maximum Storage Temperature
60 Degrees F
Minimum AC Current Measurement
2 uA
AC Current Measurement Resolution
1 uA
CAT Safety Rating
CAT III 600V
IP Rating
Not Rated
Maximum AC Voltage Measurement
600 V
Auto Power Off
Yes
DC Current Measurement Resolution
1 uA
Weight
12.7 oz
Display Type
Backlit LCD
Fuse Access
Yes
Minimum DC Voltage Measurement
200 mV
Auto Ranging
No
Maximum Frequency Measurement
2,000 Hz
Maximum DC Current Measurement
10 A
Standards
CE
Minimum DC Current Measurement
2 uA
Instrument Counts
2,000
Resistance Measurement Resolution
0.1 ohm
Diode Test
Yes
Minimum Resistance Measurement
200 ohm
Minimum Frequency Measurement
1 Hz
Includes Auto Sensing
No Auto Sensing Included
Data Hold
Yes
AC Voltage Measurement Resolution
0.1 mV
Batteries Included
Yes
Minimum Storage Temperature
-20 Degrees F
Duty Cycle
Duty Cycle Test Included
Maximum Capacitance Measurement
200 uF
Maximum AC Current Measurement
10 A
Capacitance Measurement Accuracy
+/-5%
Battery Voltage
9 V
Minimum AC Voltage Measurement
200 mV
Item
Digital Multimeter
Maximum Resistance Measurement
20 megaohm
Resistance Measurement Accuracy
+/-2.0%
Battery Access
Yes
Special Features
31 Measurement Ranges, 3 1/2 Digit Resolution with Large 1.4 in Backlit Display, CAT III 600V, Data Hold, Auto Power Off, and Low Battery Indicator, Temperature, Frequency and Capacitance Measurement
Maximum DC Voltage Measurement
600 V
Capacitance Measurement Resolution
1 pF
Minimum Capacitance Measurement
2 nF
Voltage Units
V
DC Voltage Measurement Resolution
0.1 mV
AC Response Calculation
Average
Calibration Certificate Included
NIST Traceable
Minimum Operating Temperature
32 Degrees F
Includes
Battery, Alligator Clips, Test Leads, Type K Temperature Probe
Temperature Types Measured
Temperature K
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance, Temperature
Current Units
A

Description

Digital Multimeter, Audible Continuity Not Applicable, Basic AC Voltage Accuracy Not Applicable, Basic DC Voltage Accuracy Not Applicable, Data Hold Yes, Basic DC Current Accuracy Not Applicable, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000
