Shop TRIPLETT

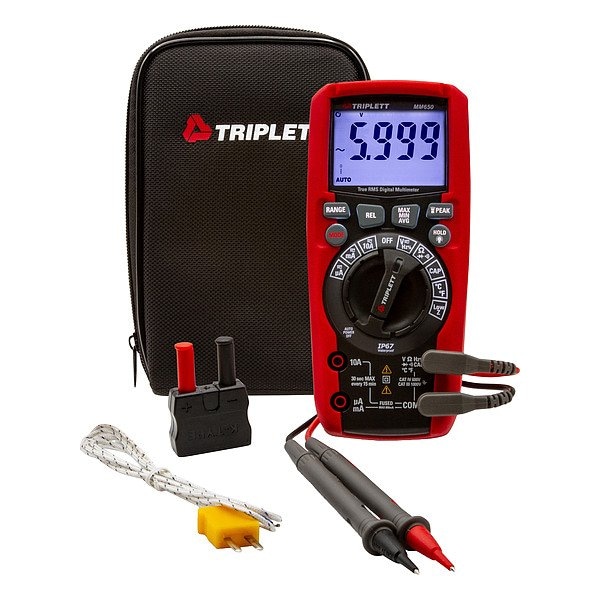

DigitalMultimeter, TRMS, 10A, 1000VAC/DC

  • Mfr # MM650
  • Zoro # G122439600
product price:
$
142.99
/ea
Free Shipping & Returns

Key Features

DC Voltage Measurement Resolution
0.1 mV
Basic DC Voltage Accuracy
+/-1.2%
IP Rating
IP67
Capacitance Measurement Resolution
10 pF
Min-Max-Avg Button Included
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MM650
Zoro #
G122439600
UPC #
614395002251
Country of Origin
China

Dimensions

Overall Height
6.7 in
Pulse Width
Yes
Overall Width
3 in
Battery Size
AAA
Depth
1.8 in
Manufacturers Warranty Length
3 yr

Details

DC Voltage Measurement Resolution
0.1 mV
Basic DC Voltage Accuracy
+/-1.2%
IP Rating
IP67
Capacitance Measurement Resolution
10 pF
Min-Max-Avg Button Included
Yes
Current Units
A, uA
AC Voltage Measurement Resolution
1 mV
Capacitance Measurement Accuracy
+/-5.0%
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Data Logging
No
CAT Safety Rating
CAT IV 600V
Intrinsically Safe
No
Display Type
Backlit LCD
Includes
(4) Batteries, Carrying Case, Temperature Probe, Test Leads
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Low Input Impedance, Resistance
Thermal Imaging
No
Resistance Measurement Accuracy
+/-2.0%
Includes Auto Sensing
No Auto Sensing Included
Maximum Resistance Measurement
60 megaohm
Auto Ranging
Yes
Battery Access
Yes
Minimum/Maximum Memory
Min/Max/Average
Maximum AC Current Measurement
10 A
AC Response Calculation
TRMS
Batteries Included
Yes
Fuse Access
Yes
Minimum DC Current Measurement
0 A
Minimum Capacitance Measurement
60 nF
Maximum DC Current Measurement
10 A
Item
Digital Multimeter
Special Features
Backlit LCD, Buttons, and Switch Selector, Built-in Flashlight, Data Hold and Relative Mode, Low Input Impedance (Lo Z) Mode for ACV/DCV Measurements, Measures AC/DC Voltage and Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity, Peak Hold, True RMS Provides Better Accuracy when Measuring Non-Sinusoidal or Noisy Waveforms, uA Current Measurement, Waterproof (IP67)
Basic AC Voltage Accuracy
+/-1.5%
Bar Graph Included
Yes
Minimum DC Voltage Measurement
0V DC
Peak Hold
Yes
Minimum Resistance Measurement
0 ohm
Calibration Certificate Included
No Certification Included
Temperature Measurement Accuracy
+/-(2.0% +5 Degrees C); +/-(2.0% +9 Degrees F)
Data Hold
Yes
AC Current Measurement Resolution
0.1 uA
Maximum DC Voltage Measurement
1,000V DC
Removable Screen
No
Diode Test
Yes
Resistance Measurement Resolution
0.1 ohm
Standards
CE, ETL
Weight
7.7 oz
Frequency Measurement Accuracy
+/-1.0%
Basic AC Current Accuracy
+/-2.0%
Basic DC Current Accuracy
+/-1.5%
Minimum AC Voltage Measurement
0V AC
Duty Cycle
Duty Cycle Test Included
Maximum AC Voltage Measurement
1,000V AC
DC Current Measurement Resolution
0.1 uA
Maximum Frequency Measurement
10 kHz
Temperature Measurement Resolution
0.1 Degrees F
Minimum AC Current Measurement
0 A
Auto Power Off
Yes
Minimum Frequency Measurement
10 Hz
Instrument Counts
6,000
Battery Voltage
6 V
Maximum Temperature Measurement
1,400 Degrees F
Frequency Measurement Resolution
0 Hz
Audible Continuity
No
Voltage Units
V
Maximum Capacitance Measurement
6,000 uF
Minimum Temperature Measurement
-4 Degrees F

Description

Digital Multimeter, Audible Continuity No, Basic AC Voltage Accuracy +/-1.5 Percent, Basic DC Voltage Accuracy +/-1.2 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1.5 Percent, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
