This item is Discontinued.

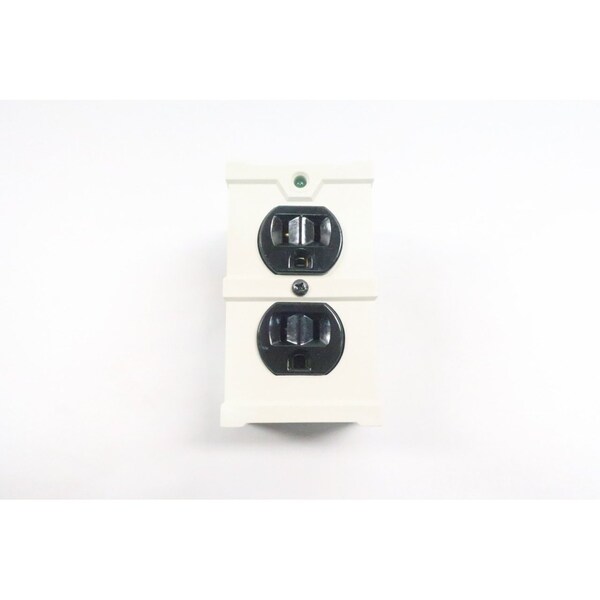

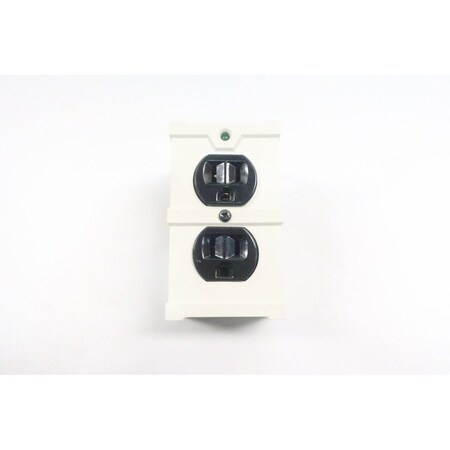

2-0 Transient Voltage 15A Amp 120V-Ac Surge Suppressor (Discontinued)
-
Mfr #
ISOBLOK 2-0
-
Zoro #
G503446111
Shop for similar items
Specifications
Country of Origin
Unknown
Input Cord Length Details
Direct Plug-In
Nominal Input Voltage(s) Supported
120V AC
UL1449 Let Through Rating
330V
AC Suppression Surge Current Rating
48,000 amps
UL1449 3rd Edition (AC Suppression)
Tested to UL1449 3rd Edition by ETL
Frequency Compatibility
50 / 60 Hz
Circuit Breaker (amps)
15 A
AC Suppression Response Time
NM = 0 ns. CM = <1 ns
Input Plug Type
NEMA 5-15P
Recommended Electrical Service
120V (110-125V)
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Output Receptacles
(2) 5-15R
EMI / RFI Filtering
40-80 dB
Material of Construction
Metal
AC Suppression Joule Rating
1410
Clamping Voltage (RMS)
140
Voltage Compatibility (VAC)
120
Included Mounting Accessories
Mounting hardware
Safe Thermal Fusing
Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
Form Factors Supported
Direct plug-in format with retaining bracket supports wall mounting directly to a standard AC wall socket
AC Suppression Components Used
Metal oxide varistors, toroidal balanced chokes and VHF capacitors
Diagnostic LED Details
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
Immunity
Conforms to IEE 587 / ANSI C62.41
