Shop TRIPP LITE

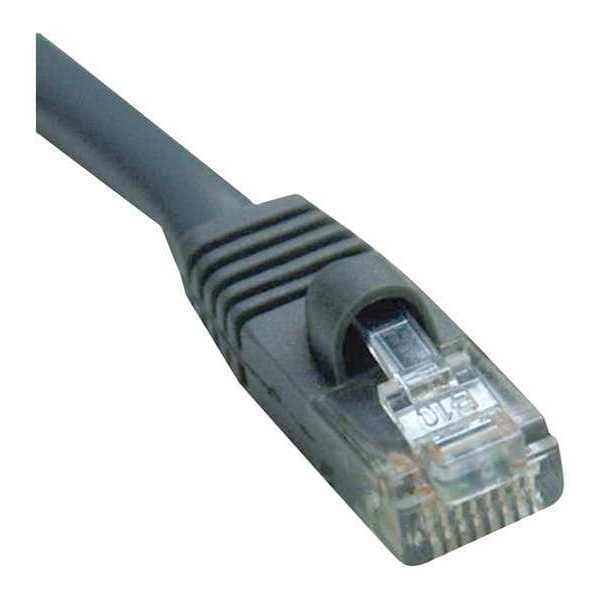

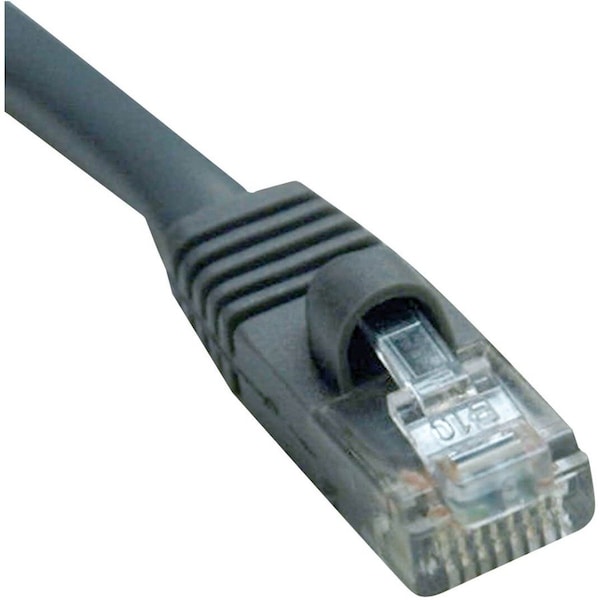

Cat5e Cable, Outdoor, Molded, Gray, 150ft

  • Mfr # N007-150-GY

  • Zoro # G5185735

product price:  $81.89
/ea

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Length - Patch Cord
150 ft
Cable Jacket Color
Gray
Cable Jacket Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N007-150-GY
Zoro #
G5185735
UPC #
037332140609
Country of Origin
China

Dimensions

Length - Patch Cord
150 ft
Cable Length
150 ft
Cable Length (ft.)
150
Cable Outer Diameter (OD)
5.5 mm
Bandwidth per TIA Standard
100 MHz
Maximum Bandwidth as Tested
350 MHz
Cable Diameter
5.5 mm
Overall Length
150 ft

Details

Item
Cat5e Cable,Outdoor,Molded,Gray,150ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Cable Jacket Color
Gray
Cable Jacket Material
PVC
Cable Type
Category 5e
Shielded
Unshielded
Shielding
No
Connector Type
Molded
Category - Data Cable
5/5e
Jacket Color
Gray
Jacket Material
PVC
Boot Type
Snagless
Features
Molded, UV Resistant
Shielding Type
UTP
Solid / Stranded
Solid
Conductor Material
Solid Copper
Jacket Type
CMR, CMX
Product Type
Network Cable
Product Name
150-ft. (45.72 m) Outdoor Rated Cat5e Patch Cable
Contact Plating
Gold
Device Supported
Network Device
Connector on First End Details
1 x RJ-45 Network - Male
Product Color
Gray
Connector on Second End Details
1 x RJ-45 Network - Male
Cable Characteristic
Patch Cable
Certifications & Standards
EIA/TIA 568-B.2 compliant, UL verified, CMR rated, CMX rated, UL444 rated
American Wire Gauge
24 AWG
Number of Pairs
4
Package Contents
Cat5e Patch Cable, 150ft Outdoor Rated Cat5e Patch Cable
Conductor
Copper
IEEE Standards Supported
802.3ab; 802.3at
Package Includes
150-ft. (45.72 m) Outdoor Rated Cat5e Patch Cable
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
Product Compliance
CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
Cable Jacket Rating
CMR; CMX
Operating Temperature Range
14° to 104°F (-10° to 40°C)
Wiring Configuration
EIA/TIA 568B
Number of Conductors
4 Pair
Operating Humidity Range
0% to 90% RH, Non-Condensing
Cable Shielding
UTP
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Side A - Connector 1
RJ45 (MALE)
Side B - Connector 1
RJ45 (MALE)
Technology
Cat5/5e
Product Certifications
UL Listed; cUL Listed
Network Compatibility
1 Gbps (Gigabit)
Power Over Cable (PoC) Support
No
Storage Humidity Range
0% to 90% RH, Non-Condensing
Conductor Gauge
24 AWG
End 2 Connection Type
RJ45
Standards
CE, cUL Listed, IEEE, REACH, RoHS, UKCA, UL Listed
End 1 Boot Type
Snagless
Includes Protective Cap
End 1 Protective Cap Included
Resistance Properties
UV Resistant
Minimum Operating Temperature
14 Degrees F
End 1 Connection Type
RJ45
Transmission Speed
1 GBps
Performance Category
5, 5e
End 2 Boot Type
Snagless
Maximum Frequency
350 MHz
Supports Power over Ethernet
Supports Power Over Ethernet
Maximum Operating Temperature
104 Degrees F
Fire Rating
Riser

Description

Cat5e Cable,Outdoor,Molded,Gray,150ft, Cable Shape Round, Conductor Gauge 24 AWG, Jacket Color Gray, Overall Length 150 ft, Performance Category 5, 5e, Shielded Unshielded, Fire Rating Riser, Jacket Material PVC, Standards CE, cUL Listed, IEEE, REACH, RoHS, UKCA, UL Listed, Transmission Speed 1 GBps, NEC Article and Type CMR, CMX, End 1 Boot Type Snagless, End 2 Boot Type Snagless, End 2 Connection Type RJ45, End 1 Connection Type RJ45, Cable Diameter 5.5 mm, Maximum Frequency 350 MHz
