  11. Cat6 Cable, Snagless, Molded, RJ45, Blue, 3ft

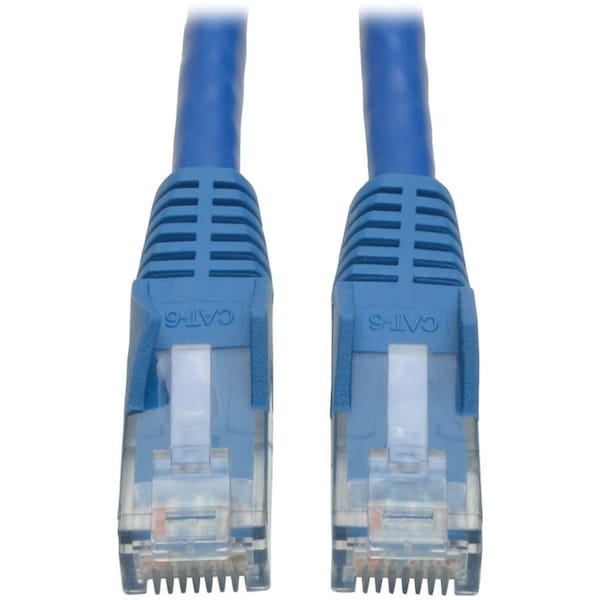

Tripp Lite Cat6 Cable, Snagless, Molded, RJ45, Blue, 3ft N201-003-BL - main

Cat6 Cable, Snagless, Molded, RJ45, Blue, 3ft

  • Mfr # N201-003-BL

  • Zoro # G5185245

product price: $3.79
/ea
Sold in multiples of 3 for $11.37

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Length - Patch Cord
3 ft
Transmission Speed
1 Gbps
Cable Jacket Color
Blue
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N201-003-BL
Zoro #
G5185245
UPC #
037332099808
Country of Origin
China

Dimensions

Length - Patch Cord
3 ft
Cable Length
3 ft
Maximum Bandwidth as Tested
500 MHz
Cable Outer Diameter (OD)
6.0 mm
Bandwidth per TIA Standard
250 MHz
Cable Length (ft.)
3

Details

Item
Cat6 Cable,Snagless,Molded,RJ45,Blue,3ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Transmission Speed
1 Gbps
Cable Jacket Color
Blue
Cable Jacket Material
PVC
Cable Type
Category 6
Boot Type
Snagless
Shielded
No
Category - Data Cable
6
Connector Type
Snagless; Molded
Jacket Color
Blue
Jacket Material
Polyvinyl Chloride (PVC)
Shielding
No
Features
Stranded, Molded, Strain Relief, Minimized Near-End Crosstalk (NEXT), Damage Resistant
Shielding Type
UTP
Jacket Type
CM
Solid / Stranded
Stranded
Conductor Material
Stranded Copper
Product Material
Copper
Additional Information
Drastically reduce impedance & structural return loss compared to standard 100MHz wire., Integral strain relief, Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.
Contact Plating
Gold
Product Type
Network Cable
Device Supported
Network Device, ATM
Product Color
Blue
Certifications & Standards
IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL (category 6 draft 11)
Connector on First End Details
1 x RJ-45 Network - Male
Material Details
Copper - Conductor
Data Transfer Rate
1 Gbit/s
Product Name
Cat.6 UTP Patch Network Cable
American Wire Gauge
24 AWG
Conductor
Copper
Number of Pairs
4
Connector on Second End Details
1 x RJ-45 Network - Male
Cable Characteristic
Patch Cable
Storage Temperature Range
5° to 140°F (-15° to 60°C)
Wiring Configuration
EIA/TIA 568B
Cable Jacket Rating
CM
Snagless Connector
Yes
Side B - Connector 1
RJ45 (MALE)
Technology
Cat6; PoE
Product Certifications
UL Listed; cUL Listed
Storage Humidity Range
0% to 90% RH, Non-Condensing
Operating Temperature Range
14° to 122°F (-10° to 50°C)
Side A - Connector 1
RJ45 (MALE)
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
IEEE Standards Supported
802.3an; 802.3at
Package Includes
3-ft. Cat6 Blue Gigabit Patch Cord Snagless Molded
Network Compatibility
1 Gbps (Gigabit)
Product Compliance
CE (Europe); IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; UKCA
Operating Humidity Range
0% to 90% RH, Non-Condensing
Cable Shielding
UTP
Number of Conductors
4 Pair
Conductor Gauge
24 AWG

Description

Cat6 Cable,Snagless,Molded,RJ45,Blue,3ft
