This item is Discontinued.

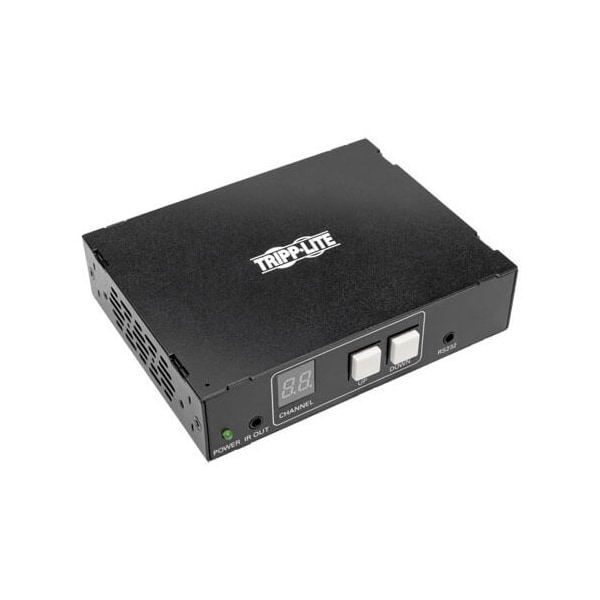

Tripp Lite Component Video Rca Over Ip Ex B160-001-CSI

Component Video Rca Over Ip Ex (Discontinued)

  • Mfr # B160-001-CSI
  • Zoro # G6235574
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B160-001-CSI
Zoro #
G6235574
UPC #
37332196705
Country of Origin
China

Dimensions

Transmitter Depth
3.94 in
External Power Supply Cord Length (m)
1.4
Transmitter Height
1.17 in
Transmitter Width
5.04 in
External Power Supply Cord Length (ft.)
4.5
Max Supported Color Depth
24-bit True Color

Details

Color
Black
Number of Ports
9
Item - Data Cable
Video Extender Transmitter
Jacket Color
Black
Features
Features,"Environmentally Friendly, HDMI Out, IR Remote Extension Support, Network (RJ-45), Rackmountable, RS-232 Serial Extension Support, TAA Compliant"
Product Type
Video Extender Transmitter
Maximum Video Resolution
1920 x 1200
Operating Temperature Range
14 to 167°F
Max Supported Video Resolution
1080i @60Hz
Technology
A/V over IP; Component; IR; Serial (RS232)
External Power Supply Output
5V, 2 A
Graphics Modes
WUXGA
External Power Supply Input
100 to 240V, 50/60Hz, 1.0A
Connectivity Technology
Wired
Power Consumption (Watts)
7.2
Twisted Pair Cable Standard
Category 6
External Power Supply Certifications
BSMI; CB; CE; FCC; GS; PSE; RCM; UL; cUL
Number of Output Devices Supported
1
LED Indicators
RJ45 Output (Green / Power, Orange / Signal), Channel Signal (Red), Power (Green)
Number of Network (RJ-45) Ports
1
Material of Construction
SECC
Maximum Operating Distance
328.08 ft
BTUH
24.6
Voltage Compatibility (VAC)
100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Audio Specification
2 Channel Surround Sound
Number of HDMI Outputs
1
Signal Range (ft.)
328
Latency
2 to 3 s
Side A Connector 1 Type
(5) RCA (FEMALE)
Recommended Category Cable
N202-Series Cat6 Patch Cable
Side B Connector 1 Type
(2) 3.5MM (FEMALE); HDMI (FEMALE); RJ45 (FEMALE)
Storage Temperature Range
-4 to 176°F
Media Type Supported
Twisted Pair
Relative Humidity
0 to 85%, Non-Condensing
