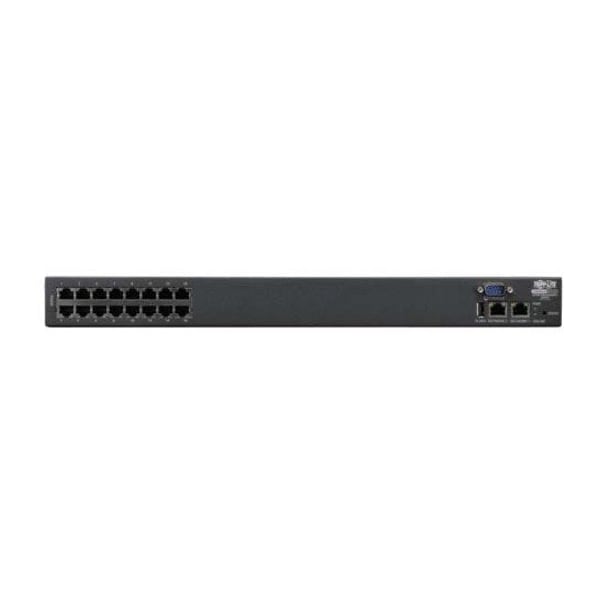

Console Server, 16-Port Serial, Terminal

Console Server, 16-Port Serial, Terminal

Mfr # B096-016
Zoro # G5195429

$2,699.99

Free Shipping & Returns

Key Features

Color

Black

Management Port

Yes

Phone Line (RJ-11)

Yes

Media Type Supported

Twisted Pair

Network Standard

10/100Base-TX

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

B096-016

Zoro #

G5195429

UPC #

037332148902

Country of Origin

United States

Dimensions

Unit Dimensions (hwd / in.)

1.750 x 17.400 x 12.500

Details

Item

Console Server,16-Port Serial,Terminal

Color

Black

Management Port

Yes

Phone Line (RJ-11)

Yes

Media Type Supported

Twisted Pair

Network Standard

10/100Base-TX

Number of Network (RJ-45) Ports

Number of RJ-11 Ports

Package Contents

B096-016 16-Port IP Console Server Management Switch, Rackmount hardware, 2 x 6ft, Cat5e Patch cables, 1 x DB9F - RJ45 Crossover Adapter, 1 x DB9F - RJ45 Straight-Through Adapter, 2 x 6ft, 5-15P to C13 Power cable

Ethernet Technology

Fast Ethernet

Number of USB Ports

Product Type

Device Server

Form Factor

Rack-mountable

USB

Yes

Additional Information

2 x C14 Power Ports, 100-240V AC, IP Remote Access, In-band (local Ethernet or secure tunnel over Internet), Out-of-band (dial-up modem access), V.92 Serial Data/Fax Embedded Modem 3.3V Model, 14.4K Fax, Additional Ethernet for broadband out-of-band connection, Local serial console accessOperating System: Linux with Source Code Access, Custom Development Kit

Network (RJ-45)

Yes

Product Name

B096-016 16-Port Serial Console Server Management Switch TAA Compliant

TAA Compliant

Yes

Input Connection Type

2 x IEC-320-C14, Auto-Switching 100-240VAC

Storage Temperature Range

Non operating storage temperature: -30C to +60C (-20F to +140F)

Package Includes

B096-016 16-Port Serial Server with USB;(2) Cat5 patch cables, 6 ft.;DB9 to RJ45 straight connector;DB9 to RJ45 crossover connector;(2) C13 to NEMA 5-15P power cords, 6 ft.;Rack-mounting hardware;CD with owner's manual;Quick Start Guide

BTUs

120V: 52 BTU per hour

Operating Temperature

Ambient operating temperature: 5C to 50C (41F to 122F)

Maximum Input Amps

0.8

Multi-User

Yes

IP Remote Access

Yes

Relative Humidity

Humidity: 5% to 90%

Input Frequency

50/60Hz

Network Compatibility

100 Mbps (Fast Ethernet)

Power Consumption (Watts)

Nominal Input Voltage(s) Supported

100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC

Number of Ports

Input Current

120V (0.11A) / 230V (0.06A)

Description

Console Server,16-Port Serial,Terminal
