  9. Ethernet Switch, 8 Ports, 2" W, 4" H

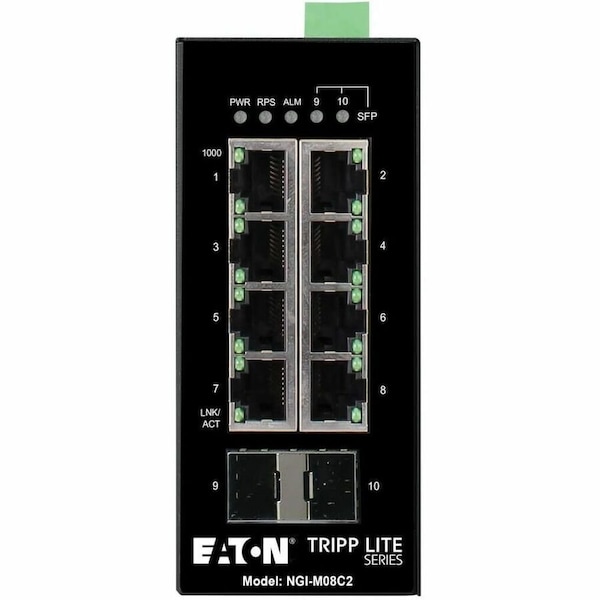

Tripp Lite Ethernet Switch, 8 Ports, 2" W, 4" H NGI-M08C2 - main

Ethernet Switch, 8 Ports, 2" W, 4" H

  • Mfr # NGI-M08C2

  • Zoro # G910718566

product price: $482.99
/ea
Free Shipping & Returns

Key Features

Port Type
RJ45
Connector Type
Terminal Block
Standards
CE (Europe), FCC (USA), IEEE 802.1p Class of Service (Europe), IEEE 802.3 10Base-T, IEEE 802.3 Auto-Negotiation, IEEE 802.3ab 1000Base-T, IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.3u 100Base-TX/FX, IEEE 802.3x Flow Control, IEEE 802.3z 1000Base-SX/LX, REACH, RoHS, Trade Agreements Act (TAA)
Number of Ports
8
Includes
NGI-M08C2 Ethernet Switch, DIN Rail-mounting Clip (Pre-installed)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NGI-M08C2
Zoro #
G910718566
UPC #
037332266606
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
3 yr
Overall Depth
4 in
Overall Height
4 5/8 in
Overall Width
2 in
Width
2 in
Depth
4.6 in
Height
3.9 in

Details

Item
Ethernet Switch
Port Type
RJ45
Connector Type
Terminal Block
Standards
CE (Europe), FCC (USA), IEEE 802.1p Class of Service (Europe), IEEE 802.3 10Base-T, IEEE 802.3 Auto-Negotiation, IEEE 802.3ab 1000Base-T, IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.3u 100Base-TX/FX, IEEE 802.3x Flow Control, IEEE 802.3z 1000Base-SX/LX, REACH, RoHS, Trade Agreements Act (TAA)
Number of Ports
8
Includes
NGI-M08C2 Ethernet Switch, DIN Rail-mounting Clip (Pre-installed)
Mounting
DIN Rail
Maximum Operating Temperature
167 Degrees F
IP Rating
IP30
Network Interface
10/100/1000 Mbps
Minimum Operating Temperature
-40 Degrees F
Switch Management
Managed
Features
Monitors and Controls Devices via CLI and Web Configuration, Pre-Installed DIN Rail Clip
Maximum Input Voltage
20/48V DC
Total Number of Network Ports
8
Material
Aluminum
Manageable
Yes
Media Type Supported
Twisted Pair, Optical Fiber
Network Technology
1000Base-X, 10/100/1000Base-T, 1000Base-SX/LX, 100Base-FX
Networking Standards
IEEE 802.3x, IEEE 802.1p, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Number of SFP Slots
2
Port/Expansion Slot Details
8 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Uplink
Shared SFP Slot
No
PoE (RJ-45) Port
No
Network (RJ-45)
Yes
Total Number of Expansion Slots
2
Green Environmental Attribute
Environmentally Friendly
Power Consumption
11 W
Ethernet Technology
Gigabit Ethernet
Uplink Port
Yes
Expansion Slot Type
SFP (mini-GBIC)
Layer Supported
2
Environmentally Friendly
Yes
Modular
Yes
Housing Material
Aluminum
Mounting Type
DIN Rail Mountable

Description

Ethernet Switch, Features Monitors and Controls Devices via CLI and Web Configuration, Pre-Installed DIN Rail Clip, Port Type RJ45, IP Rating IP30, Mounting Location DIN Rail, Network Interface 10/100/1000 Mbps, Number of Ports 8, Switch Management Managed, Manufacturer Warranty Length 3 yr, Maximum Input Voltage 20/48V DC, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Depth 4 in, Overall Height 4 5/8 in, Overall Width 2 in
