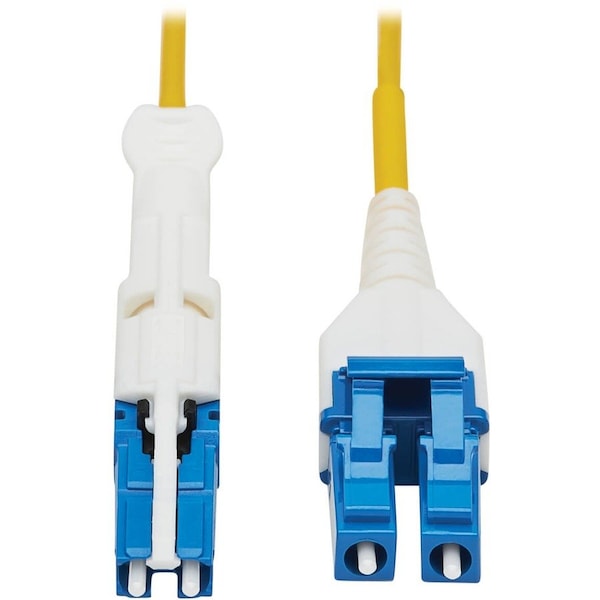

Fiber Cable

Mfr # N381L-05M
Zoro # G916137200

45.65

Key Features

Mode

Single Mode

End 1 Connection Type

End 2 Connection Type

Jacket Material

LSZH

Fiber Count

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: N381L-05M
Zoro #: G916137200
UPC #: 037332258038
Country of Origin: China

Dimensions

Bandwidth: 1 GBps @ 2km or Less @ 1310nm, 10 GBps @ 2km or Less @ 1310nm, 100 GBps @ 2km or Less @ 1310nm, 25 GBps @ 2km or Less @ 1310nm, 40 GBps @ 2km or Less @ 1310nm, 400 GBps @ 2km or Less @ 1310nm
Clad Dimension: 125 micron
Overall Length: 16.4 ft
Core Diameter: 9 micron
Cable Diameter: 600 micron
Wire Rope Length: 16.4 ft
Length: 16.4 ft

Details

Item: Fiber Cable
Mode: Single Mode
End 1 Connection Type: CS
End 2 Connection Type: LC
Jacket Material: LSZH
Fiber Count: 2
Number of Fibers: Duplex
Fire Rating: Riser
Attenuation: 0.22 dB/km @ 1550 Nanometer; 0.36 dB/km @ 1310 Nanometer
NEC Article and Type: Not Rated
Standards: REACH, RoHS Compliant
Jacket Color: Yellow
End 2 Connection Gender: Male
Operating Temperature - Minimum: -4 Degrees F
Maximum Distance: 2,000m @ 1310nm
Product Type: Patch Cord
End 1 Connection Gender: Male
Fiber Type: OS2
Includes Jacket: Jacketed
End 1 Contact Type Finish: UPC
Operating Temperature - Maximum: 140 Degrees F
End 2 Contact Type Finish: UPC

Description

Fiber Cable, Mode Single Mode, End 1 Connection Type CS, End 2 Connection Type LC, Jacket Color Yellow, Overall Length 16.4 ft, Jacket Material LSZH, Cable Diameter 600 micron, Clad Dimension 125 micron, Core Diameter 9 micron, Fiber Count 2, Number of Fibers Duplex, Fire Rating Riser, Attenuation 0.22 dB/km @ 1550 Nanometer; 0.36 dB/km @ 1310 Nanometer
