  11. Fiber Optic Cable, Dplx, MMF, 50, LC/SC, 50m

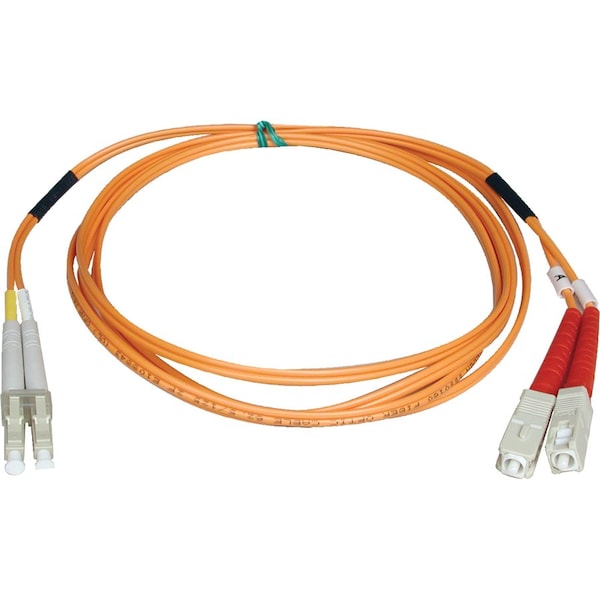

Tripp Lite Fiber Optic Cable, Dplx, MMF, 50, LC/SC, 50m N516-15M - main

Fiber Optic Cable, Dplx, MMF, 50, LC/SC, 50m

  • Mfr # N516-15M

  • Zoro # G5181946

product price: $32.15
/ea

Key Features

Number of Fibers
2
Color
Orange
Jacket Type
Plenum
Cable Length
49.20 ft
Side B - Connector 1
SC DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N516-15M
Zoro #
G5181946
UPC #
037332119551
Country of Origin
China

Dimensions

Cable Length
49.20 ft
Core Diameter
50 micron
Cable Length (ft.)
49.2
Cable Length (in.)
590.6
Clad Diameter
125 micron
Clad Diameter (microns)
125
Core Diameter (microns)
50
Fiber Cable Length
15M (49.2 ft)
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,Dplx,MMF,50,LC/SC,50m
Number of Fibers
2
Color
Orange
Jacket Type
Plenum
Side B - Connector 1
SC DUPLEX (MALE)
Optical Mode
OM2
Technology
Multimode
Side A - Connector 1
LC DUPLEX (MALE)
Network Speed
1Gbps
Approvals
FDDI and OFNR rated
Certifications & Standards
OFNR(riser rated), FDDI
Product Type
Network Cable
Connector on First End Details
2 x LC - Male
Additional Information
Fiber type: all glass graded index, Core diameter: two 50+/-3 microns, CLAD diameter: 125+/-2 microns, Primary coating diameter: 245+/-15 microns, Primary coating material: acrylate, Secondary coating diameter: 900+/-50 microns, Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numeric apeture: .275 nominal, Proof test level: 100,000 PSI, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze
Product Name
Duplex Fibre Channel Patch Cable
Cable Type
Fiber Optic
Package Contents
Duplex Fibre Channel Patch Cable, 15M duplex MMF cable LC/SC 50/125 fiber
Cable Characteristic
Patch Cable
Connector on Second End Details
2 x SC Network - Male
Cable Jacket Material
LSZH
Cable Jacket Color
Orange
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Insertion Loss
LC ≤ 0.20 dB; SC ≤ 0.20 dB
Cable Jacket Rating
OFNR
Network Compatibility
1 Gbps (Gigabit); 10 Gbps; 25 Gbps
Operating Humidity Range
5% to 85% RH, Non-Condensing
Package Includes
15M duplex MMF cable LC/SC 50/125 fiber
Connector Color
White; Beige
Endface Polish
PC
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Storage Humidity Range
35% to 65% RH, Non-Condensing

Description

Fiber Optic Cable,Dplx,MMF,50,LC/SC,50m
