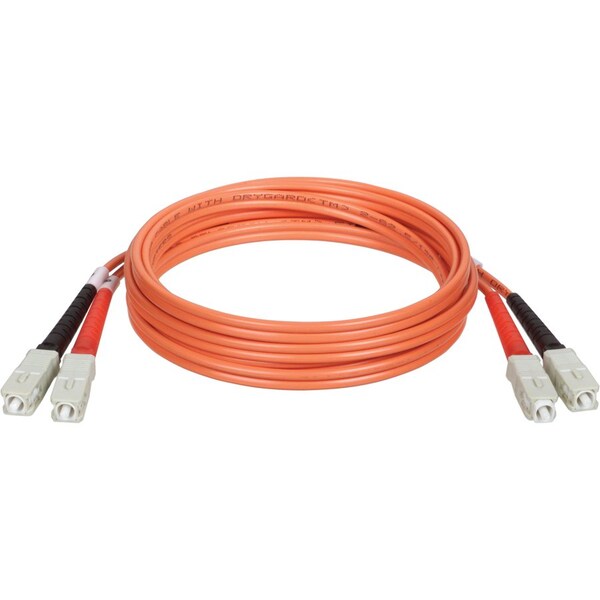

Tripp Lite Fiber Optic Cable, MMF, 62.5, SC/SC, 15m N306-15M - main

Fiber Optic Cable, MMF, 62.5, SC/SC, 15m

  • Mfr # N306-15M

  • Zoro # G5183328

product price: $38.75
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Cable Length
49.20 ft
Network Speed
1Gbps
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N306-15M
Zoro #
G5183328
UPC #
037332117625
Country of Origin
China

Dimensions

Cable Length
49.20 ft
Cable Length (ft.)
49.2
Core Diameter
62.5 micron
Cable Length (in.)
590.6
Clad Diameter
125 micron
Core/Cladding Diameter
62.5/125 µm
Fiber Cable Length
15M (49.2 ft)
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Core Diameter (microns)
62.5
Clad Diameter (microns)
125

Details

Item
Fiber Optic Cable,MMF,62.5,SC/SC,15m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Network Speed
1Gbps
Side A - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Approvals
FDDI and OFNR rated
Optical Mode
OM1
Side B - Connector 1
SC DUPLEX (MALE)
Product Type
Network Cable
Cable Type
Fiber Optic
Connector on Second End Details
2 x SC Network - Male
Package Contents
Fiber Optic Duplex Patch Cable, 15Meter (50ft) duplex MMF cable SC/SC 62.5/125 fiber
Additional Information
Duplex multimode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Cable Characteristic
Patch Cable
Product Name
Fiber Optic Duplex Patch Cable
Connector on First End Details
2 x SC Network - Male
Product Color
Orange
Certifications & Standards
FDDI, OFNR
Connector Color
White
Operating Humidity Range
5% to 85% RH, Non-Condensing
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Storage Humidity Range
35% to 65% RH, Non-Condensing
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Package Includes
15Meter (50ft) duplex MMF cable SC/SC 62.5/125 fiber
Cable Jacket Material
LSZH
Cable Jacket Color
Orange
Cable Jacket Rating
OFNR
Insertion Loss
≤ 0.20 dB
Endface Polish
PC

Description

Fiber Optic Cable,MMF,62.5,SC/SC,15m
