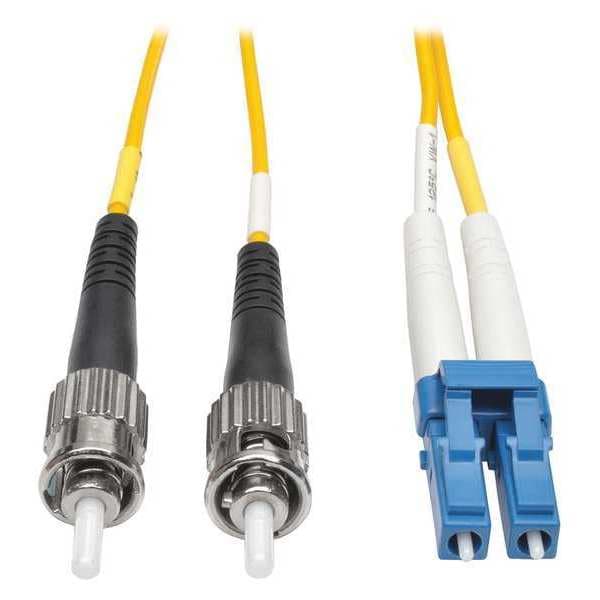

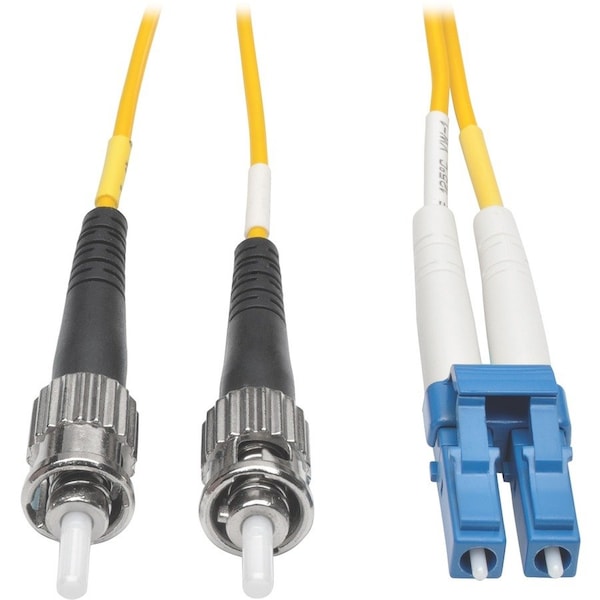

Tripp Lite Fiber Optic Cable, Dplx, SMF, 8.3, LC/ST, 5m N368-05M - main

Fiber Optic Cable, Dplx, SMF, 8.3, LC/ST, 5m

  • Mfr # N368-05M

  • Zoro # G5182521

product price: $21.29
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Yellow
Cable Length
16.40 ft
Core Diameter
8.3 micron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N368-05M
Zoro #
G5182521
UPC #
037332134820
Country of Origin
China

Dimensions

Cable Length
16.40 ft
Core Diameter
8.3 micron
Clad Diameter
125 micron
Cable Length (in.)
196.9
Cable Length (ft.)
16.4
Core/Cladding Diameter
9/125 µm
Clad Diameter (microns)
125
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Core Diameter (microns)
9
Fiber Cable Length
5M (16.4 ft)

Details

Item
Fiber Optic Cable,Dplx,SMF,8.3,LC/ST,5m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Yellow
Technology
Singlemode
Side A - Connector 1
LC DUPLEX (MALE)
Optical Mode
OS2
Side B - Connector 1
ST DUPLEX (MALE)
Approvals
FDDI and OFNR rated
Cable Jacket Rating
LSZH
Product Type
Network Cable
Cable Type
Fiber Optic
Certifications & Standards
FDDI, OFNR
Connector on First End Details
2 x LC - Male
Product Color
Yellow
Cable Characteristic
Patch Cable
Additional Information
Duplex singlemode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Package Contents
Fiber Optic Duplex Patch Cable, 5-meter ( 15ft ) Duplex Singlemode Fiber Patch Cable, LC/ST
Product Name
Fiber Optic Duplex Patch Cable
Connector on Second End Details
2 x ST - Male
Package Includes
5M (16.4-ft.) Duplex Singlemode Fiber Patch Cable, LC/ST
Cable Jacket Color
Yellow
Cable Jacket Material
LSZH
Insertion Loss
≤ 0.30 dB
Endface Polish
UPC
Storage Humidity Range
35% to 65% RH, Non-Condensing
Network Compatibility
1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Connector Color
Black; Blue; White
Attenuation @ 1310NM
0.36 dB/km
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 1550NM
0.22 dB/km
Operating Humidity Range
5% to 85% RH, Non-Condensing

Description

Fiber Optic Cable,Dplx,SMF,8.3,LC/ST,5m
