  11. Fiber Optic Cable, Dplx, SMF, 8.3, SC/SC, 5m

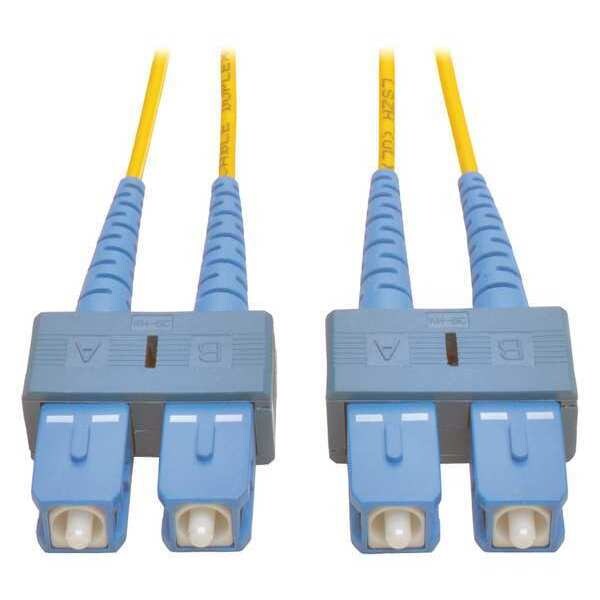

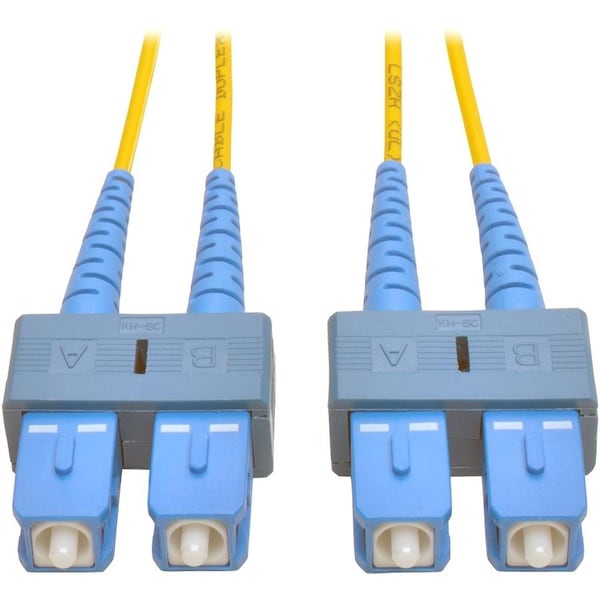

Tripp Lite Fiber Optic Cable, Dplx, SMF, 8.3, SC/SC, 5m N356-05M - main

Fiber Optic Cable, Dplx, SMF, 8.3, SC/SC, 5m

  • Mfr # N356-05M

  • Zoro # G5182661

product price: $19.39
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Yellow
Cable Length
16.40 ft
Side B - Connector 1
SC DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N356-05M
Zoro #
G5182661
UPC #
037332130600
Country of Origin
China

Dimensions

Cable Length
16.40 ft
Core Diameter
8.3 micron
Cable Length (in.)
196.9
Cable Length (ft.)
16.4
Clad Diameter
125 micron
Core/Cladding Diameter
9/125 µm
Core Diameter (microns)
9
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Clad Diameter (microns)
125
Fiber Cable Length
5M (16.4 ft)

Details

Item
Fiber Optic Cable,Dplx,SMF,8.3,SC/SC,5m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Yellow
Side B - Connector 1
SC DUPLEX (MALE)
Side A - Connector 1
SC DUPLEX (MALE)
Technology
Singlemode
Optical Mode
OS2
Cable Jacket Rating
LSZH
Approvals
FDDI and OFNR rated
Product Color
Yellow
Certifications & Standards
FDDI
Package Contents
Fiber Optic Duplex Patch Cable, 5-meter ( 15ft ) Duplex Singlemode Fiber Patch Cable, SC/SC
Cable Type
Fiber Optic
Connector on Second End Details
2 x SC Network - Male
Additional Information
Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Duplex singlemode fiber is most commonly used in LAN applications
Connector on First End Details
2 x SC Network - Male
Product Name
Fiber Optic Duplex Patch Cable
Product Type
Network Cable
Cable Characteristic
Patch Cable
Cable Jacket Material
LSZH
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 1550NM
0.22 dB/km
Cable Jacket Color
Yellow
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Network Compatibility
1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps
Connector Color
Blue
Insertion Loss
≤ 0.30 dB
Endface Polish
UPC
Attenuation @ 1310NM
0.36 dB/km
Operating Humidity Range
5% to 85% RH, Non-Condensing
Package Includes
5M (16.4-ft.) Duplex Singlemode Fiber Patch Cable, SC/SC
Storage Humidity Range
35% to 65% RH, Non-Condensing

Description

Fiber Optic Cable,Dplx,SMF,8.3,SC/SC,5m
