  11. Fiber Optic Cable, MMF, 62.5, LC/SC, 25m

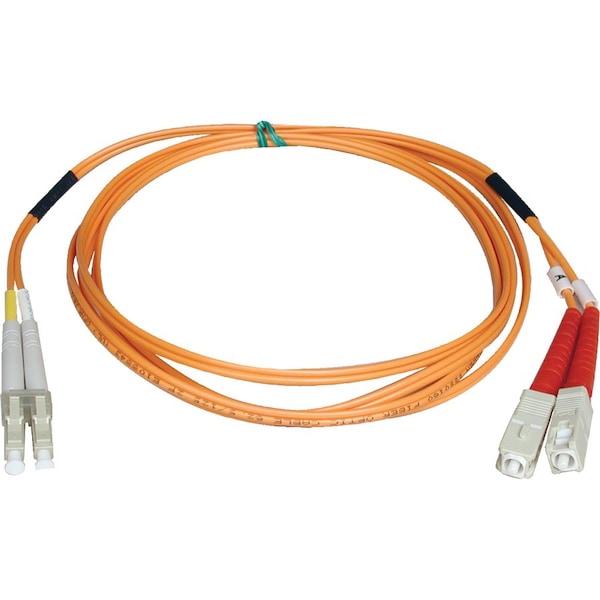

Tripp Lite Fiber Optic Cable, MMF, 62.5, LC/SC, 25m N316-25M - main

Fiber Optic Cable, MMF, 62.5, LC/SC, 25m

  • Mfr # N316-25M

  • Zoro # G5183090

product price: $52.35
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Cable Length
80 ft
Network Speed
1Gbps
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N316-25M
Zoro #
G5183090
UPC #
037332135025
Country of Origin
China

Dimensions

Cable Length
80 ft
Cable Length (ft.)
82
Cable Length (in.)
984.3
Clad Diameter
125 micron
Core Diameter
62.5 micron
Core/Cladding Diameter
62.5/125 µm
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Clad Diameter (microns)
125
Fiber Cable Length
25M (82 ft)
Core Diameter (microns)
62.5

Details

Item
Fiber Optic Cable,MMF,62.5,LC/SC,25m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Network Speed
1Gbps
Side A - Connector 1
LC DUPLEX (MALE)
Optical Mode
OM1
Side B - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Approvals
FDDI and OFNR rated
Connector on First End Details
2 x SC Network - Male
Product Color
Orange
Product Type
Network Cable
Certifications & Standards
FDDI
Cable Type
Fiber Optic
Cable Characteristic
Patch Cable
Package Contents
Fiber Optic Duplex Patch Cable, 25 meter ( 80ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber
Connector on Second End Details
2 x LC - Male
Product Name
Fiber Optic Duplex Patch Cable
Additional Information
Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Connector Color
White; Beige
Cable Jacket Color
Orange
Attenuation @ 850NM
3.0 dB/km
Storage Humidity Range
35% to 65% RH, Non-Condensing
Cable Jacket Rating
OFNR
Package Includes
25 meter ( 80ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber
Endface Polish
PC
Operating Humidity Range
5% to 85% RH, Non-Condensing
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Material
LSZH
Insertion Loss
LC ≤ 0.20 dB; SC ≤ 0.20 dB
Network Compatibility
1 Gbps (Gigabit); 10 Gbps

Description

Fiber Optic Cable,MMF,62.5,LC/SC,25m
