  11. Fiber Optic Cable, MMF, 62.5, ST/ST, 1m

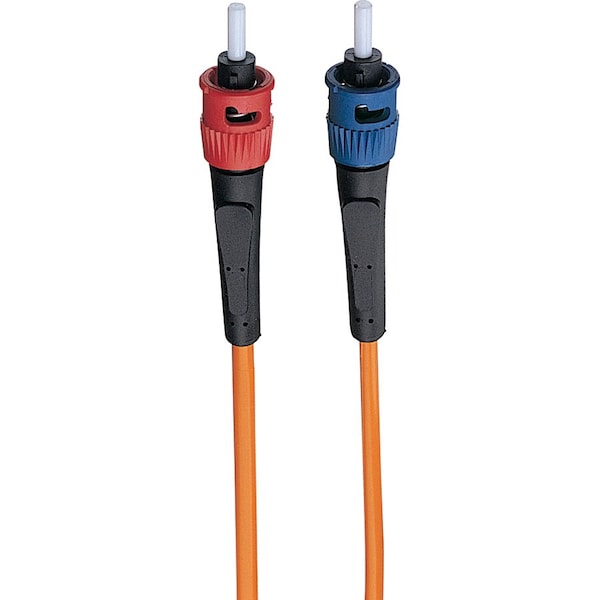

Tripp Lite Fiber Optic Cable, MMF, 62.5, ST/ST, 1m N302-003 - main

Fiber Optic Cable, MMF, 62.5, ST/ST, 1m

  • Mfr # N302-003

  • Zoro # G5183529

product price: $17.15
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Cable Length
3 ft
Cable Length (in.)
36
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N302-003
Zoro #
G5183529
UPC #
037332013217
Country of Origin
China

Dimensions

Cable Length
3 ft
Cable Length (in.)
36
Core Diameter
62.5 micron
Clad Diameter
125 micron
Cable Length (ft.)
3
Fiber Cable Length
0.9M (3 ft)
Core Diameter (microns)
62.5
Clad Diameter (microns)
125
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,MMF,62.5,ST/ST,1m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Technology
Multimode
Optical Mode
OM1
Side A - Connector 1
ST DUPLEX (MALE)
Network Speed
1Gbps
Approvals
FDDI and OFNR rated
Side B - Connector 1
ST DUPLEX (MALE)
Package Contents
Duplex Fiber Optic Patch Cable, 3-ft. Duplex MMF Cable ST/ST 62.5/125 Fiber
Product Type
Network Cable
Certifications & Standards
OFNR(riser rated), FDDI
Connector on Second End Details
2 x ST - Male
Cable Characteristic
Patch Cable
Cable Type
Fiber Optic
Connector on First End Details
2 x ST - Male
Additional Information
Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze., Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Product Name
Duplex Fiber Optic Patch Cable
Storage Humidity Range
35% to 65% RH, Non-Condensing
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Package Includes
3-ft. (0.91 m) Duplex MMF Cable ST/ST 62.5/125 Fiber
Insertion Loss
≤ 0.20 dB
Cable Jacket Material
LSZH
Cable Jacket Rating
OFNR
Connector Color
Black
Cable Jacket Color
Orange
Endface Polish
PC
Operating Humidity Range
5% to 85% RH, Non-Condensing

Description

Fiber Optic Cable,MMF,62.5,ST/ST,1m
