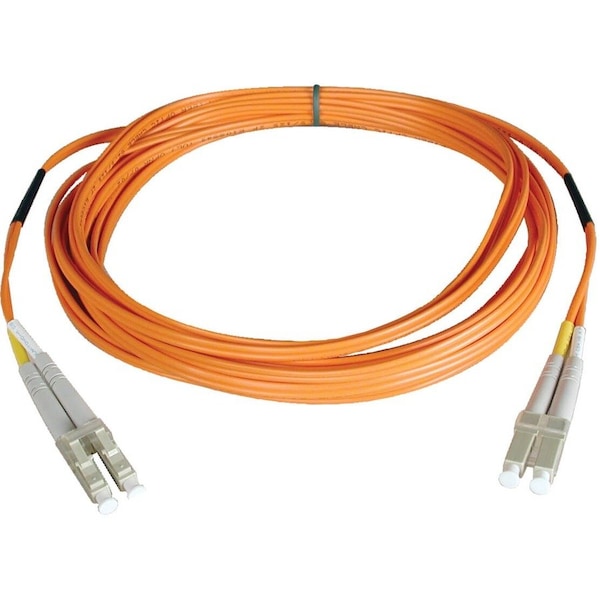

Fiber Optic Patch Cord, LC/LC, 3m, Orange

  • Mfr # N320-03M

  • Zoro # G0274373

product price:
$
18.89
/ea

Key Features

Mode
Multi-Mode
End 1 Connection Type
LC
End 2 Connection Type
LC
Jacket Color
Orange
Overall Length
9.8 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N320-03M
Zoro #
G0274373
UPC #
037332098061
Country of Origin
China

Dimensions

Overall Length
9.8 ft
Clad Dimension
125 micron
Core Dimension
62.5 Micrometer
Bandwidth
1 GBps, 10 GBps
Length - Patch Cord
3.0 m
Length
9.8 ft
Core Dimension - Fiber Optic Cable
62.5 Micrometer
Cable Length
10 ft
Cable Length (ft.)
9.8
Core Diameter
62.5 micron
Clad Diameter
125 micron
Cable Length (in.)
118.1
Core/Cladding Diameter
62.5/125 µm
Fiber Cable Length
3M (9.8 ft)
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Clad Diameter (microns)
125
Core Diameter (microns)
62.5
Wire Rope Length
9.8 ft

Details

Item
Fiber Optic Patch Cord
Mode
Multi-Mode
End 1 Connection Type
LC
End 2 Connection Type
LC
Jacket Color
Orange
Jacket Material
PVC
Fiber Count
2
Number of Fibers
Duplex
Fire Rating
Riser
Attenuation
3.0 dB/km @ 850 Nanometers
NEC Article and Type
OFNR
Standards
FDDI, REACH, RoHS Compliant
Fiber Count - Fiber Optic Cable
2
Simplex/Duplex/Multifiber
Duplex
Single Mode/Multi-Mode
Multi-Mode
Jacket Type
PVC
Item - Data Cable
Fiber Optic Patch Cord
Fire Rating - Data Cable
Riser
Fiber Optic Connector Type
LC/LC
Jacket Material - Wire and Cable
PVC
Construction
Zipcord Fiber
Connector Type - Patch Cord
LC, LC
Color
Orange
Approvals
FDDI and OFNR rated
Side B - Connector 1
LC DUPLEX (MALE)
Optical Mode
OM1
Technology
Multimode
Side A - Connector 1
LC DUPLEX (MALE)
Network Speed
1Gbps
Certifications & Standards
FDDI, OFNR
Product Type
Network Cable
Package Contents
Fiber Optic Patch Cable, 3M Duplex MMF Cable LC/LC 62.5/125 Micron Fiber
Additional Information
Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive, Duplex multimode fiber is most commonly used in LAN applications where links are typically 10 feet or less
Connector on First End Details
2 x LC - Male
Cable Characteristic
Patch Cable
Product Name
Fiber Optic Patch Cable
Cable Type
Fiber Optic
Connector on Second End Details
2 x LC - Male
Maximum Distance
3.0dB/km @ 800nm
Fiber Material
Glass
Storage Humidity Range
35% to 65% RH, Non-Condensing
Cable Jacket Color
Orange
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Material
LSZH
Operating Humidity Range
5% to 85% RH, Non-Condensing
Insertion Loss
≤ 0.20 dB
Attenuation @ 850NM
3.0 dB/km
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Rating
OFNR
Endface Polish
PC
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Connector Color
Gray
Package Includes
3M Duplex MMF Cable LC/LC 62.5/125 Micron Fiber

Description

Fiber Optic Patch Cord, Mode Multi-Mode, End 1 Connection Type LC, End 2 Connection Type LC, Jacket Color Orange, Overall Length 9.8 ft, Jacket Material PVC, Clad Dimension 125 micron, Core Diameter 62.5 micron, Fiber Count 2, Number of Fibers Duplex, Fire Rating Riser, Attenuation 3.0 dB/km @ 850 Nanometers, Bandwidth 1 GBps, 10 GBps, Fiber Material Glass, Maximum Distance 3.0dB/km @ 800nm, NEC Article and Type OFNR, Standards FDDI, REACH, RoHS Compliant
