  11. Fiber Optic Patch Cord, LC/ST, 1m, Multi

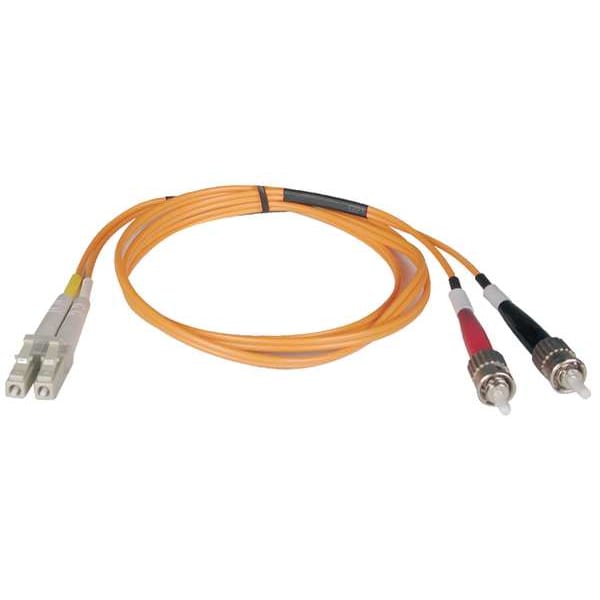

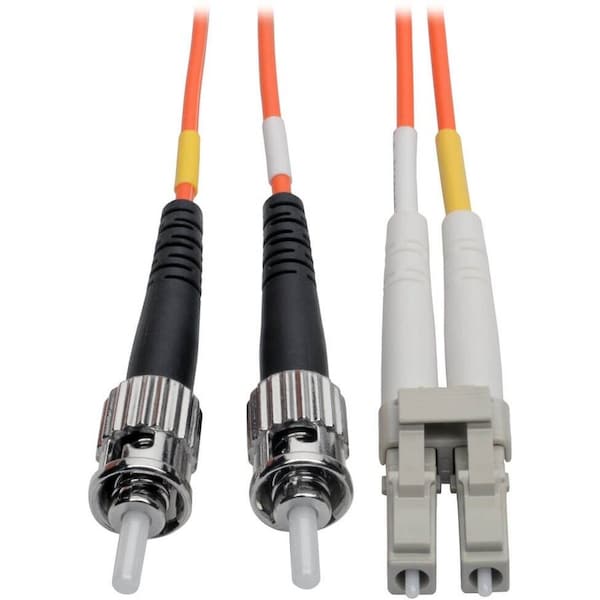

Tripp Lite Fiber Optic Patch Cord, LC/ST, 1m, Multi N318-01M - main

Fiber Optic Patch Cord, LC/ST, 1m, Multi

  • Mfr # N318-01M

  • Zoro # G0769045

product price: $19.39
/ea

Key Features

Mode
Multi-Mode
End 1 Connection Type
LC
End 2 Connection Type
ST
Jacket Color
Orange
Overall Length
3.3 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N318-01M
Zoro #
G0769045
UPC #
037332117557
Country of Origin
China

Dimensions

Overall Length
3.3 ft
Clad Dimension
125 micron
Core Dimension
62.5 Micrometer
Bandwidth
1 GBps, 10 GBps
Length - Patch Cord
1.0 m
Length
1m
Core Dimension - Fiber Optic Cable
62.5 Micrometer
Cable Length
3.30 ft
Core Diameter
62.5 micron
Clad Diameter
125 micron
Cable Length (in.)
39.4
Cable Length (ft.)
3.3
Core Diameter (microns)
62.5
Fiber Cable Length
1M (3.3 ft)
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Clad Diameter (microns)
125

Details

Item
Fiber Optic Patch Cord
Mode
Multi-Mode
End 1 Connection Type
LC
End 2 Connection Type
ST
Jacket Color
Orange
Jacket Material
PVC
Fiber Count
2
Number of Fibers
Duplex
Fire Rating
Riser
Attenuation
3.0 dB/km @ 850 Nanometers
NEC Article and Type
OFNR
Standards
FDDI, REACH, RoHS Compliant
Fiber Optic Connector Type
LC/ST
Simplex/Duplex/Multifiber
Duplex
Fiber Count - Fiber Optic Cable
2
Single Mode/Multi-Mode
Multi-Mode
Fire Rating - Data Cable
Riser
Jacket Material - Wire and Cable
PVC
Jacket Type
PVC
Construction
Zipcord Fiber
Connector Type - Patch Cord
LC, ST
Item - Data Cable
Fiber Optic Patch Cord
Color
Orange
Network Speed
1Gbps
Approvals
FDDI and OFNR rated
Optical Mode
OM1
Side A - Connector 1
LC DUPLEX (MALE)
Technology
Multimode
Side B - Connector 1
ST DUPLEX (MALE)
Product Name
Duplex Fiber Optic Patch Cable
Additional Information
Insertion loss testing performed on every connector (0.2db typical) and provided with cable., Beveled edge on ends of glass makes insertion of plug a breeze., Fiber made from glass (not a polymer)., Color coded shrouds identify transmit and receive.
Cable Characteristic
Patch Cable
Package Contents
Duplex Fiber Optic Patch Cable, 1 meter duplex MMF LC/ST 62.5/125 fiber cable
Product Type
Network Cable
Connector on Second End Details
2 x ST - Male
Connector on First End Details
2 x LC - Male
Cable Type
Fiber Optic
Certifications & Standards
FDDI
Maximum Distance
3.0dB/km @ 800nm
Fiber Material
Glass
Cable Jacket Color
Orange
Connector Color
Black; Gray
Operating Humidity Range
5% to 85% RH, Non-Condensing
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Rating
OFNR
Cable Jacket Material
LSZH
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Package Includes
1 meter duplex MMF LC/ST 62.5/125 fiber cable
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Insertion Loss
LC ≤ 0.20 dB; ST ≤ 0.20 dB
Endface Polish
PC
Storage Humidity Range
35% to 65% RH, Non-Condensing

Description

Fiber Optic Patch Cord, Mode Multi-Mode, End 1 Connection Type LC, End 2 Connection Type ST, Jacket Color Orange, Overall Length 3.3 ft, Jacket Material PVC, Clad Dimension 125 micron, Core Diameter 62.5 micron, Fiber Count 2, Number of Fibers Duplex, Fire Rating Riser, Attenuation 3.0 dB/km @ 850 Nanometers, Bandwidth 1 GBps, 10 GBps, Fiber Material Glass, Maximum Distance 3.0dB/km @ 800nm, NEC Article and Type OFNR, Standards FDDI, REACH, RoHS Compliant
