  11. Fiber Optic Patch Cord, SC/SC, 1m, Orange

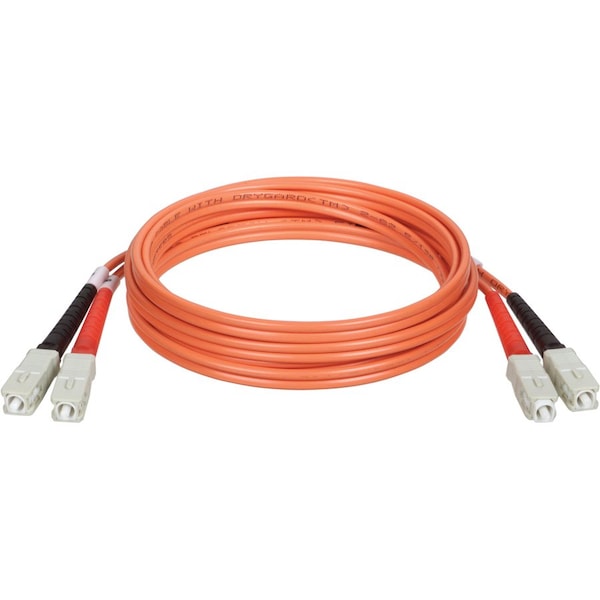

Tripp Lite Fiber Optic Patch Cord, SC/SC, 1m, Orange N306-003 - main

Fiber Optic Patch Cord, SC/SC, 1m, Orange

  • Mfr # N306-003

  • Zoro # G0773735

product price: $11.89
/ea

Key Features

Mode
Multi-Mode
End 1 Connection Type
SC
End 2 Connection Type
SC
Jacket Color
Orange
Overall Length
3 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N306-003
Zoro #
G0773735
UPC #
037332013279
Country of Origin
China

Dimensions

Overall Length
3 ft
Clad Dimension
125 micron
Core Dimension
62.5 Micrometer
Bandwidth
1 GBps, 10 GBps
Length
1m
Length - Patch Cord
1.0 m
Core Dimension - Fiber Optic Cable
62.5 Micrometer
Cable Length
3 ft
Clad Diameter
125 micron
Cable Length (in.)
36
Cable Length (ft.)
3
Core Diameter
62.5 micron
Core/Cladding Diameter
62.5/125 µm
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Core Diameter (microns)
62.5
Fiber Cable Length
0.9M (3 ft)
Clad Diameter (microns)
125

Details

Item
Fiber Optic Patch Cord
Mode
Multi-Mode
End 1 Connection Type
SC
End 2 Connection Type
SC
Jacket Color
Orange
Jacket Material
PVC
Fiber Count
2
Number of Fibers
Duplex
Fire Rating
Riser
Attenuation
3.0 dB/km @ 850 Nanometers
NEC Article and Type
OFNR
Standards
FDDI, REACH, RoHS Compliant
Fiber Optic Connector Type
SC/SC
Jacket Type
PVC
Jacket Material - Wire and Cable
PVC
Single Mode/Multi-Mode
Multi-Mode
Simplex/Duplex/Multifiber
Duplex
Item - Data Cable
Fiber Optic Patch Cord
Fiber Count - Fiber Optic Cable
2
Connector Type - Patch Cord
SC, SC
Fire Rating - Data Cable
Riser
Color
Orange
Network Speed
1Gbps
Approvals
FDDI and OFNR rated
Optical Mode
OM1
Side B - Connector 1
SC DUPLEX (MALE)
Side A - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Compatibility
Network Interface Card Fiber optic card requiring multimode duplex cable with SC/SC connectors
Certifications & Standards
FDDI, OFNR
Package Contents
Fiber Optic Duplex Patch Cable, 3-ft. duplex MMF cable SC/SC 62.5/125 fiber
Connector on Second End Details
2 x SC Network - Male
Additional Information
Applications: LAN, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Product Color
Orange
Cable Type
Fiber Optic
Product Name
Fiber Optic Duplex Patch Cable
Connector on First End Details
2 x SC Network - Male
Cable Characteristic
Patch Cable
Product Type
Network Cable
Maximum Distance
3.0dB/km @ 800nm
Fiber Material
Glass
Connector Color
White
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Operating Humidity Range
5% to 85% RH, Non-Condensing
Endface Polish
PC
Insertion Loss
≤ 0.20 dB
Attenuation @ 850NM
3.0 dB/km
Cable Jacket Rating
OFNR
Package Includes
3-ft. (0.91 m) duplex MMF cable SC/SC 62.5/125 fiber
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Cable Jacket Material
LSZH
Cable Jacket Color
Orange
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Storage Humidity Range
35% to 65% RH, Non-Condensing

Description

Fiber Optic Patch Cord, Mode Multi-Mode, End 1 Connection Type SC, End 2 Connection Type SC, Jacket Color Orange, Overall Length 3 ft, Jacket Material PVC, Clad Dimension 125 micron, Core Diameter 62.5 micron, Fiber Count 2, Number of Fibers Duplex, Fire Rating Riser, Attenuation 3.0 dB/km @ 850 Nanometers, Bandwidth 1 GBps, 10 GBps, Fiber Material Glass, Maximum Distance 3.0dB/km @ 800nm, NEC Article and Type OFNR, Standards FDDI, REACH, RoHS Compliant
