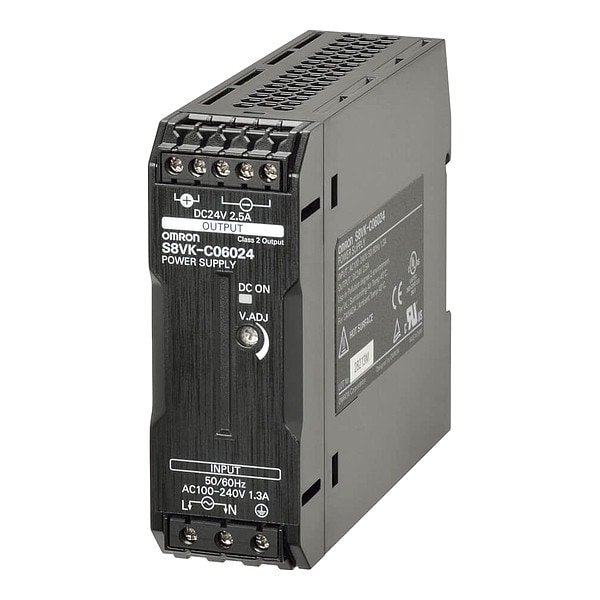

Switching Power Supply, 100/240V AC, 24V DC, 60 W, 2.5 A, Bracket

  • Mfr # S8VK-C06024
  • Zoro # G711248385
CAD Available
product price:
$
103.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage
100V AC to 240V AC, 90V DC to 350V DC
Output Voltage - Nominal
24 V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
Bracket
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S8VK-C06024
Zoro #
G711248385
UPC #
4548583357907
Country of Origin
China

Dimensions

Overall Height
3.73 in
Overall Width
1.26 in
Overall Depth
4.33 in
Depth
110 mm
Height
94.7 mm
Width
32 mm
Wire Size - Maximum
12 AWG
Wire Size - Minimum
22 AWG

Details

CAD Available
Yes
Item
Switching Power Supply
Input Voltage
100V AC to 240V AC, 90V DC to 350V DC
Output Voltage - Nominal
24 V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
Bracket
Phase
Single
Power Supply Style
Switching
Hold Up Time
24 msec, 117 msec
Power Rating
60W
Standards
CE, cRUus, CSA C22.2 No. 107.1/62368-1, EN55011 Class A, EN61204-3, EN62368-1, EN62477-1, UL Listed, UL508/62368-1
Hz
50/60 Hz
Output Amps
2.5A
Series
S8VK-C
Status Indicator
Green DC OK Signal
Style
Switching
IP Rating
IP20
Output Voltage
24V DC
Operating Temp. Range
-25 Degrees to 60 Degrees C
Phase - Electrical
Single
Start Up Time - Maximum
530 msec
Manufacturer Warranty
3 yr
Input Frequency - Nominal
50/60 Hz
Operating Temperature - Maximum
140 Degrees F
Mean Time Between Failures (MTBF)
630,000 hr
Current - Inrush
32 A
Operating Temperature - Minimum
-13 Degrees F
Special Features
Overload Protection, Overvoltage Protection, Series Operation
Maximum Efficiency @ 230V AC
88 %
Wire Connection Type
Screw Terminals
Hold Up Time - Minimum
24 msec, 117 msec
Input Frequency - Minimum
47 Hz
Input Frequency - Maximuim
450 Hz

Description

Switching Power Supply, Input Voltage 100 to 240V AC, 90 to 350V DC, Output Voltage 24 V DC, Power Rating 60 W, Output Amps 2.5 A, Mounting Bracket, Switching, Height 94.7 mm, Width 32 mm, Depth 110 mm, Series S8VK-C, Hz 50 Hz/60 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator Green DC OK Signal, Operating Temp. Range -25 Degrees to 60 Degrees C, Standards CE, cRUus, CSA C22.2 No. 107.1/62368-1, EN55011 Class A, EN61204-3, EN62368-1, EN62477-1, UL Listed, UL508/62368-1
