  11. Isolation Transformer, 500 VA, 120V AC, 120V AC

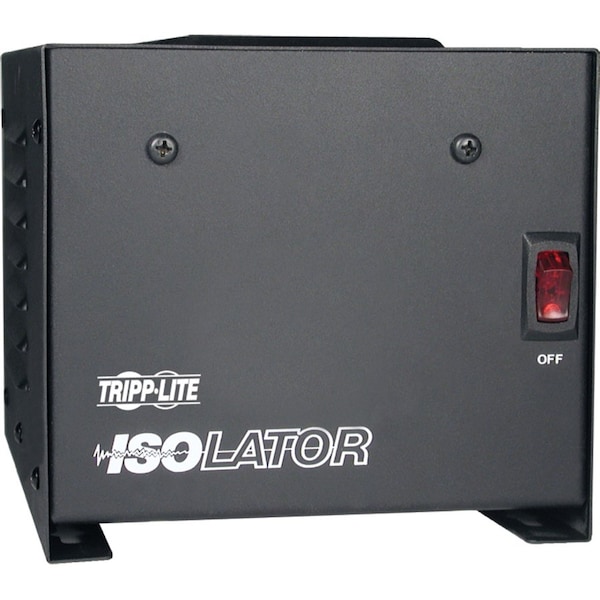

Tripp Lite Isolation Transformer, 500 VA, 120V AC, 120V AC IS-500 - main

Isolation Transformer, 500 VA, 120V AC, 120V AC

  • Mfr # IS-500

  • Zoro # G0559307

product price: $308.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120V AC
Output Voltage
120V AC
Power Rating
500 VA
Phase
1
Mounting - Transformer
Desk Top; Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IS-500
Zoro #
G0559307
UPC #
037332070050
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
5 1/2 in
Overall Width
6 1/4 in
Overall Depth
8 1/2 in
Cord Length
6 ft
Width
6.25 in
Height
5.5 in
Depth
8.5 in

Details

Item
Isolation Transformer
Input Voltage - Transformer
120V AC
Output Voltage
120V AC
Power Rating
500 VA
Phase
1
Mounting - Transformer
Desk Top; Wall
Hz - Electrical
60 Hz
IP Rating
Not Rated
Outdoor Rated - Transformer
No
Color
Black
Number of Outlets
4
NEMA Receptacle Configuration
5-15R
Phase - Electrical
1
Temp. Rise
Not Rated
NEMA Plug Configuration
5-15p
Includes
(4) Output Receptacles, Lighted Power Switch, Power Cord
Output Voltage - Transformer
120V AC
Enclosure Type
Small Tower
Standards
Federal Trade Agreements Act (TAA)
VA Rating - Transformer
500 VA
Total Harmonic Distortion
less than 1%
Cooling Method
Convection
Suppression Joule Rating
680
Let-through Voltage (Ring Wave)
L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
Output Amp Capacity
4.2
Noise Suppression Rating
33-65dB normal mode; > 80dB common mode
Protection Method
Yes, 4.5A circuit breaker
Efficiency
0.96
Let-through Voltage (Combination Wave)
L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
Compatibility
Telecommunications Systems, Diagnostic Testing & Precise Measurement Devices, Sophisticated CAD/CAM Workstations, Computer Networking Equipment, Sensitive Electronic Equipment
Output Receptacle Detail
4 x NEMA 5-15R
Additional Information
EMI/RFI Filtering, Overload Protection: 4.5A Circuit Breaker, Transformer based line isolation with Faraday shield, Let-through Voltage (Combination Wave): L-N: 250V L-G: 250V N-G: 0.5V, Let-through Voltage (Ring Wave): L-N: 20V L-G: 20V N-G: 0.5V, Cooling method: Convection
TAA Compliant
Yes
Package Contents
IS500 Isolation Transformer System, Instruction Manual with Warranty Information
Includes Circuit Breaker
Circuit Breaker Included
Temperature Rise
Not Rated

Description

Isolation Transformer, Input Voltage - Transformer 120V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 500 VA, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Number of Outlets 4, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Desk Top, Wall, Outdoor Rated - Transformer No, Temp. Rise Not Rated, Color Black
