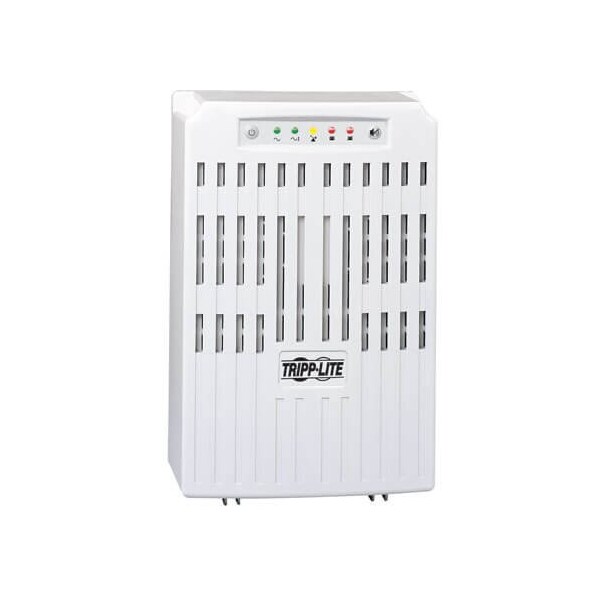

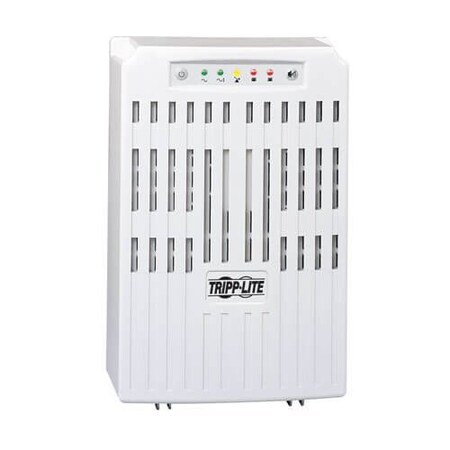

Item
Line Interactive UPS
VA Rating - UPS Systems
2.20kVA
UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
19 min/7 min
Ports
USB, DB9 Serial, and EPO
NEMA Plug Configuration
5-20P
Special Features
Extended Run
Transfer Time
2 to 4 msec
NEMA Receptacle Configuration
(7) 5-15R; (2) 5-15/20R; (1) L5-20R
Includes
PowerAlert Software and Cables
Automatic Volts Regulation
Yes
Standards
UL1778 (USA)cUL (Canada)NOM (Mexico)Emissions: FCC Class A
Fax/Modem Line Protection
No
Operating Temp. Range
122°F (50°C)
Capacity - Batteries
2200 VA/1600 W
Battery Type
Sealed Lead Acid (SLA)
For Use with
Telecommunication, Network, Server
Housing Material
Polycarbonate
Maximum Operating Temperature
122°F (50°C)
Application/Usage
Server, Network, Telecommunication
Load Capacity
2200 VA/1600 W
Package Contents
SmartPro VS Expandable Tower 2200VA UPS, SMART 2200VSXL UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual
Surge Energy Rating
1800 J
Status Indicators
Battery Charge Level, AC Line Power, Voltage Regulation, UPS Load Level, Low Battery / Replace Battery
Network Management
SNMP Manageable
Typical Battery Recharge Time
4 Hour
Alarm
Overload, Power Failure, Low Battery
Battery Characteristics
Maintenance-free
Total Number of Expansion Slots
1
Waveform Type
Pulse-width Modulated Sine Wave
Additional Information
Supports extended runtime operation with optional BP48V18 battery packs, Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment, Thermal Dissipation: Line mode: Maximum 139.5 BTU/hr, Battery mode: Maximum 473 BTU/hr
Audible Noise
Audible Noise < 47dBA At Front Side 1 Meter
High Availability UPS Features
Hot swappable batteries
Low Voltage Transfer to Battery Power (Setpoint)
79
External Battery Pack Compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Network Management Cards
SNMPWEBCARD; TLNETCARD ; WEBCARDLX
Battery Access
Battery access door
Input Circuit Breakers
20A
Relative Humidity
0 to 95%, non-condensing
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V
High Voltage Transfer to Battery Power (Setpoint)
147
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Primary Form Factor
Tower
Recommended Electrical Service
20A 120V
Output Voltage Regulation (Battery Mode)
+/- 5%
Internal UPS Replacement Battery Cartridge
RBC54
UPS AC Suppression Response Time
Instantaneous
UPS AC Suppression Joule Rating
480
Nominal Input Voltage(s) Supported
120V AC
Undervoltage Correction
Input voltages between 95 and 104 are boosted by 12%
Output Voltage Regulation (Line Mode)
-18% / +8%
Output Capacity (VA)
2200
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Rated input current (Maximum Load)
16A
AC Mode Efficiency Rating (100% Load)
0.94
Communications Cable
2 USB and 2 DB9 cables included
Package Includes
SMART 2200VSXL UPS System;USB & DB9 serial cabling;Instruction manual
EMI / RFI AC Noise Suppression
Yes
Severe Undervoltage Correction
Input voltages between 79 and 94 are boosted by 24%
Individually Controllable Load Banks
Yes
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
DC System Voltage (VDC)
48
Output Capacity (Watts)
1600
Communications Interface
Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)
Output AC Waveform (Battery Mode)
PWM sine wave
Battery Replacement Description
Hot-swappable, user replaceable batteries
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
Battery Recharge Rate (Included Batteries)
Less than 4 hours from 10% to 90% (typical, full load discharge)
Load Management Receptacles
Three switchable single-outlet 5-15R load banks
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
