Item

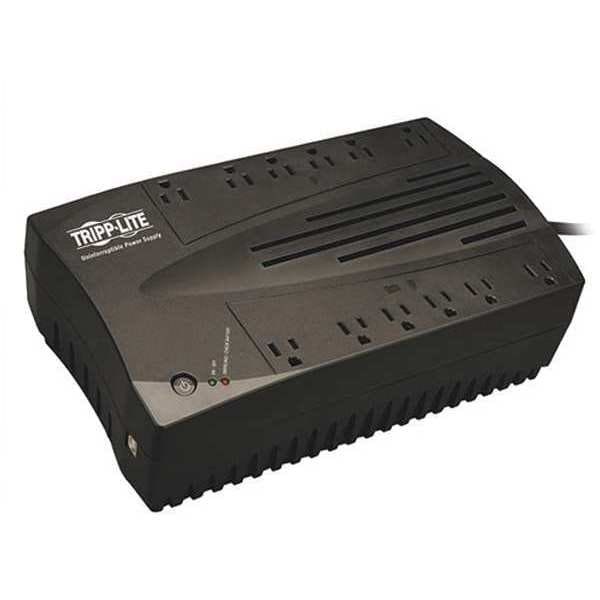

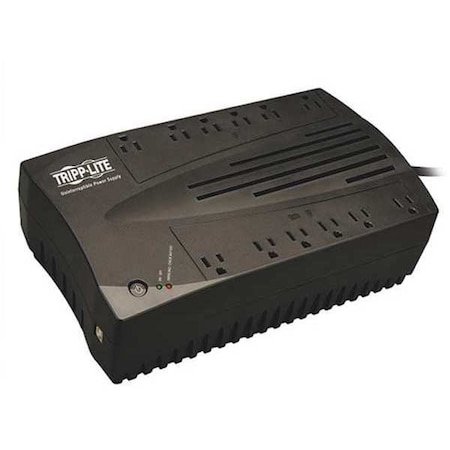

Line Interactive UPS
UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
8.60 min/3 min
Outlet Type
(6) Surge; (6) UPS/Surge
Transfer Time
1-4 milliseconds
NEMA Receptacle Configuration
(12) 5-15R
Standards
TAA Compliant, UL1778 (USA), CSA (Canada), NOM (Mexico), Meets FCC Part 15 Category B (EMI)
NEMA Plug Configuration
5-15P
Nominal Input Voltage(s) Supported
120V AC
Output Voltage Regulation (Line Mode)
120V (+8%, -21%)
Battery Access
Battery access door
UPS Dataline Suppression
1 line TEL/DSL (1 in / 2 out)
Individually Controllable Load Banks
No
Half Load Runtime (min.)
8.6 min. (225w)
Output Watt Capacity (Watts)
450
Communications Interface
USB (HID enabled)
DC System Voltage (VDC)
12
Nominal Output Voltage(s) Supported
110V; 115V; 120V
LED Indicators
2 LEDs indicate power status and overload/check battery status
Battery Recharge Rate (Included Batteries)
15.8 hours (10% to 90%)
Battery Replacement Description
Hot-swappable, user replaceable battery
EMI / RFI AC Noise Suppression
Yes
UPS Certifications
Meets FCC Part 15 Category B (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Communications Cable
USB interface cable included
Output AC Waveform (Battery Mode)
PWM sine wave
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
UPS AC Suppression Response Time
Instantaneous
Output Volt Amp Capacity (VA)
750
Rated input current (Maximum Load)
12A
AC Mode Efficiency Rating (100% Load)
0.98
Internal UPS Replacement Battery Cartridge
RBC51
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
High Voltage Transfer to Battery Power (Setpoint)
147
Full Load Runtime (min.)
3 min. (450w)
Relative Humidity
0 to 95%, non-condensing
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Undervoltage Correction
Input voltages between 83 and 104 are boosted by 14%
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Output Voltage Regulation (Battery Mode)
+/- 5%
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
High Availability UPS Features
Hot swappable batteries
Low Voltage Transfer to Battery Power (Setpoint)
83
AC Mode BTU / Hr. (Full Load)
27
Recommended Electrical Service
15A 120V
Overvoltage Correction
Input voltages between 129 and 147 are reduced by 12%
Installation Form Factors Supported with Included Accessories
Tower; Ultra-compact desktop; Wallmount
UPS AC Suppression Joule Rating
420
PowerAlert Software
For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Audible Alarm
Audible alarm indicates power-failure and overload status
Switches
Combination switch controls on/off power status and self-test operation
Primary Form Factor
Desktop
Maximum Operating Temperature
104°F (40°C)
Dataline Protection
RJ-11
Surge Energy Rating
420 J
Form Factor
Desktop, Wall Mountable
Waveform Type
Pulse-width Modulated Sine Wave
Status Indicators
Power Status, Overload/check battery status
Software Included
PowerAlert Monitoring
Package Contents
AVR750UTAA 750VA Desktop UPS, USB Cable, Instruction Manual
Alarm
Over Voltage, Power Failure
Protection Type
Under Voltage, Surge, EMI / RFI, Brownout, Black Out, Lightning, Over Voltage, Transient
Battery Management
User replaceable battery
Load Capacity
750 VA/450 W
Grounding Details
Included
UPS Applications
Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality
Package Includes
AVR750UTAA UPS System;USB cable;Instruction manual
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Product Compliance
FCC Part 15 Class B (USA); Trade Agreements Act (TAA)
Output Capacity (Watts)
450
