- MFR #
- TLP725
- Zoro #
- G0519312
- UPC #
- 037332138316
- Country of Origin
- China

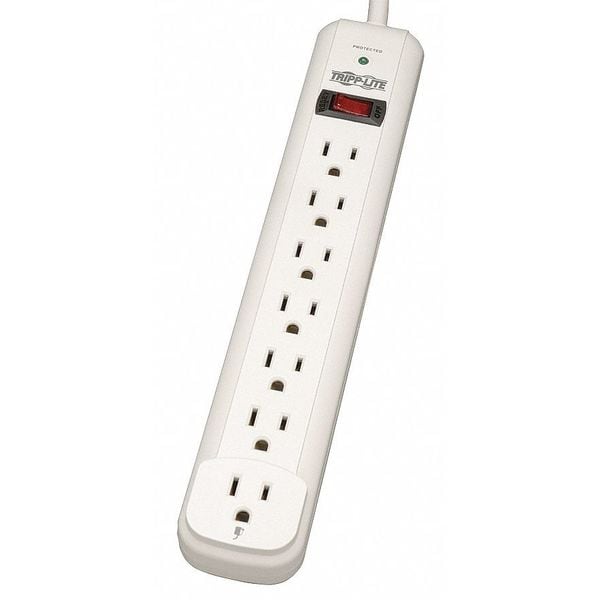

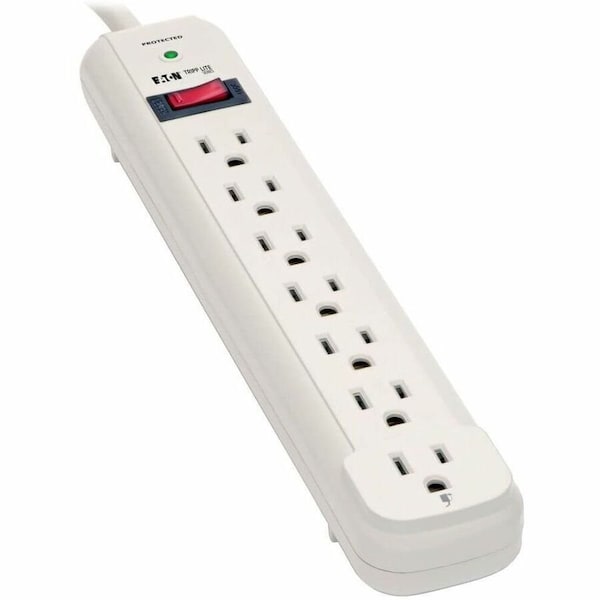

- Item
- Outlet Strip
- Type
- Surge
- Total Number of Outlets
- 7
- Receptacle Configuration
- 5-15R
- Plug Configuration
- 5-15P
- Color
- Light Gray
- Gauge/Conductor
- 14/3
- Standards
- Approvals RoHS; cUL / CSA (Canada); Exceeds IEEE 587 category A&B specifications; NOM (Mexico); UL1363 (Power Tap); UL1449 3rd Edition (AC Suppression)
- Number of Outlets
- 7
- Rated Joules
- 1,080
- NEMA Receptacle Configuration
- (7) NEMA 5-15R
- For Use With
- Desktop, Network Or Home Computing Application Requiring AC Protection
- Noise Attenuation
- Up to 20dB
- Coax Surge Protection
- No
- Medical Grade
- No
- Housing Material
- Plastic
- Mounting Style
- Keyhole
- Hz
- 50/60 Hz
- Outlet Center Distance
- 29mm Standard, 33mm Last Standard and Transformer
- NEMA Plug Configuration
- NEMA 5-15P
- Voltage
- 120VAC
- Power Indicator
- Yes
- Max. Amps
- 15A
- Max. Surge Current
- 72 kA
- Includes
- (7) Safety Covers, Instruction Manual and Warranty Information
- Circuit Breaker
- 1
- NEC Cord Designation
- SJT
- Number of Transformer Outlets
- 1
- Number of Outlet Rows
- 1
- Communication Port
- None
- Amps
- 15 A
- Outlet Surge Protection
- Yes
- Medical Facility Use
- Outside Patient Care Areas (UL 1363)
- USB Charging Port
- 0
- Trade Designation
- SJT
- Number of Conductors
- 3
- Application
- Home and Office
- Frequency
- 50/60 Hz
- Features
- Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
- Watts
- 1800W
- Input Voltage
- 120 V AC
- Certifications & Standards
- UL Listed Certification
- Surge Energy Rating
- 1080 J
- Output Voltage
- 120 V AC
- Power Handling
- 1800 VA
- Package Contents
- Protect IT! 7 Outlets Surge Suppressor, TLP725 Surge Suppressor, Instruction manual and warranty information
- Maximum Line Current
- 15 A
- AC Suppression Response Time
- < 1 ns
- Maximum Surge Amps
- 72000
- Outlet Orientation
- Single row
- Input Cord Details
- SJT
- AC Suppression Joule Rating
- 1080
- Circuit Breaker (amps)
- 15
- Network (Ethernet) Protection
- No
- Output Receptacles
- (7) 5-15R
- EMI / RFI Filtering
- Up to 20 dB
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- Diagnostic LED(s)
- Yes
- Nominal Input Voltage(s) Supported
- 120V AC
- Frequency Compatibility
- 50 / 60 Hz
- Diagnostic LED Details
- Built-in LED confirms suppressor "protection present" (green) status
- Mounting Holes or Slots
- Yes
- Material of Construction
- Plastic
- Outlets Measurement (Center to Center)
- Distance between standard outlets = 29mm; Distance between last standard outlet and transformer outlet = 33mm
- Package Includes
- TLP725 Protect It! 7-Outlet Surge Protector, Light Gray Housing;Owner's manual
- Maximum Current
- 15 A
- Rated Energy Absorption
- 1,080 J
- Medical Facility Use UL Rating
- UL 1363
- Plug Style
- Straight
- Product Type
- Surge Protector Outlet Strip
- Maximum Surge Current
- 72 kA
- Number of Circuit Breakers
- 1
