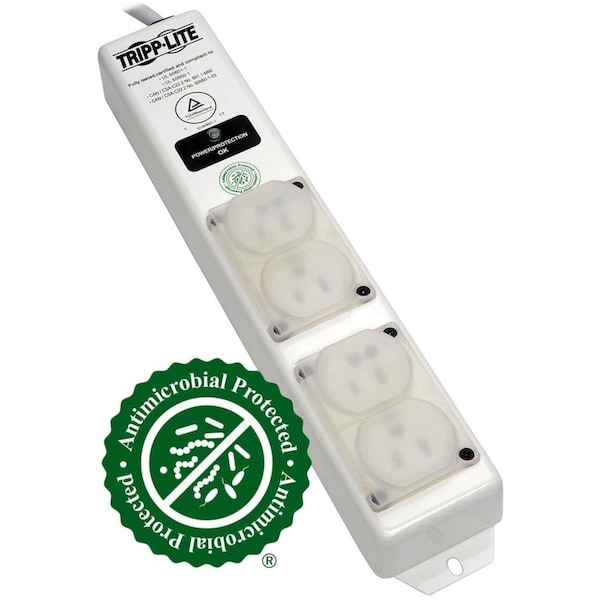

Tripp Lite Outlet Strip, Surge, Hospital Grade, 4 5-15R-HG, 5-15P-HG, 6 ft., White SPS406HGULTRA - main

Outlet Strip, Surge, Hospital Grade, 4 5-15R-HG, 5-15P-HG, 6 ft., White

  • Mfr # SPS406HGULTRA

  • Zoro # G0748522

product price:  $192.99
/ea
Free Shipping & Returns

Key Features

Type
Surge, Hospital Grade
Total Number of Outlets
4
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Cord Length
6 ft.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SPS406HGULTRA
Zoro #
G0748522
UPC #
037332194091
Country of Origin
China

Dimensions

Cord Length
6 ft.
Width
2 1/2 in
Depth
1-1/2"
Cord Length - Ext. Cords and Outlet Strips
6 ft.
Length
13 3/4 in
Height
1 1/2 in
Wire Size
14 AWG
Length (Straight Wireway)
13 3/4 in

Details

Item
Outlet Strip
Type
Surge, Hospital Grade
Total Number of Outlets
4
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
Gauge/Conductor
6/4
Standards
CAN/CSA-C22.2 No. 601.1; CAN/CSA-C22.2 No. 601.1-M90 (Canada); CAN/CSA-C22.2 No. 60950-1 (Canada); UL 60950-1; UL 60601-1; RoHS
Rated Joules
1,410
NEC Cord Designation
SJT
Max. Amps - Ext. Cords and Outlet Strips
15.0
Outlet Center Distance
38.66mm
For Use With
Premium Protection of Personal Computers with Peripherals, Network and Cad/Cam/Cae Workstations, Internetworking Accessories, Telecommunications Systems, Point of Sale Equipment, Audio/Video and Home Theater Systems In Any Home, Office or Industrial Appli
Hz
60 Hz
Medical Grade
Yes
Circuit Breaker
1
Number of Total Outlets - Ext. Cords and Outlet Strips
4
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P-HG
Number of Transformer Outlets
4
Mounting Style
Keyhole
Power Indicator
Yes
Coax Surge Protection
No
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Telephone/Fax Surge Protection
No
GFCI Protected
No
Max. Surge Current
120 kA
Gauge/Conductor - Ext. Cords and Outlet Strips
6/4
Color - Ext. Cords and Outlet Strips
White
Voltage
120VAC
NEMA Receptacle Configuration
(4) NEMA 5-15R-HG
Number of Outlet Rows
1
Housing Material
Metal
Communication Port
None
Number of Outlets
4
Outlet Surge Protection
Yes
Medical Facility Use
Patient Care (UL 60601-1)
NEMA Plug Configuration
NEMA 5-15P-HG
Includes
SPS406HGULTRA Power Strip Owner's Manual
Max. Amps
15A
Material
Metal
Application
Hospital and Medical Facility
USB Charging Port
0
Number of Conductors
3
Trade Designation
SJT
Frequency
60 Hz
Features
Anti-Microbial Protected, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Green Certification or Other Recognition
RoHS
Watts
1800W
Maximum Input Current
15 A
Maximum Frequency
60 Hz
Surge Energy Rating
1410 J
Certifications & Standards
TUV tested to UL 60601-1 and UL 60950-1 (USA), TUV tested to CAN/CSA-C22.2 No. 601.1-M90 and 60950-1-03 (Canada)
Input Voltage
120 V AC
Form Factor
Surface-mountable
Package Contents
SPS406HGULTRA Power Strip, Owner's Manual
Overload Protection
15A resettable circuit breaker
Mounting Holes or Slots
Yes
Package Includes
SPS406HGULTRA UL 60601-1 Medical-Grade Power Strip;Owner's manual
Mounting Details
Includes flanges
Outlet Orientation
Single row of 4
LED Indicators
Proper wiring and surge protection working
Circuit Breaker (amps)
15
Diagnostic LED(s)
Yes
Output Receptacles
(4) 5-15R-HG
Frequency Compatibility
60 Hz
AC Suppression Joule Rating
1410
Material of Construction
Metal
Network (Ethernet) Protection
No
Maximum Surge Amps
60000
Nominal Input Voltage(s) Supported
120V AC

Description

Outlet Strip, Application Hospital and Medical Facility, Housing Material Metal, Total Number of Outlets 4, Max. Amps 15 A, Cord Length 6 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration Hospital Grade NEMA 5-15R, Plug Configuration Hospital Grade NEMA 5-15P, Wire Size 14 AWG, Mounting Style Screw, Color White, Medical Facility Use Patient Care (UL 60601-1), Number of Transformer Outlets 4, Number of Conductors 3, Voltage 120V AC
