  6. Outlet Strip, Surge, Hospital Grade, 6 5-15R-HG, 5-15P-HG, 10 ft., White

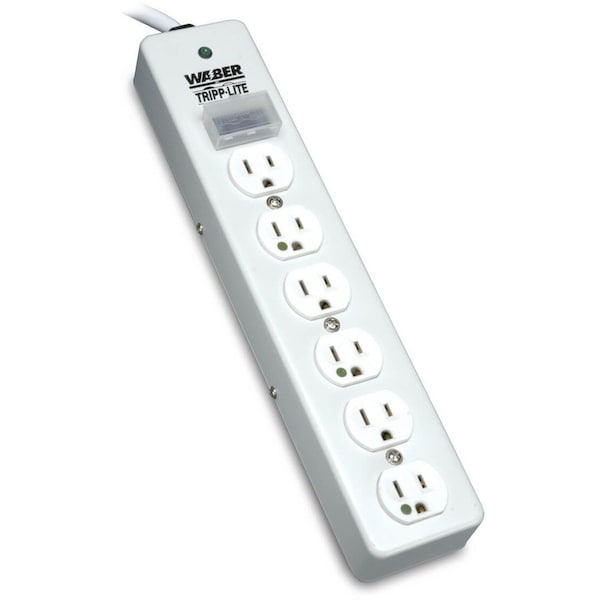

Tripp Lite Outlet Strip, Surge, Hospital Grade, 6 5-15R-HG, 5-15P-HG, 10 ft., White SPS610HGRA - main

Outlet Strip, Surge, Hospital Grade, 6 5-15R-HG, 5-15P-HG, 10 ft., White

  • Mfr # SPS610HGRA

  • Zoro # G4389777

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Type
Surge, Hospital Grade
Total Number of Outlets
6
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SPS610HGRA
Zoro #
G4389777
UPC #
037332167071
Country of Origin
China

Dimensions

Cord Length
10 ft.
Width
2 1/2 in
Depth
1-1/2"
Length
13 3/4 in
Cord Length - Ext. Cords and Outlet Strips
10 ft.
Height
1 1/2 in
Wire Size
14 AWG
Length (Straight Wireway)
13 3/4 in

Details

Item
Outlet Strip
Type
Surge, Hospital Grade
Total Number of Outlets
6
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
Gauge/Conductor
14/3
Standards
UL1449 3rd Edition (AC Suppression); UL1363 (Power Tap); cUL / CSA (Canada)
Color - Ext. Cords and Outlet Strips
Gray
Number of Total Outlets - Ext. Cords and Outlet Strips
6
Housing Material
Metal
Medical Grade
Yes
Medical Facility Use
Outside Patient Care Areas (UL 1363)
Max. Amps
15A
Number of Transformer Outlets
1
NEMA Receptacle Configuration
NEMA 5-15R-HG
Telephone/Fax Surge Protection
No
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
NEMA Plug Configuration
NEMA 5-15P-HG
Number of Outlets
6
Mounting Style
Keyhole
Rated Joules
1,050
Max. Amps - Ext. Cords and Outlet Strips
15.0
Voltage
120VAC
Coax Surge Protection
No
NEMA Plug Configuration - Ext. Cords and Outlet Strips
Right Angle 5-15P-HG
Hz
50/60 Hz
Circuit Breaker
1
Max. Surge Current
19.5 kA
Power Indicator
Yes
For Use With
AC Powered Distribution
Includes
Instruction Manual with Warranty Information
Communication Port
None
Outlet Surge Protection
Yes
Plug Style
Right Angle
Number of Conductors
3
USB Charging Port
0
Application
Hospital and Medical Facility
Frequency
50/60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots, Locking switch cover
Watts
1800W
Power Handling
1800 VA
Maximum Line Current
15 A
Input Voltage
120 V AC
Surge Energy Rating
1050 J
Package Contents
SPS610HGRA 6-Outlets Surge Suppressor, Instruction Manual with Warranty Information
Output Voltage
120 V AC
Diagnostic LED Details
LINE POWER PRESENT (green)
Output Receptacles
(6) 5-15R-HG
Network (Ethernet) Protection
No
Maximum Surge Amps
19500
Diagnostic LED(s)
Yes
Frequency Compatibility
50 / 60 Hz
Nominal Input Voltage(s) Supported
120V AC
Mounting Holes or Slots
Yes
Circuit Breaker (amps)
15
Protection Modes
Includes full normal mode (H-N)
Locking Switch Cover
Locking switch cover
Package Includes
SPS610HGRA Surge Suppressor;Instruction manual with warranty information
AC Suppression Response Time
< 1 ns
Material of Construction
Metal
AC Suppression Joule Rating
1050

Description

Outlet Strip, Application Hospital and Medical Facility, Housing Material Metal, Total Number of Outlets 6, Max. Amps 15 A, Cord Length 10 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration Hospital Grade NEMA 5-15R, Plug Configuration Hospital Grade NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Gray, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC
