- MFR #
- SPS-615-HG
- Zoro #
- G2947131
- UPC #
- 037332100085
- Country of Origin
- China

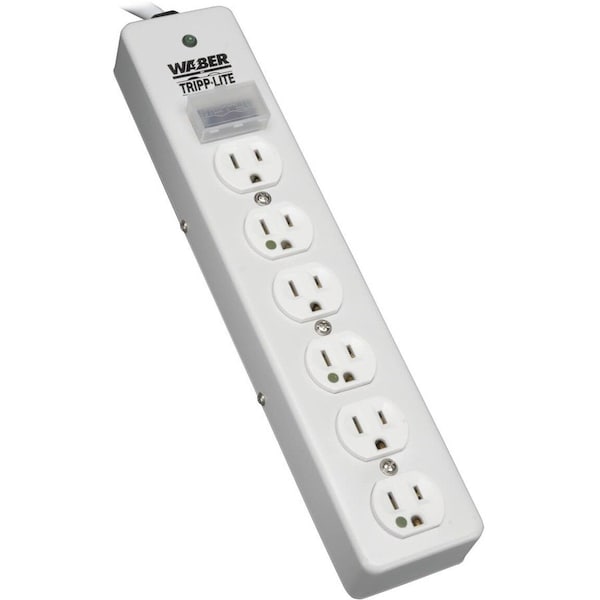

- Item
- Outlet Strip
- Type
- Surge, Hospital Grade
- Total Number of Outlets
- 6
- Receptacle Configuration
- 5-15R-HG
- Plug Configuration
- 5-15P-HG
- Color
- White
- Gauge/Conductor
- 14/3
- Standards
- UL1449 3rd Edition (AC Suppression); UL1363 (Power Tap); cUL / CSA (Canada)
- Number of Outlets
- 6
- Mounting Style
- Keyhole
- NEMA Plug Configuration - Ext. Cords and Outlet Strips
- 5-15P-HG
- Includes
- Instruction Manual with Warranty Information
- For Use With
- AC Powered Distribution
- Power Indicator
- Yes
- Max. Surge Current
- 19.5 kA
- Telephone/Fax Surge Protection
- No
- Medical Facility Use
- Outside Patient Care Areas (UL 1363)
- Voltage
- 120VAC
- Max. Amps - Ext. Cords and Outlet Strips
- 15.0
- Max. Amps
- 15A
- NEMA Plug Configuration
- NEMA 5-15P-HG
- Gauge/Conductor - Ext. Cords and Outlet Strips
- 14/3
- Footnotes
- 11
- Circuit Breaker
- 1
- Medical Grade
- Yes
- NEMA Receptacle Configuration
- NEMA 5-15R-HG
- Rated Joules
- 1,050
- Number of Total Outlets - Ext. Cords and Outlet Strips
- 6
- Coax Surge Protection
- No
- Housing Material
- Metal
- Color - Ext. Cords and Outlet Strips
- White
- Hz
- 50/60 Hz
- Number of Transformer Outlets
- 1
- Outlet Surge Protection
- Yes
- Communication Port
- None
- Number of Conductors
- 3
- USB Charging Port
- 0
- Application
- Hospital and Medical Facility
- Frequency
- 50/60 Hz
- Features
- Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots, Locking switch cover
- Watts
- 1800W
- Certifications & Standards
- UL1449, UL1363, cUL
- Power Handling
- 1800 VA
- Package Contents
- SPS-615-HG 6 Outlets Surge Suppressor, SPS-615-HG Surge Suppressor, Instruction manual with warranty information
- Maximum Line Current
- 15 A
- Input Voltage
- 120 V AC
- Surge Energy Rating
- 1050 J
- Compatibility
- AC power distribution and surge suppression with hospital-grade receptacles and plug where durability and reliability are required. Not for use where NEC requires hospital-grade receptacles
- Output Voltage
- 120 V AC
- Diagnostic LED(s)
- Yes
- Nominal Input Voltage(s) Supported
- 120V AC
- Mounting Holes or Slots
- Yes
- Maximum Surge Amps
- 19500
- Frequency Compatibility
- 50 / 60 Hz
- Protection Modes
- Includes full normal mode (H-N)
- Package Includes
- SPS-615-HG Surge Suppressor;Instruction manual with warranty information
- Locking Switch Cover
- Locking switch cover
- Network (Ethernet) Protection
- No
- AC Suppression Joule Rating
- 1050
- Material of Construction
- Metal
- Diagnostic LED Details
- LINE POWER PRESENT (green)
- AC Suppression Response Time
- < 1 ns
- Output Receptacles
- (6) 5-15R-HG
- Circuit Breaker (amps)
- 15
- Special Features
- Anti microbial,
- Product Type
- Surge Protector Outlet Strip
- Maximum Surge Current
- 19.5 kA
- Rated Energy Absorption
- 1,050 J
- Medical Facility Use UL Rating
- UL 1363
- Number of Circuit Breakers
- 1
- Maximum Current
- 15 A
- Plug Style
- Straight
