  6. Outlet Strip, Surge, Hospital Grade, 6 5-15R-HG, 5-15P-HG, 6 ft., White

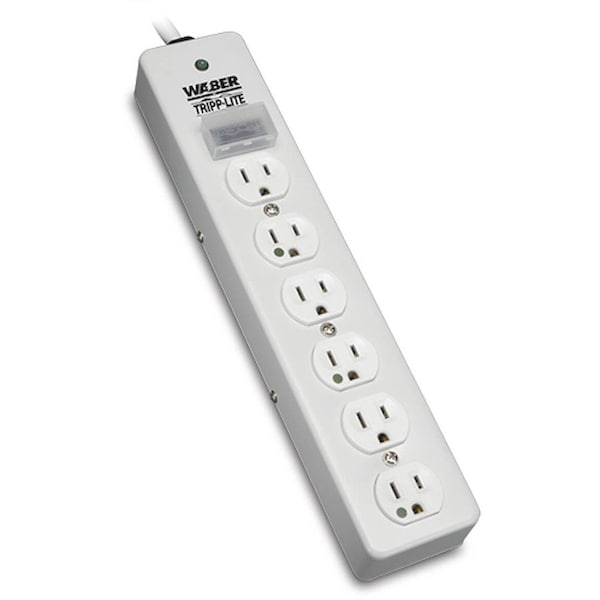

Tripp Lite Outlet Strip, Surge, Hospital Grade, 6 5-15R-HG, 5-15P-HG, 6 ft., White SPS606HGRA - main

Outlet Strip, Surge, Hospital Grade, 6 5-15R-HG, 5-15P-HG, 6 ft., White

  • Mfr # SPS606HGRA

  • Zoro # G4389761

product price:  $131.99
/ea
Free Shipping & Returns

Key Features

Type
Surge, Hospital Grade
Total Number of Outlets
6
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Cord Length
6 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SPS606HGRA
Zoro #
G4389761
UPC #
037332167088
Country of Origin
China

Dimensions

Cord Length
6 ft.
Depth
1-1/2"
Length
13 3/4 in
Cord Length - Ext. Cords and Outlet Strips
6 ft.
Width
2 1/2 in
Height
1 1/2 in
Wire Size
14 AWG
Length (Straight Wireway)
13 3/4 in

Details

Item
Outlet Strip
Type
Surge, Hospital Grade
Total Number of Outlets
6
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
Gauge/Conductor
14/3
Standards
UL 1449 3rd Edition (AC Suppression); UL1363 (Power Tap); cUL / CSA (Canada)
Circuit Breaker
1
Number of Transformer Outlets
1
Number of Outlets
6
Max. Surge Current
19.5 kA
Max. Amps
15A
NEMA Plug Configuration - Ext. Cords and Outlet Strips
Right Angle 5-15P-HG
NEMA Plug Configuration
NEMA 5-15P-HG
Max. Amps - Ext. Cords and Outlet Strips
15.0
Includes
Instruction Manual with Warranty Information
For Use With
AC Powered Distribution
Coax Surge Protection
No
Number of Total Outlets - Ext. Cords and Outlet Strips
6
Power Indicator
Yes
Rated Joules
1,050
Color - Ext. Cords and Outlet Strips
Gray
Medical Facility Use
Outside Patient Care Areas (UL 1363)
NEMA Receptacle Configuration
NEMA 5-15R-HG
Voltage
120VAC
Hz
50/60 Hz
Housing Material
Metal
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Telephone/Fax Surge Protection
No
Medical Grade
Yes
Mounting Style
Keyhole
Communication Port
None
Outlet Surge Protection
Yes
Plug Style
Right Angle
Number of Conductors
3
Application
Hospital and Medical Facility
USB Charging Port
0
Frequency
50/60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots, Locking switch cover
Watts
1800W
Input Voltage
125 V AC
Power Handling
1800 VA
Package Contents
SPS606HGRA 6-Outlets Surge Suppressor, Instruction Manual with Warranty Information
Output Voltage
125 V AC
Surge Energy Rating
1050 J
Maximum Line Current
15 A
Diagnostic LED Details
LINE POWER PRESENT (green)
Protection Modes
Includes full normal mode (H-N)
Locking Switch Cover
Locking switch cover
AC Suppression Response Time
< 1 ns
Network (Ethernet) Protection
No
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(6) 5-15R-HG
Circuit Breaker (amps)
15
AC Suppression Joule Rating
1050
Package Includes
SPS606HGRA Surge Suppressor;Instruction manual with warranty information
Nominal Input Voltage(s) Supported
120V AC
Diagnostic LED(s)
Yes
Maximum Surge Amps
19500
Mounting Holes or Slots
Yes
Material of Construction
Metal

Description

Outlet Strip, Application Hospital and Medical Facility, Housing Material Metal, Total Number of Outlets 6, Max. Amps 15 A, Cord Length 6 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration Hospital Grade NEMA 5-15R, Plug Configuration Hospital Grade NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC
