  11. PDU, Local Metered, 5-15/20R, 5-20P, L5-20P, 15 ft., Silver

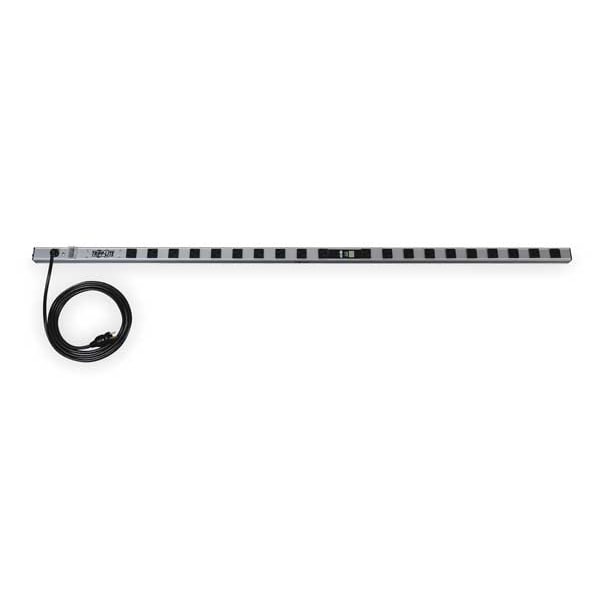

Tripp Lite PDU, Local Metered, 5-15/20R, 5-20P, L5-20P, 15 ft., Silver PDUMV20 - main

PDU, Local Metered, 5-15/20R, 5-20P, L5-20P, 15 ft., Silver

  • Mfr # PDUMV20

  • Zoro # G0523564

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Type
Local Metered
Receptacle Configuration
5-15/20R
Plug Configuration
5-20P, L5-20P
Cord Length
15 ft.
Color
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDUMV20
Zoro #
G0523564
UPC #
037332132543
Country of Origin
China

Dimensions

Cord Length
15 ft.
Height
1 1/4 in
Length
60 in
Width
1 3/4 in
Depth
1.5"
Length (Straight Wireway)
60 in
Overall Length
1 5/8 in
Overall Height
60 1/2 in
Overall Width
1 1/2 in
Manufacturers Warranty Length
2 yr

Details

Item
PDU
Type
Local Metered
Receptacle Configuration
5-15/20R
Plug Configuration
5-20P, L5-20P
Color
Silver
Standards
CE; EAC; FCC Part 15 Class A; RoHS Compliant; TAA Compliant
Circuit Breaker
No
Mounting Style
Vertical Rackmount/0U
Metered
Non-Metered
Max. Amps
20A
GFCI Protected
No
Housing Material
Aluminum
Voltage
120V
Special Features
0U Vertical Rackmount, Convenient and Safe Covered On/Off Switch, Digital Current Monitoring Display
Number of Outlets
28
Includes
Mounting Hardware, Spare Mounting Buttons
Receptacle Type
NEMA 5-15/20R
Power Indicator
Yes
Phase
Single
Plug Type
NEMA 5-20P, NEMA L5-20P
Outlet Surge Protection
No
NEMA Plug Configuration
NEMA 5-20P; NEMA L5-20P
Amps
16A
Hz
50/60 Hz
NEMA Receptacle Configuration
(28) NEMA 5-15/20R
Frequency
50/60 Hz
Features
Covered On/Off Switch
Watts
2.03kW (127V), 1.92kW (120V), 1.6kW (100V)
Certifications & Standards
UL60950-1, CAN/CSA C22.2 No. 60950-1-03
Input Voltage
120 V AC
Power Rating (Watt)
2400 W
Receptacle Detail
28 x NEMA 5-15/20R
Output Voltage
120 V AC
Mount Type
Rack-mountable
Mounting Orientation
Vertical
Package Contents
PDUMV20 PDU Metered 120V 20A 28 Outlet, (1) L5-20P to 5-20P plug adapter, Mounting hardware, Six protective outlet covers, Instruction manual with warranty information
Maximum Output Voltage
120V AC
Minimum Operating Temperature
32 Degrees F
Maximum Input Voltage
120V AC
Maximum Current
16 A
Maximum Operating Temperature
104 Degrees F
Built-In Circuit Breaker
Yes
Maximum Input Amps
16
PDU Type
Local Metered
Form Factors Supported
Vertical
Overload Protection
20A circuit breaker
Output Receptacles
(28) 5-15/20R
PDU Input Voltage
120
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Output Capacity Details
1.92kW (120V) / 16A total capacity; 16A max per outlet
Material of Construction
Aluminum
Frequency Compatibility
50 / 60 Hz
PDU Form Factor
Vertical (0U)
Operating Elevation (ft.)
0-10,000
Front Panel LCD Display
Digital meter reports PDU output current in amps
Input Phase
Single-Phase
Operating Temperature Range
32° to 104°F (0° to 40°C)
Package Includes
PDUMV20 Local Metered Vertical PDU;(1) L5-20P to 5-20P plug adapter;Mounting hardware and spare mounting buttons;Instruction manual with warranty information
Output Nominal Voltage
120V

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 28, Receptacle Type NEMA 5-15/20R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units Not Applicable, Mounting Location Vertical Rack, Plug Type NEMA 5-20P, NEMA L5-20P, Features Covered On/Off Switch, Housing Material Aluminum, Includes Mounting Hardware, Spare Mounting Buttons, Manufacturers Warranty Length 2 yr, Maximum Current 16 A
