  11. PDU, Local Metered, 5-15R, 5-15P, 15 ft., Silver

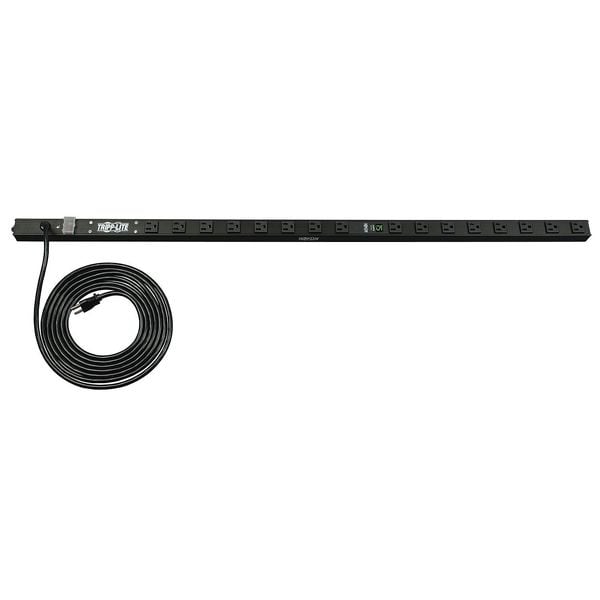

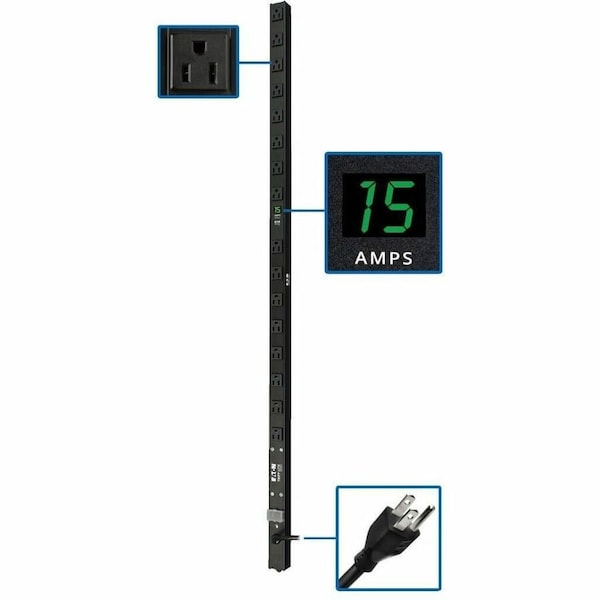

Tripp Lite PDU, Local Metered, 5-15R, 5-15P, 15 ft., Silver PDUMV15 - main

PDU, Local Metered, 5-15R, 5-15P, 15 ft., Silver

  • Mfr # PDUMV15

  • Zoro # G2853532

product price: $174.99
/ea
Free Shipping & Returns

Key Features

Type
Local Metered
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
15 ft.
Color
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDUMV15
Zoro #
G2853532
UPC #
037332132536
Country of Origin
China

Dimensions

Cord Length
15 ft.
Width
1 1/2 in
Length
48 in
Height
3 in
Depth
1.5"
Length (Straight Wireway)
48 in
Overall Length
1 5/8 in
Overall Height
48 1/2 in
Overall Width
1 1/2 in
Manufacturers Warranty Length
2 yr

Details

Item
PDU
Type
Local Metered
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Silver
Standards
CE; EAC; FCC Part 15 Class A; RoHS Compliant; TAA Compliant
Number of Outlets
16
Includes
Mounting Hardware, Spare Mounting Buttons
GFCI Protected
No
Max. Amps
15A
Circuit Breaker
Yes
Phase
Single
Receptacle Type
NEMA 5-15R
Housing Material
Metal
Voltage
120V
Special Features
0U Vertical Rackmount, Convenient and Safe Covered On/Off Switch, Digital Current Monitoring Display
Mounting Style
Vertical Rackmount/0U
Metered
Non-Metered
Outlet Surge Protection
No
Plug Type
NEMA 5-15P
Power Indicator
Yes
Hz
50/60 Hz
NEMA Plug Configuration
NEMA 5-15P
NEMA Receptacle Configuration
NEMA 5-15R
Frequency
50/60 Hz
Features
Covered On/Off Switch
Watts
1.52kW (127V), 1.44kW (120V), 1.2kW (100V)
Output Voltage
120 V AC
Receptacle Detail
16 x NEMA 5-15R
Mounting Orientation
Vertical
Certifications & Standards
UL60950-1, CAN/CSA C22.2 No. 60950-1-03
Mount Type
Rack-mountable
Package Contents
PDUMV15 PDU Metered 120V 15A 16 Outlet, PDUMV15 Metered Vertical PDU, Mounting hardware, 6 outlet safety covers, Owner's manual with warranty information
Input Voltage
120 V AC
Power Rating (VA)
1800 VA
Maximum Input Voltage
120V AC
Maximum Current
12 A
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
32 Degrees F
Built-In Circuit Breaker
Yes
Maximum Output Voltage
120V AC
Maximum Input Amps
12
Form Factors Supported
Vertical (0U) mounting in rack enclosures
PDU Input Voltage
120
Output Capacity Details
1.44kW (120V) / 12A total capacity; 12A max per outlet
Front Panel LCD Display
Digital meter reports PDU output current in amps
Operating Temperature Range
32° to 104°F (0° to 40°C)
Overload Protection
15A circuit breaker
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Operating Elevation (ft.)
0-10,000
Input Phase
Single-Phase
PDU Type
Local Metered
Frequency Compatibility
50 / 60 Hz
Package Includes
PDUMV15 Local Metered Vertical PDU;Mounting hardware and spare mounting buttons;Owner's manual with warranty information
PDU Form Factor
Vertical (0U)
Output Nominal Voltage
120V
Output Receptacles
(16) 5-15R
Material of Construction
Metal

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Silver, Cord Length 15 ft, Number of Outlets 13, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units Not Applicable, Mounting Location Vertical Rack, Plug Type NEMA 5-15P, Features Covered On/Off Switch, Housing Material Metal, Includes Mounting Hardware, Spare Mounting Buttons, Manufacturers Warranty Length 2 yr, Maximum Current 12 A
