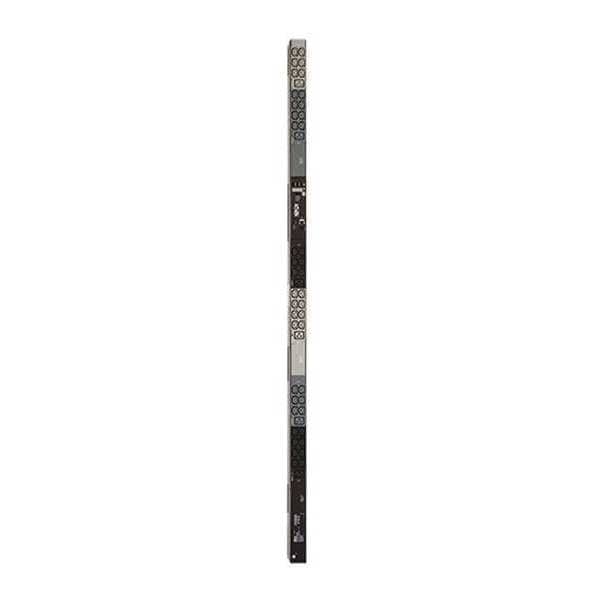

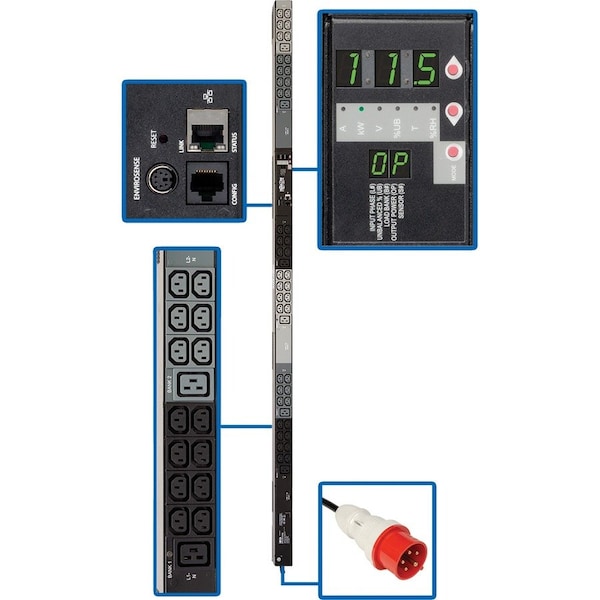

Tripp Lite PDU, Monitored, (42) C13, (6) C19, IEC-309 16/20A RED (3P+N+E), 6 ft. PDU3XVN6G20 - main

PDU, Monitored, (42) C13, (6) C19, IEC-309 16/20A RED (3P+N+E), 6 ft.

  • Mfr # PDU3XVN6G20

  • Zoro # G5178699

product price:  $1,087.99
/ea
Additional $75.00 delivery surcharge applies per item.
See details

Key Features

Type
Monitored
Receptacle Configuration
(42) C13, (6) C19
Plug Configuration
IEC-309 16/20A RED (3P+N+E)
Cord Length
6 ft.
Standards
UL60950-1; CSA; NOM; CE (EN 60950-1); CE / FCC Class A; TAA Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3XVN6G20
Zoro #
G5178699
UPC #
037332182975
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
6 ft.
Depth
2.9"
Width
2.2"
Height
70"
Rack Height
0U
Input Cord Length (ft.)
6
Unit Dimensions (hwd / in.)
70.000 x 2.170 x 2.860

Details

Item
PDU
Type
Monitored
Receptacle Configuration
(42) C13, (6) C19
Plug Configuration
IEC-309 16/20A RED (3P+N+E)
Standards
UL60950-1; CSA; NOM; CE (EN 60950-1); CE / FCC Class A; TAA Compliant
NEMA Plug Configuration
IEC-309 16/20A RED (3P+N+E)
Max. Amps
16A
Phase
3
NEMA Receptacle Configuration
(42) C13; (6) C19
Housing Material
Metal
Metered
Yes
Power Indicator
Yes
Number of Outlets
48
Hz
50/60 Hz
Voltage
400/230V
Includes
Mounting Brackets
Mounting Style
Vertical Rackmount/0U
Frequency
50/60 Hz
Features
Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting
Watts
11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V)
Mounting Orientation
Vertical
Input Voltage Range
360 V AC - 415 V AC
TAA Compliant
Yes
Product Series
Monitored
Package Contents
Monitored PDU3XVN6G20 48-Outlets PDU, Plug-lock C14 and C20 Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
Product Type
PDU
Mount Type
Rack-mountable
Input Current
16 A
Power Rating (Watt)
11.50 kW
Receptacle Detail
6 x IEC 60320 C19, 42 x IEC 60320 C13
Product Name
Monitored PDU3XVN6G20 48-Outlets PDU
Output Voltage
415 V AC, 400 V AC, 380 V AC, 360 V AC
Plug/Connector Type
IEC 60309 16/20A RED (3P+N+E)
PDU Type
Monitored
Product Compliance
CE (Europe); FCC Part 15 Class A (USA)
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Package Includes
Monitored PDU with pre-installed mounting buttons;Plug-lock C14 and C20 cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
Output Capacity Details
11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A max (10A CE) max per C13 outlet
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Switches
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button
Relative Humidity
5-95% non condensing
Product Certifications
EN 60950-1; CSA (Canada); NOM (Mexico); UL 60950-1
Reported Load Segments
Supports local monitoring of current for each input phase (L1, L2 and L3) and output current for each output load bank (16A balanced max per B1, B2 and B3); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1); L2-N feeds dark-gray outlets (B2); L3-N feeds light-gray outlets (B3)
Output Nominal Voltage
208-240V
Storage Temperature Range
-30°C to +60°C (-22°F to +140°F)
Output Receptacles
(42) C13; (6) C19
PDU Plug Type
IEC-309 16/20A RED (3P+N+E)
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Frequency Compatibility
50 / 60 Hz
PDU Input Voltage
360; 380; 400; 415
Operating Temperature Range
0C ~ 50C (32F ~ 122F)
Recommended Electrical Service
Three-phase 16A 360-415V service
Operating Elevation (ft.)
0-10,000
PDU Form Factor
Vertical (0U)
Input Phase
3-Phase
Material of Construction
Metal
Maximum Input Amps
16
Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
High Availability PDU Features
Remote Network Notifications
Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Description

PDU,3-Ph,Monitored,11.5kW,52 C13,6C19,0U
