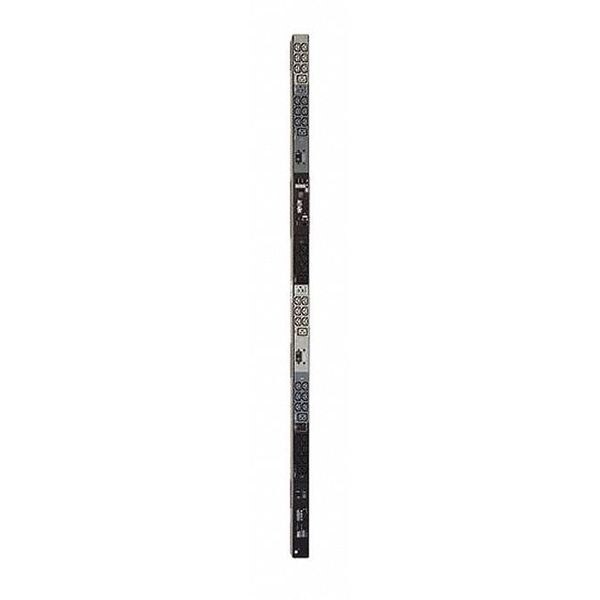

- Item
- PDU
- Type
- Monitored
- Receptacle Configuration
- 5-15R
- Plug Configuration
- L21-30P
- Standards
- RoHS Compliant; TAA Compliant
- Power Indicator
- Yes
- Voltage
- 208V
- Mounting Style
- Vertical Rackmount/0U
- Number of Outlets
- 45
- Housing Material
- Metal
- NEMA Receptacle Configuration
- (3) NEMA 5-15/20R; (36) NEMA C13; (6) C19
- NEMA Plug Configuration
- NEMA L21-30P
- Max. Amps
- 24A
- Frequency
- 50/60 Hz
- Network (RJ-45)
- Yes
- Receptacle Detail
- 3 x NEMA 5-15/20R, 36 x IEC 60320 C13, 6 x IEC 60320 C19
- Input Voltage
- 230 V AC
- Input Current
- 24 A
- Output Voltage
- 208 V AC, 120 V AC
- Product Type
- PDU
- PDU Type
- Monitored
- Power Rating (Watt)
- 8600 W
- Package Contents
- Monitored PDU3VN6L2130 45-Outlets PDU, Spare Installation Buttons (2 9mm / 4 6mm), Rack Mounting Brackets, Owner's Manual
- Mounting Orientation
- Vertical
- Operating Elevation (ft.)
- 0-10,000
- Output Receptacle Details
- 5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
- Current Measurement Accuracy (Amps)
- +/-1%
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
- Output Capacity Details
- 8.6kW (208V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Frequency Compatibility
- 50 / 60 Hz
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
- Material of Construction
- Metal
- Operating Temperature Range
- 32 to 122F (0C to 50C)
- Input Phase
- 3-Phase
- Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Maximum Input Amps
- 24
- Power Measurement Accuracy (Watts)
- +/-1%
- Output Nominal Voltage
- 120; 208
- Package Includes
- Monitored rackmount PDU with pre-installed mounting buttons;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
- Output Receptacles
- (3) 5-15/20R; (36) C13; (6) C19
- Overload Protection
- 3 20A circuit breakers, one per output load bank
- Reported Load Segments
Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)
- PDU Form Factor
- Vertical (0U)
- Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); 3 additional multi-color LEDs offer power availability information for each pair of output load banks (Bank 1&4 / Bank 2&5 / Bank 3&6): GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
