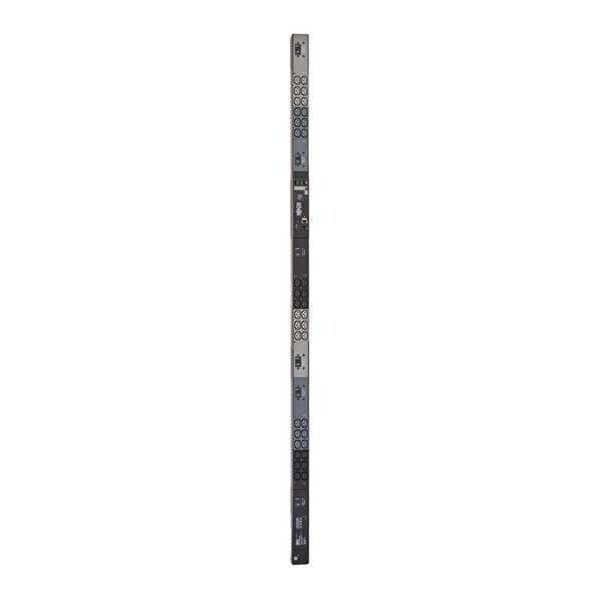

- Item
- PDU
- Type
- Monitored
- Receptacle Configuration
- C13
- Plug Configuration
- IEC-60309 60A BLUE (3P+E)
- Standards
- RoHS Compliant; TAA Compliant
- NEMA Plug Configuration
- IEC-309 60A BLUE (3P+E)
- Mounting Style
- Vertical Rackmount/0U
- Power Indicator
- Yes
- Number of Outlets
- 36
- Housing Material
- Metal
- Max. Amps
- 45A
- Voltage
- 200/208/240V
- NEMA Receptacle Configuration
- C13
- Frequency
- 50/60 Hz
- Power Rating (Watt)
- 18.70 kW
- Receptacle Detail
- 36 x IEC 60320 C13
- Mounting Orientation
- Vertical
- Input Voltage
- 230 V AC
- Package Contents
- Monitored Rackmount PDU with Pre-Installed Mounting Buttons , 36x C13/C14 Plug-lock cable retention sleeves, Spare installation buttons (2 9mm / 4 6mm), Rack mounting brackets, Owner's manual
- PDU Type
- Monitored
- Mount Type
- Rack-mountable
- Input Voltage Range
- 200 V AC - 240 V AC
- Product Type
- PDU
- Input Current
- 45 A
- Output Capacity Details
- 18.7kW (240V), 17.9kW (230V), 17.1 (220V), 16.2 (208V), 15.6kW (200V) total capacity; 26A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 12A max per C13 outlet
- Reported Load Segments
- Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1 & B4); L2-L3 feeds dark-gray outlets (B2 & B5); L3-L1 feeds light-gray outlets (B3 & B6)
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B6) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
- Output Nominal Voltage
- 200; 208; 240
- PDU Form Factor
- Vertical (0U)
- Material of Construction
- Metal
- Input Phase
- 3-Phase
- Maximum Input Amps
- 45
- Operating Elevation (ft.)
- 0-10,000
- Output Receptacles
- (36) C13
- Storage Temperature Range
- 5 to 140F (-15C to 60C)
- Power Measurement Accuracy (Watts)
- +/-1%
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Overload Protection
- 6 20A circuit breakers, 1 per outlet bank
- Current Measurement Accuracy (Amps)
- +/-1%
- Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
- Operating Temperature Range
- 32 to 122F (0C to 50C)
- Frequency Compatibility
- 50 / 60 Hz
- Package Includes
- Monitored rackmount PDU with pre-installed mounting buttons;36 C13/C14 Plug-lock cable retention sleeves;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
