  11. PDU, Rack Mounted, (48) C13, (6) C19, 2.5 ft.

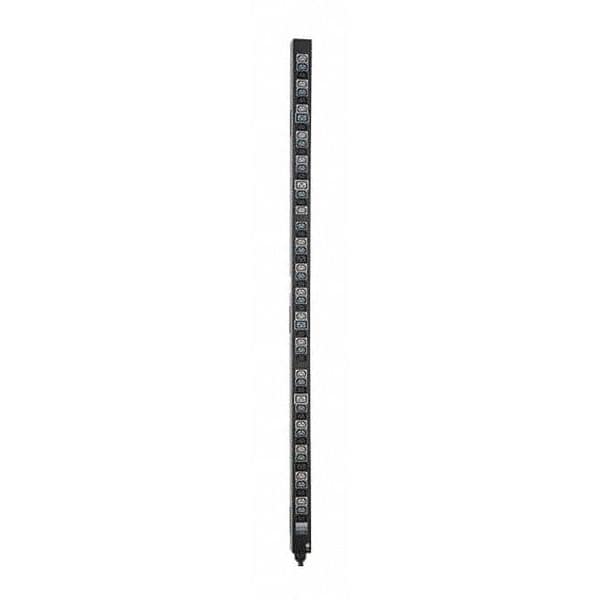

Tripp Lite PDU, Rack Mounted, (48) C13, (6) C19, 2.5 ft. PDU3V20D354B - main

PDU, Rack Mounted, (48) C13, (6) C19, 2.5 ft.

  • Mfr # PDU3V20D354B

  • Zoro # G5179216

product price: $595.99
/ea
Item requires special delivery charges. A $80.00 per item surcharge will be applied.

Key Features

Type
Rack Mounted
Cord Length
2.5 ft.
Standards
UL60950-1; CSA; NOM; FCC Class A
Height
70"
Width
2.2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3V20D354B
Zoro #
G5179216
UPC #
037332190086
Country of Origin
China

Dimensions

Cord Length
2.5 ft.
Height
70"
Width
2.2"
Depth
2.2"

Details

Item
PDU
Type
Rack Mounted
Receptacle Configuration
(48) C13, (6) C19
Standards
UL60950-1; CSA; NOM; FCC Class A
Hz
50/60 Hz
Includes
7 Conductor Input Plug
Number of Outlets
54
NEMA Receptacle Configuration
(48) C13; (6) C19
Housing Material
Metal
Phase
3
Voltage
208V
Max. Amps
35A
Mounting Style
Vertical Rackmount/0U
Frequency
50/60 Hz
Watts
12.6kW
Input Voltage Range
200 V AC - 240 V AC
Product Type
PDU
Power Rating (Watt)
12.60 kW
Input Current
35 A
Input Voltage
230 V AC
Mount Type
Rack-mountable
Mounting Orientation
Vertical
Output Voltage
230 V AC, 240 V AC, 200 V AC, 220 V AC, 208 V AC
Receptacle Detail
48 x IEC 60320 C13, 6 x IEC 60320 C19
Output Nominal Voltage
200; 208; 220; 230; 240
Form Factors Supported
Vertical rackmount installation supported with toolless mounting in button-mount compatible racks
Accessories (Included)
Mounting hardware
PDU Form Factor
Vertical (0U)
Maximum Input Amps
35
Package Includes
PDU3V20D354B 8.6/12.6kW 3-Phase Vertical PDU Outlet Strip
Operating Temperature Range
0 to 50C (32 to 122F)
Frequency Compatibility
50 / 60 Hz
Operating Elevation (ft.)
0-10,000
Input Cord Details
Includes 7 conductor input plug for use with compatible Tripp Lite ATS PDU products only
Material of Construction
Metal
Input Phase
3-Phase
Output Receptacles
(48) C13; (6) C19
Output Capacity Details
Supports up to 12.6kW total output; 20A max per output phase (L1-L2, L2-L3, L3-L1) when used with 35A max 208V input ATS models (such as PDU350AT6H50); Supports up to 8.6kW total output; 13.9A max per output phase (L1-L2, L2-L3, L3-L1) when used with 24A max 208V input ATS models (such as PDU330AT6L2130, PDU330AT6L1530 and PDU330AT6L15); All configurations: 16A max per C19 outlet, 12A max per C13 outlet
Storage Temperature Range
-15C to 60C (5 to 140F)

Description

PDU,3-Ph,ATS,8.6kW,48 C13,6 C19,0U
