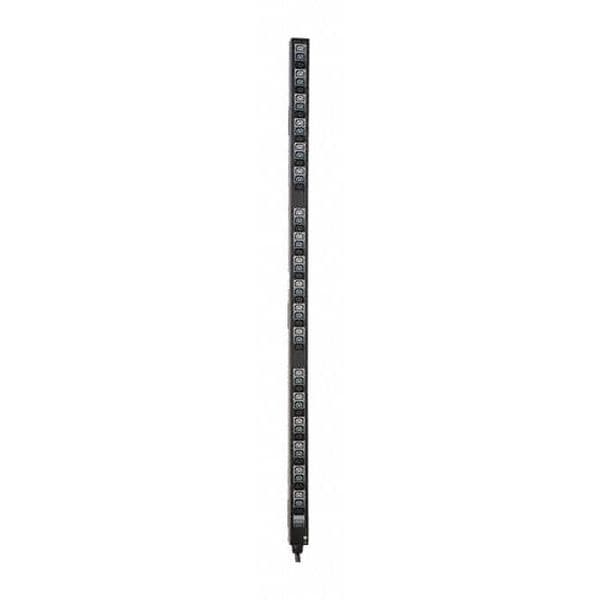

Tripp Lite PDU, Rack Mounted, C13, 2.5 ft. PDU3V20D354 - main

PDU, Rack Mounted, C13, 2.5 ft.

  • Mfr # PDU3V20D354

  • Zoro # G5179231

product price: $602.99
/ea
Item requires special delivery charges. A $75.00 per item surcharge will be applied.

Key Features

Type
Rack Mounted
Cord Length
2.5 ft.
Standards
UL60950-1; CSA; NOM; FCC Class A
Depth
2.2"
Voltage
208V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3V20D354
Zoro #
G5179231
UPC #
037332190451
Country of Origin
China

Dimensions

Cord Length
2.5 ft.
Depth
2.2"
Width
2.2"
Height
70"

Details

Item
PDU
Type
Rack Mounted
Receptacle Configuration
C13
Standards
UL60950-1; CSA; NOM; FCC Class A
Voltage
208V
Housing Material
Metal
Phase
3
Number of Outlets
54
Mounting Style
Vertical Rackmount/0U
Hz
50/60 Hz
Max. Amps
35A
Includes
7 Conductor Input Plug
NEMA Receptacle Configuration
C13
Frequency
50/60 Hz
Watts
12.6kW
Product Type
PDU
Power Rating (Watt)
12.60 kW
Input Current
35 A
Output Voltage
230 V AC
Receptacle Detail
54 x IEC 60320 C13
Mounting Orientation
Vertical
Mount Type
Rack-mountable
Input Voltage
230 V AC
Form Factors Supported
Vertical rackmount installation supported with toolless mounting in button-mount compatible racks
Input Cord Details
Includes 7 conductor input plug for use with compatible Tripp Lite ATS PDU products only
Material of Construction
Metal
Operating Temperature Range
0 to 50C (32 to 122F)
Maximum Input Amps
35
Frequency Compatibility
50 / 60 Hz
Input Phase
3-Phase
Output Capacity Details
Supports up to 12.6kW total output; 20A max per output phase (L1-L2, L2-L3, L3-L1) when used with 35A max 208V input ATS models (such as PDU350AT6H50); Supports up to 8.6kW total output; 13.9A max per output phase (L1-L2, L2-L3, L3-L1) when used with 24A max 208V input ATS models (such as PDU330AT6L2130, PDU330AT6L1530 and PDU330AT6L15); All configurations: 12A max per C13 outlet
Storage Temperature Range
-15C to 60C (5 to 140F)
Operating Elevation (ft.)
0-10,000
Output Nominal Voltage
200; 208; 220; 230; 240
PDU Form Factor
Vertical (0U)
Output Receptacles
(54) C13
Accessories (Included)
Mounting Hardware
Package Includes
PDU3V20D354 8.6/12.6kW 3-Phase Vertical PDU Outlet Strip

Description

PDU,3-Ph,ATS,8.6kW,Accessory,54 C13,0U
