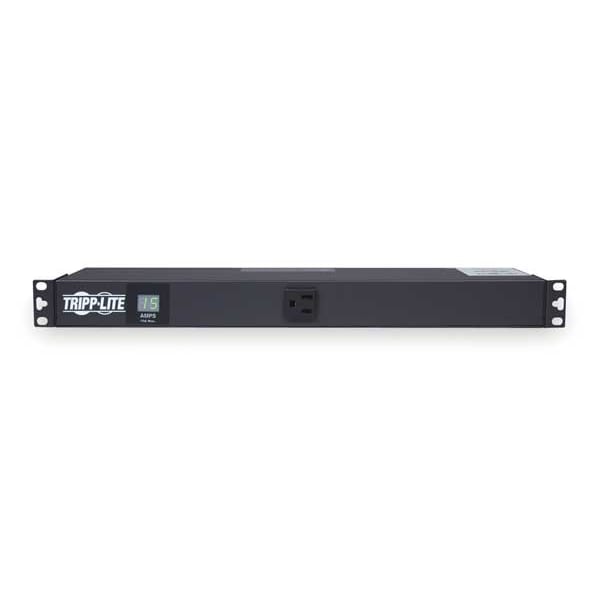

Tripp Lite PDU, Surge, 5-15R, 5-15P, 15 ft., Black PDUMH15 - main

PDU, Surge, 5-15R, 5-15P, 15 ft., Black

  • Mfr # PDUMH15

  • Zoro # G1771375

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Type
Surge
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
15 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDUMH15
Zoro #
G1771375
UPC #
037332132529
Country of Origin
China

Dimensions

Cord Length
15 ft.
Height
1 3/4 in
Length
4 1/2 in
Width
17 1/2 in
Depth
4.5"
Length (Straight Wireway)
4 1/2 in
Overall Height
1 3/4 in
Overall Width
17 1/2 in
Overall Length
4 1/2 in
Manufacturers Warranty Length
2 yr
Minimum Required Rack Depth (inches)
7.5

Details

Item
PDU
Type
Surge
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Standards
CE; EAC; FCC Part 15 Class A; RoHS Compliant; Trade Agreements Act
Metered
Non-Metered
Phase
Single
Outlet Surge Protection
No
GFCI Protected
No
Power Indicator
Yes
Housing Material
Metal
Circuit Breaker
No
Number of Outlets
13
Special Features
Digital Current Monitoring Display indicates total PDU power consumption in amps
Max. Amps
15A
Voltage
120VAC
Plug Type
NEMA 5-15P
Mounting Style
Horizontal Rackmount/1U
Includes
Digital Ammeter
Receptacle Type
NEMA 5-15R
NEMA Plug Configuration
NEMA 5-15P
Hz
50/60 Hz
Outlet Center Distance
30.20 mm Rear
NEMA Receptacle Configuration
(13) NEMA 5-15R
Frequency
50/60 Hz
Features
Digital Current Monitoring Display
Watts
1.52kW (127V), 1.44kW (120V), 1.2kW (100V)
Mount Type
Rack-mountable
Input Voltage
120 V AC
Certifications & Standards
UL60950-1, CAN/CSA C22.2 No. 60950-1-03
Receptacle Detail
13 x NEMA 5-15R
Mounting Orientation
Vertical
Output Voltage
120 V AC
Package Contents
PDUMH15 PDU Metered 120V 15A 13 Outlet, PDUMH15 Metered rackmount PDU, Owner's manual with warranty information
Maximum Output Voltage
120V AC
Built-In Circuit Breaker
Yes
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Maximum Input Voltage
120V AC
Rack Units
1
Maximum Current
12 A
Output Nominal Voltage
120V
Package Includes
PDUMH15 Local Metered rackmount PDU;Owner's manual with warranty information
Material of Construction
Metal
PDU Input Voltage
120
Operating Elevation (ft.)
0-10,000
PDU Type
Local Metered
Form Factors Supported
1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Outlets Measurement (Center to Center)
Rear Side = 30.20mm
Front Panel LCD Display
Digital display reports total PDU output current in amps
Grounding
Rear grounding lug
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Maximum Input Amps
12
Overload Protection
15A Breaker
Output Receptacles
(13) 5-15R
Operating Temperature Range
32° to 104°F (0° to 40°C)
Input Phase
Single-Phase
Frequency Compatibility
50 / 60 Hz
PDU Form Factor
Horizontal (1U)
Output Capacity Details
1.44kW (120V) / 12A total capacity; 12A max per outlet

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 13, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Horizontal Rack, Plug Type NEMA 5-15P, Features Digital Current Monitoring Display, Housing Material Metal, Manufacturers Warranty Length 2 yr, Maximum Current 12 A, Maximum Operating Temperature 104 Degrees F, Maximum Output Voltage 120V AC
