  11. PDU, Switched, (21) C13, (3) C19, CS8365C, 10 ft.

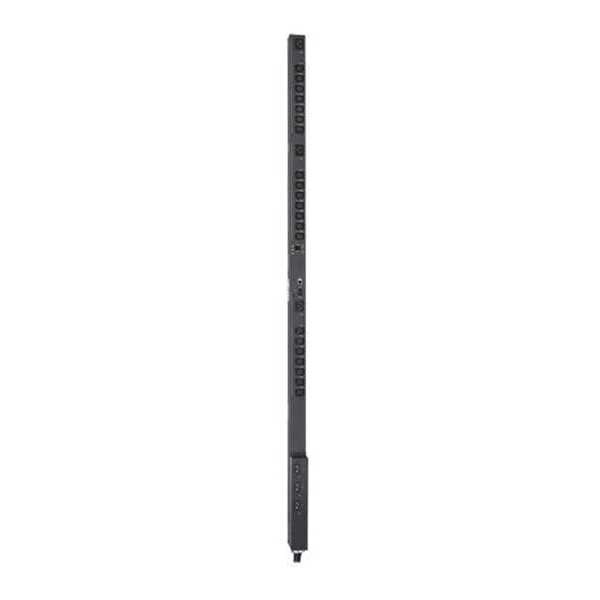

Tripp Lite PDU, Switched, (21) C13, (3) C19, CS8365C, 10 ft. PDU3VSR10H50 - main

PDU, Switched, (21) C13, (3) C19, CS8365C, 10 ft.

  • Mfr # PDU3VSR10H50

  • Zoro # G5178918

product price: $1,163.99
/ea
Free Shipping & Returns

Key Features

Type
Switched
Receptacle Configuration
(21) C13, (3) C19
Plug Configuration
CS8365C
Cord Length
10 ft.
Standards
RoHS Compliant; TAA Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3VSR10H50
Zoro #
G5178918
UPC #
037332149770
Country of Origin
China

Dimensions

Cord Length
10 ft.
Width
2.2"
Height
70"
Depth
3.3"

Details

Item
PDU
Type
Switched
Receptacle Configuration
(21) C13, (3) C19
Plug Configuration
CS8365C
Standards
RoHS Compliant; TAA Compliant
Mounting Style
Vertical Rackmount/0U
Housing Material
Metal
NEMA Plug Configuration
HUBBELL CS8365C 50A
Voltage
208V
NEMA Receptacle Configuration
(21) C13; (3) C19
Number of Outlets
24
Max. Amps
35A
Frequency
50/60 Hz
Receptacle Detail
3 x IEC 60320 C19, 21 x IEC 60320 C13
Package Contents
Switched PDU3VSR10H50 24-Outlets 12.6kW PDU, Plug Retention Plates, Rack Mounting Brackets, Owner's Manual
Output Voltage
208 V AC
Input Voltage
230 V AC
Mounting Orientation
Vertical
PDU Type
Switched
Mount Type
Rack-mountable
Product Type
PDU
Power Rating (Watt)
12.60 kW
PDU Form Factor
Vertical (0U)
Power Measurement Accuracy (Watts)
+/-1%
Maximum Input Amps
35
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Overload Protection
3 20A circuit breakers, 1 per outlet bank
Front Panel LCD Display
Digital display reports output load level in amps separately for each output phase and each individual output receptacle; Can also be used to scroll the configured IP address
Storage Temperature Range
5 to 122F (-15 to 50C)
Reported Load Segments
Supports local monitoring of current for each output phase (20A max per L1-L2, L2-L3, L3-L1) and for each output receptacle; BANK "L1" is powered by L1-L2 (outlets 1-8); BANK "L2" is powered by L2-L3 (outlets 9-16); BANK "L3" is powered by L3-L1 (outlets 17-24)
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
Output Nominal Voltage
208
Input Phase
3-Phase
Output Capacity Details
12.6kVA (208V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility
50 / 60 Hz
Operating Elevation (ft.)
0-10,000
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
Current Measurement Accuracy (Amps)
+/-1%
Front Panel LEDs
Set of 3 LEDs (L1, L2, L3) indicate the output load segment the digital current display is reporting; Individual LED for L1, L2, L3 will also flash to indicate that the display is reporting current level for one of the outlets in that load bank; One additional LED per output receptacle indicates power ON/OFF status for that outlet
Package Includes
Switched rackmount PDU with pre-installed mounting buttons;Plug retention plates;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
Output Receptacles
(21) C13; (3) C19
Material of Construction
Metal

Description

PDU,3-Ph,Switched,12.6kW,21 C13,3 C19,0U
