Shop LEVITON

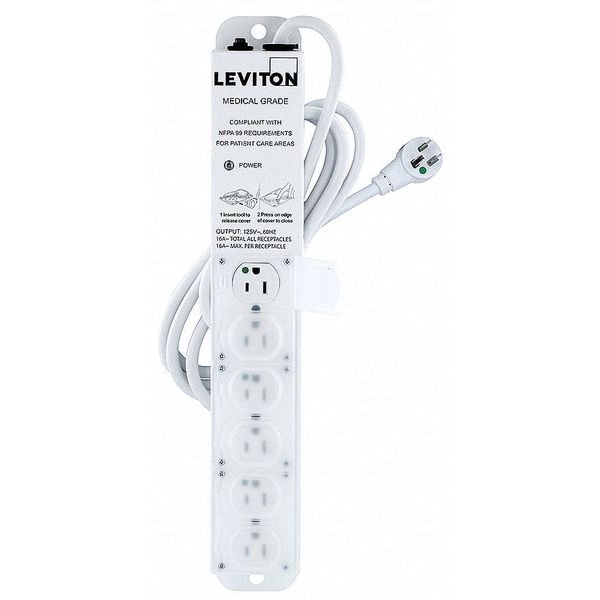

Outlet Strip, Medical Grade, 6 5-15R, 5-15P, 7 ft., White

  • Mfr # 5306M-1N7

  • Zoro # G204186750


product price:  $132.99
/ea
Free Shipping & Returns

Key Features

Type
Medical Grade
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5306M-1N7
Zoro #
G204186750
UPC #
078477611920
Country of Origin
Mexico

Dimensions

Cord Length
7 ft.
Length
16 7/8 in
Height
1 21/32 in
Width
2 19/32 in
Outlet Strip Length
16 7/8 in
Wire Size
14 AWG

Details

Item
Outlet Strip
Type
Medical Grade
Number of Outlets
6
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
Gauge/Conductor
14/3
Standards
NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Application
Medical
Trade Designation
SJT
Special Features
Special Purpose Relocatable Power Tap (SPRPT)
Max. Amps
15 A
Hz
60 Hz
Medical Grade
Yes
Finish
Powder Coated
Voltage
125V AC
NEC Cord Designation
#14/3 SJT
NEMA Receptacle Configuration
5-15R
Outlet Surge Protection
No
Mounting Style
Screw
NEMA Plug Configuration
5-15P
Housing Material
Metal
Medical Facility Use
Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1)
Power Indicator
Yes
Rated Energy Absorption
644 J
Product Type
Outlet Strip
Communication Port
None
Number of Conductors
3
Frequency
60 Hz
Maximum Surge Current
27 kA
Medical Facility Use UL Rating
UL 1363A, UL 1449, UL 60601-1
Plug Style
Straight
Noise Attenuation
6dB to -29dB (100kHz to 100MHz)
Number of Outlet Rows
6
Includes
Locking Cover
Maximum Current
15 A

Description

Outlet Strip, Application Medical, Housing Material Metal, Total Number of Outlets 6, Max. Amps 15 A, Cord Length 7 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 6, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Screw, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1), Number of Transformer Outlets 0, Number of Conductors 3, Voltage 125V AC, Length 16 7/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
