  11. PDU, Switched, (6) C13, (12) C19, CS8365C, 6 ft.

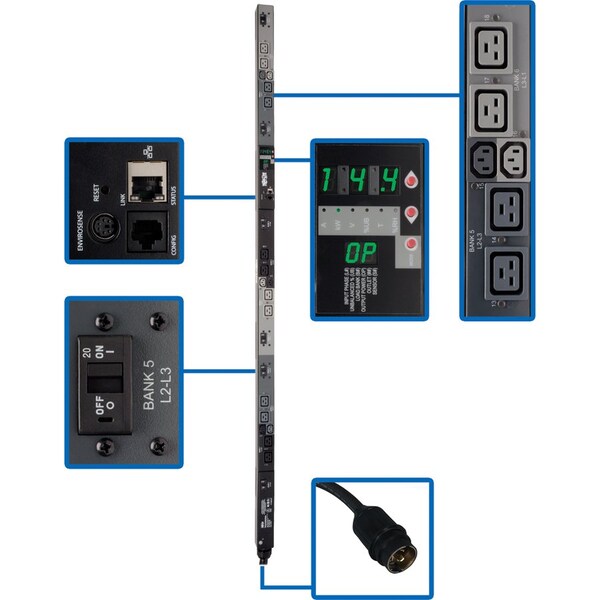

Tripp Lite PDU, Switched, (6) C13, (12) C19, CS8365C, 6 ft. PDU3VSR6H50A - main

PDU, Switched, (6) C13, (12) C19, CS8365C, 6 ft.

  • Mfr # PDU3VSR6H50A

  • Zoro # G5178769

product price: $1,892.99
/ea
Additional $75.00 delivery surcharge applies per item.
See details

Key Features

Type
Switched
Receptacle Configuration
(6) C13, (12) C19
Plug Configuration
CS8365C
Cord Length
6 ft.
Standards
UL 60950-1 lass A (Emissions); NOM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3VSR6H50A
Zoro #
G5178769
UPC #
037332170682
Country of Origin
China

Dimensions

Cord Length
6 ft.
Height
70"
Depth
2.5"
Width
2.2"

Details

Item
PDU
Type
Switched
Receptacle Configuration
(6) C13, (12) C19
Plug Configuration
CS8365C
Standards
UL 60950-1 lass A (Emissions); NOM
Green Environmental Attribute
Yes
NEMA Plug Configuration
HUBBELL CS8365C 50A
Includes
Switched Rackmount PDU with Pre-Installed Mounting Buttons6 x C13/C14 Plug-lock Inserts12 x C19/C20 Plug-lock InsertsSpare Installation ButtonsRack Mounting BracketsOwner's Manual
Number of Outlets
18
Circuit Breaker
Yes
Mounting Style
Vertical Rackmount/0U
NEMA Receptacle Configuration
(6) C13; (12) C19
Voltage
208V
Max. Amps
40A
Housing Material
Steel
Frequency
50/60 Hz
Mouting Style
Rack-mountable
Green Certification or Other Recognition
RoHS
Network (RJ-45)
Yes
Mount Type
Rack-mountable
Input Voltage
230 V AC
Certifications & Standards
UL 60950-1, Class A (Emissions), NOM
Power Rating (Watt)
16.20 kW
Input Current
45 A
PDU Type
Switched
Product Type
PDU
Output Voltage
220 V AC
Package Contents
Switched Rackmount PDU with Pre-Installed Mounting Buttons, 6 x C13/C14 Plug-lock Inserts, 12 x C19/C20 Plug-lock Inserts, Spare Installation Buttons, Rack Mounting Brackets, Owner's Manual
Receptacle Detail
12 x IEC 60320 C19, 6 x IEC 60320 C13
Mounting Orientation
Vertical
Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
Storage Temperature Range
5 to 140F (-15 to 60C)
Power Measurement Accuracy (Watts)
+/-1%
Overload Protection
6 20A circuit breakers, 1 per outlet bank
PDU Form Factor
Vertical (0U)
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Operating Temperature Range
32 to 122F (0-50C)
Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Input Phase
3-Phase
Operating Elevation (ft.)
0-10,000
Reported Load Segments
Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1, B4); L2-L3 feeds dark-gray outlets (B2, B5); L3-L1 feeds light-gray outlets (B3, B6)
Frequency Compatibility
50 / 60 Hz
Maximum Input Amps
40
Current Measurement Accuracy (Amps)
+/-1%
Material of Construction
Steel
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Output Receptacles
(6) C13; (12) C19
Package Includes
Switched rackmount PDU with pre-installed mounting buttons;6 C13/C14 and 12 C19/C20 Plug-lock inserts;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
Output Nominal Voltage
208
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
Output Capacity Details
14.4kW (208V) total capacity; 23.1A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Description

PDU,3-Ph,Switched,14.4kW,6 C13,12 C19,0U
