  11. Power Conditioner, 15A Max Amps, 120V Input Voltage, 120V Output Voltage, 1,800 W Output Watts

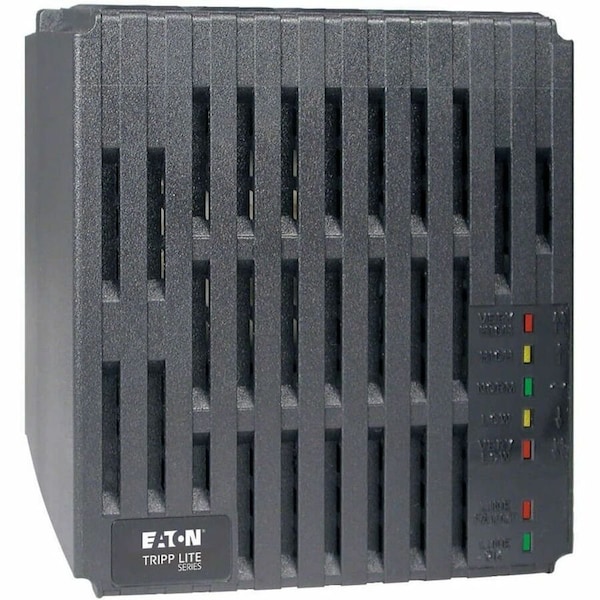

Tripp Lite Power Conditioner, 15A Max Amps, 120V Input Voltage, 120V Output Voltage, 1,800 W Output Watts LC 1800 - main

Power Conditioner, 15A Max Amps, 120V Input Voltage, 120V Output Voltage, 1,800 W Output Watts

  • Mfr # LC 1800

  • Zoro # G2208823

product price: $287.99
/ea
Free Shipping & Returns

Key Features

Max. Amps
15A
Input Voltage
120V
Output Voltage
120V
Power Rating
1.8kVA
Hardwired/Corded
Corded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC 1800
Zoro #
G2208823
UPC #
037332040039
Country of Origin
China

Dimensions

Height
7 in
Depth
7 in
Width
6 in
Cord Length
7 ft

Details

Item
Power Conditioner
Max. Amps
15A
Input Voltage
120V
Output Voltage
120V
Power Rating
1.8kVA
Output Watts
1,800 W
Hardwired/Corded
Corded
Phase
1
Voltage Regulation %
-10, +16%, +9%
Number of Outlets

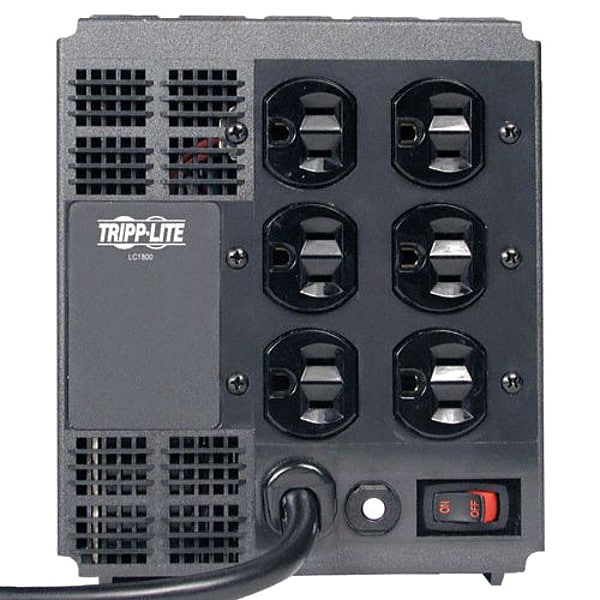

6
NEMA Plug Configuration
5-15P
NEMA Receptacle Configuration
5-15R
Features
LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status
Mounting Type
Wall Mount
Standards
C-UL, NOM (Mexico), RoHS, UL Listed, UL1012
Form Factors Supported
Small Tower
Voltage Regulation Description
Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 112V~127V are passed through unchanged.
Brownout Correction
Input voltages between 111V (+/-3V) and 103V (+/-3V) are boosted by 9%.
Front Panel LEDs
7 LEDs show incoming voltage status, protection present and line fault conditions
Output Capacity Details
Agency de-rated per NFPA 70 to 12A, 1440W continuous and up to 15A, 1800W intermittent
Severe Brownout Correction
Input voltages below 102V (+/-3V) are boosted by 19%.
Overvoltage Correction
Input voltages over 128V (+/-3V) are reduced by 10%
EMI / RFI AC Noise Suppression
80 dB
Protection Type
Brownout, EMI / RFI, Over Voltage, Surge
Certifications & Standards
IEEE 587 / ANSI C62.41, UL1012 (USA), cUL1012 (Canada), NOM (Mexico)
Product Name
1800W Mini Tower Line Conditioner
Additional Information
Voltage Regulation: +10%/-12%, Input voltages over 128V are reduced by 9.6%, Input voltages between 103 and 112V are boosted by 8.9%, Input voltages below 102V are boosted by 18.8%, Network grade AC surge suppressionMaintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.
Load Capacity (VA)
1800 W
Form Factor
Mini-tower
Package Contents
1800W Mini Tower Line Conditioner, LC1800 Line Conditioner, Mounting hardware, Instruction manual
Maximum Current
15 A
Voltage Regulation
9%; -10%; 19%
Surge Suppression Rating
1,440 J
Housing Material
Plastic
Manufacturer Warranty
2 yr Limited
Frequency
60 Hz

Description

Power Conditioner, Mounting Type Wall Mount, Max. Amps 15A, Input Voltage 120V AC, Output Voltage 120V, Power Rating 1.8kVA, Output Watts 1,800 W, Corded, Width 6 in, Depth 7 in, Height 7 in, Phase Single, Voltage Regulation Percent -10, +16 Percent, +9 Percent, Cord Length 7 ft, Number of Outlets 6, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Features LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status
